Original stock sale E800-DTU(433L20-485)-V8 transparent RS485 interface 3km Industrial Wireless Digital Radio

E800-DTU(433L20-485)-V8

Model:E800-DTU(433L20-485)-V8

Manufacturer:EBYTE

Package:module

Detail

Brief Introduction


E800-DTU is a wireless data transceiver with the function of digital data processing, digital modulation and demodulation, FEC, balanced soft decision, etc.. Wireless data transceiver provides transparent RS232 / RS485 interface, different with the analog FM transceiver plus MODEM analog digital transceiver.


Wireless data transceiver working as a communication medium, as well as the fiber, microwave, the same line, has a certain scope of application: it provides some special conditions in the private network monitoring signal real-time, reliable data transmission, with the features of low cost, convenient installation and maintenance, diffraction ability, flexible network structure, range of coverage, suitable for the occasion of dot and scatter, complex geographical environment , connecting with PLC, RTU, rain gauge, level gauge and other data terminals.


Features


Transmission power is optional, all technical indicators have met the European industry standards.

Use temperature compensation circuit, the frequency stability is better than ±2PPM.

With operating temperature range: -40 ℃ ~ +85 ℃, adapting to a variety of harsh working environment.

All with aluminum alloy shell, compact, easy installation, good heat dissipation; perfect shielding design, good electromagnetic compatibility and strong anti-interference ability. Power reverse protection, over-protection, antenna surge protection and other multiple protection functions, greatly increase the reliability of the transceiver.

Powerful software features, all parameters can be programmed to set: such as power, frequency, air data rate, address ID, etc.

Ultra-low power consumption, standby current is 20mA (the power consumption of power saving mode and sleep mode is lower), the transmitting current ≤ 350A (1W).

With watchdog and accurate time layout, in the event of an exception, the module will automatically restart and continue to follow the previous parameters to operate.

All the core components are imported originally , compared with the current imports of digital transceiver , we are the most advanced, most cost effective and the smallest one.


Specifications


AttributeAttribute value
ANSM-Part#ANSM-E800-DTU(433L20-485)-V8
Transmit Power20dBm
Distance3km
Communication InterfaceRS485
RF InterfaceSMA-K
Supply Voltage8~28V
Power Interface3.81 terminal block
Frequency433MHz

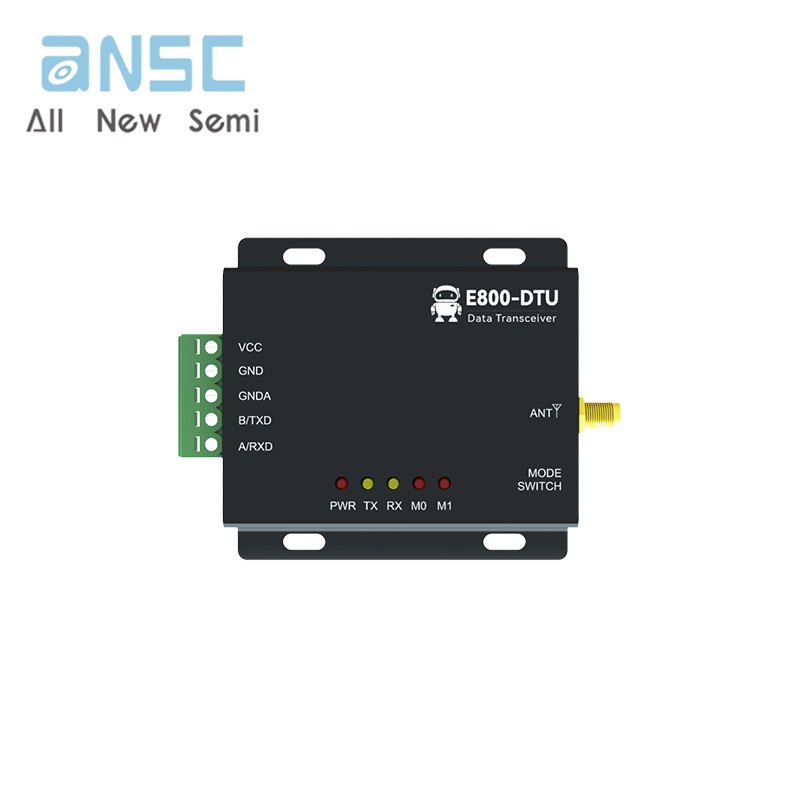

Actual product photos


E800-DTU(433L20-485)-V8

E800


Product Data Book:


搜狗高速浏览器截图20240803113059

搜狗高速浏览器截图20240803113109

搜狗高速浏览器截图20240803113113

搜狗高速浏览器截图20240803113118

搜狗高速浏览器截图20240803113123


For more product information, please download the PDF
