Product Descriptions

The A12S75 is an integrated system-on-a-chip (SoC) platform that targets high-performance sports cameras. A12S75 chips provide a 792 MHz ARM Cortex-A9 CPU and an advanced digital signal processing (DSP) subsystem with a 64-Mpixel image sensor pipeline (ISP) and a high-definition (HD) H.264 codec engine.

Product Features

• Embedded ARM Cortex-A9 792 MHz CPU

• More than 480 MPixel/s processing rate ◦ 64-MPixel maximum resolution

• Fish-eye lens dewarping and barrel distortion correction

• Advanced motion-compensated sharpening

• Advanced dynamic range (WDR and HDR) engine

• H.264 BP/MP/HP Level 5.1 and MJPEG codecs

• Encode performance up to 1080p100

• 114 General Purpose Input/Output (GPIO) short-height pins

• 404-pin TFBGA package (15 mm x 15 mm)

• 28-nm CMOS Low Power (LP) technology

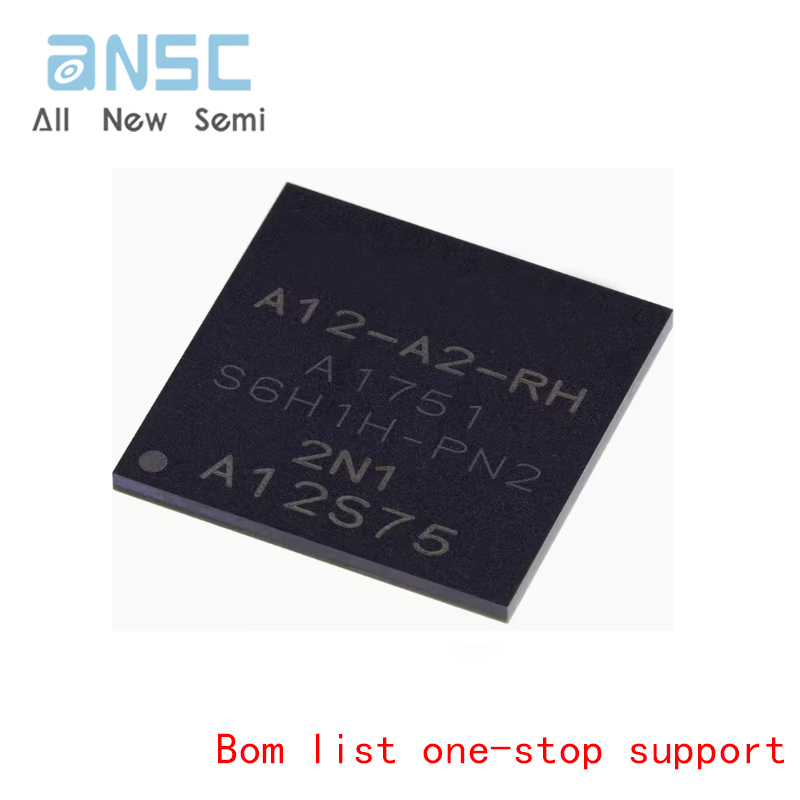

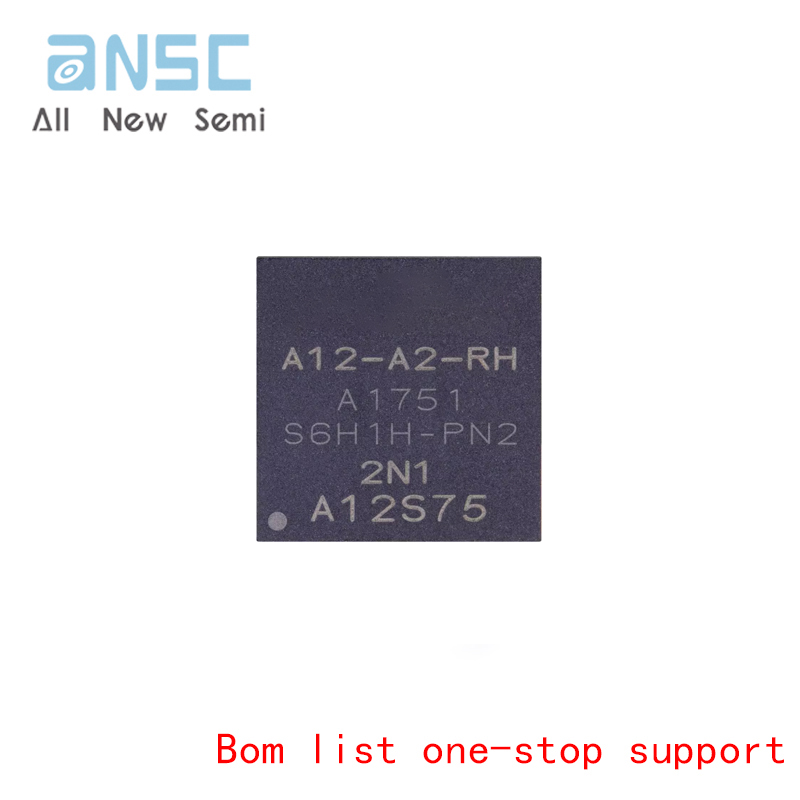

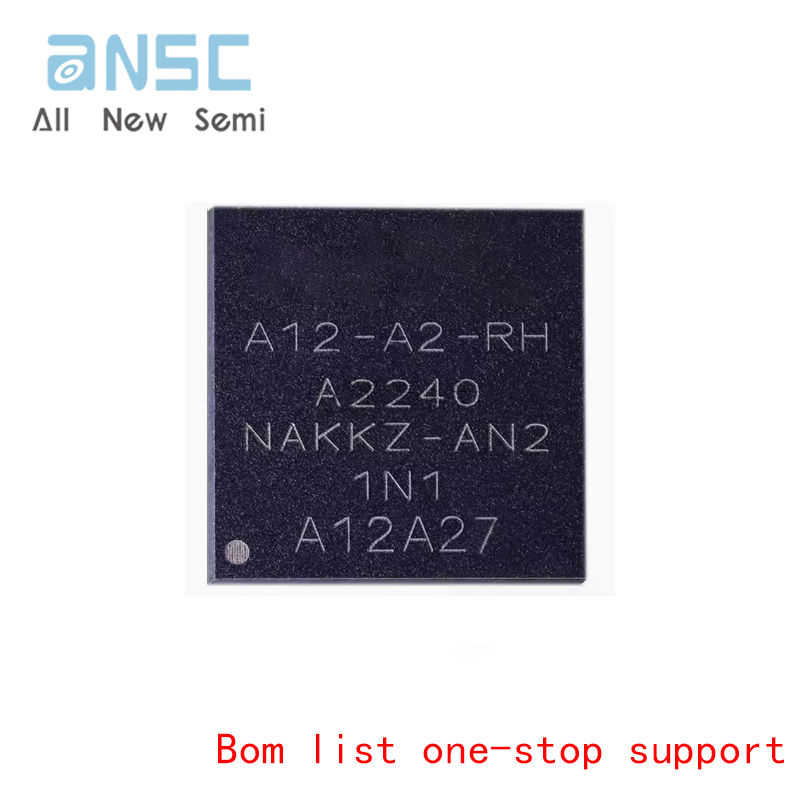

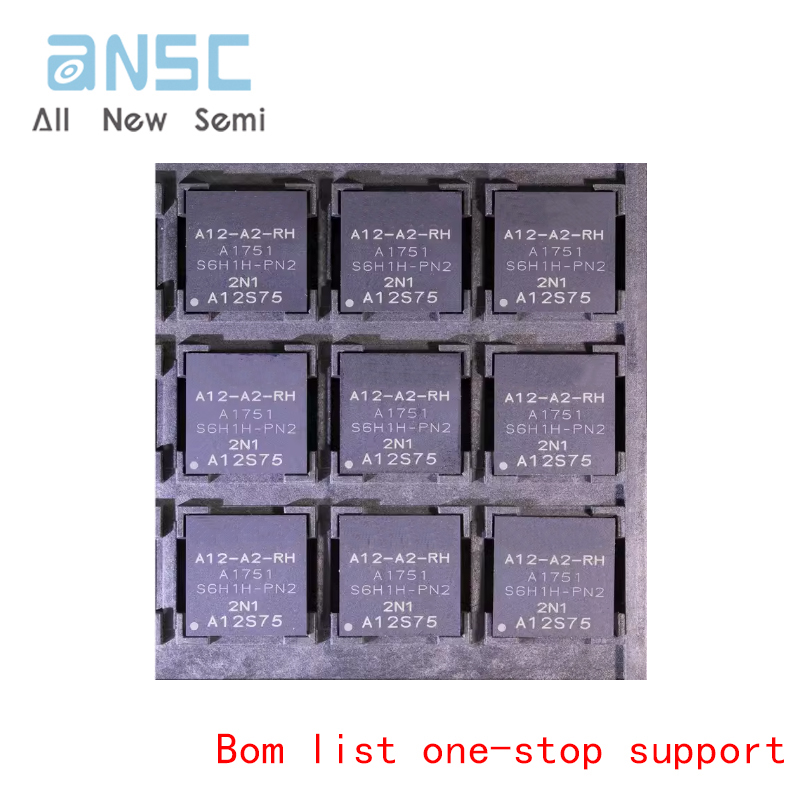

Actual product photos

Product Data Book：

For more product information, please download the PDF
