GENERAL DESCRIPTION

LC1209 is a three-terminal positive regulator with an output voltage of 5.0V and output current up to 100mA. The device features a typical output tolerance of ±5%. And its input voltage can stand a voltage as high as 60V. LC1209 includes high accuracy voltage reference, error amplifier, TSD circuit and output driver module.

LC1209 offers thermal shut down functions to assure the stability of chip and power system.

LC1209 is available in SOT89-3,TO-92 and TO-220 power packages。

Product Features

 Maximum output current up to 100mA

 Output voltage tolerances of ±5% over the temperature range

 Internal thermal over-temperature protection

 High input voltage (up to 60V)

 Low Power Consumption:80uA（Typ.）

 Available in plastic TO-92 and plastic TO-220 packages

 No external components

Product APPLICATIONS

 Battery Powered equipment

 Communication equipment

 Audio/Video equipment

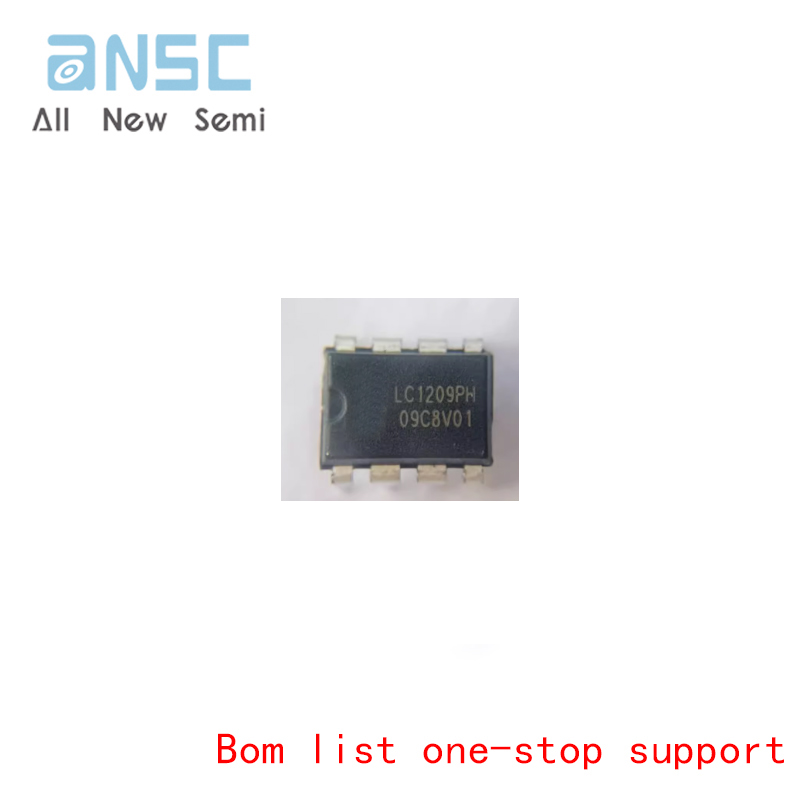

Actual product photos
