Product Descriptions

The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from TE Connectivity. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers.

The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0% over the compensated range. The sensor operates from single supply of either 3.3 or 5.0VDC and requires a single external component for proper operation.

The rugged ceramic transducer is available in side port, top port, and manifold mount and can measure gage or differential pressure from 2 to 30 inches H2O. The 1/8” barbed pressure ports mate securely with 3/32” ID tubing.

Product Features

 Inches H2O Pressure Ranges

 PCB Mountable

 Digital Output

 Barbed Pressure Ports

Product Applications

 Blocked Filter Detection

 Altitude and Airspeed Measurements

 Medical Instruments

 Fire Suppression System

 Panel Meter

 Air Movement/Environmental Controls

 Pneumatic Controls

Specifications

 PCB Mounted Digital Output Transducer

 Combination Temperature and Pressure

 Pressure Ranges from 2 to 30 inches H2O

 I 2C or SPI Protocol

 Differential & Gage

 Temperature Compensated

 3.3 or 5.0 VDC Supply Voltage

 Low Power Option Available (standby < 1µA)

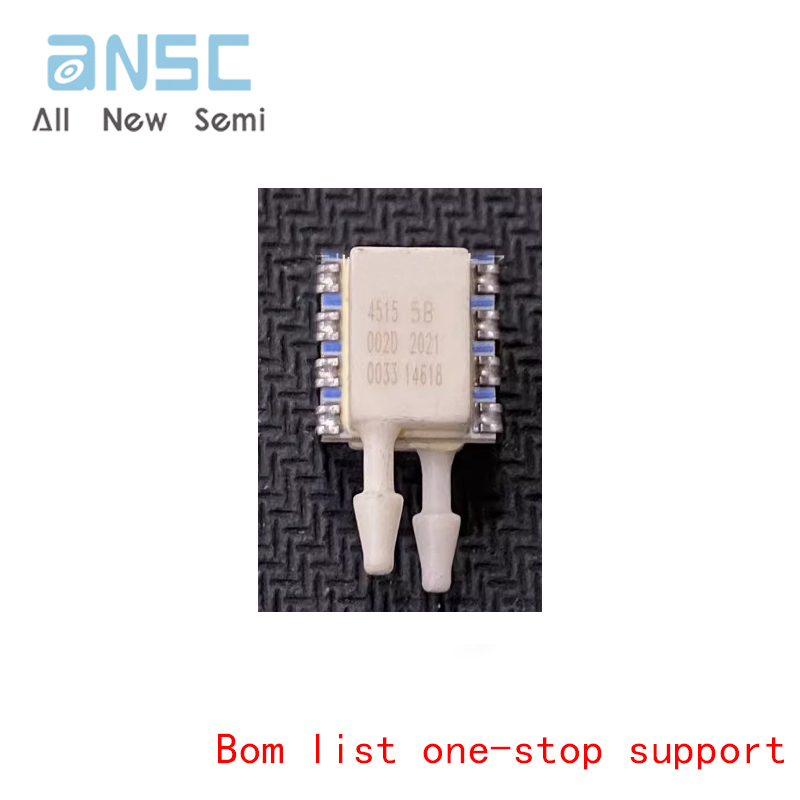

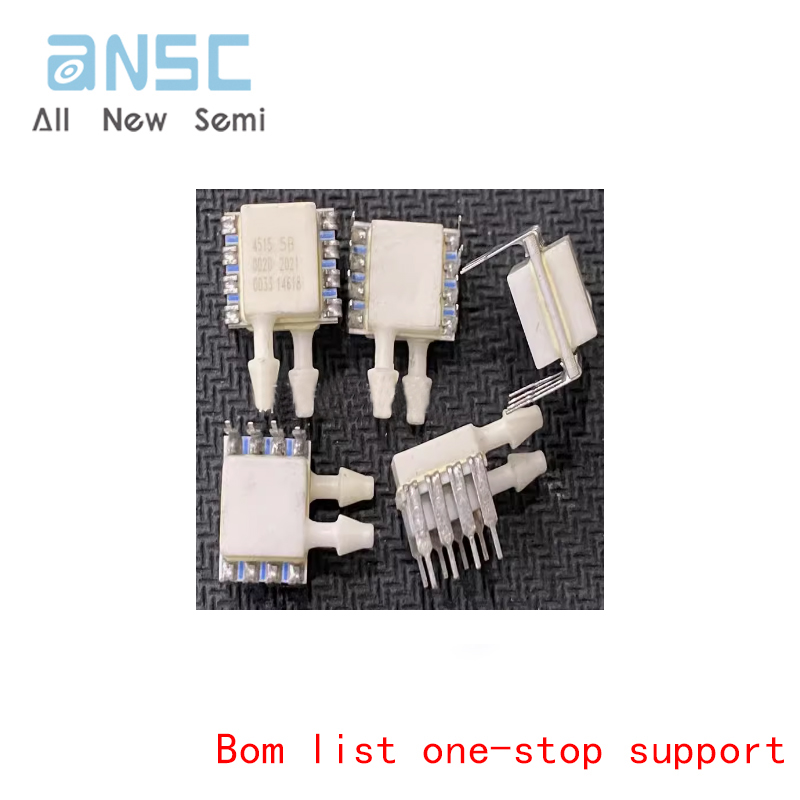

Actual product photos

Product Data Manual:

For more product information, please download the PDF
