Product Descriptions

RK292X is a low power, high performance processor solution for low-end tablet, Android Portable GPS and other digital multimedia applications, and integrates single-core Cortex-A9 with separately Neon and FPU coprocessor, and also with 128KB L2 Cache.

Many embedded powerful hardware engines provide optimized performance for high-end application. RK292X supports almost full-format video decoder by 1080p@60fps, also support H.264/MVC/VP8 encoder by 1080p@30fps, high-quality JPEG encoder/decoder and special image preprocessor and postprocessor.

Embedded 3D GPU makes RK292X completely compatible with OpenGL ES1.1 and 2.0, OpenVG1.1 etc. Special 2D hardware engine with MMU will maximize display performance.

RK292X has high-performance external memory interface (DDR3/LVDDR3) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

This document will provide guideline on how to use RK292X correctly and efficiently.

In them, the chapter 1 and chapter 2 will introduce the features, block diagram, signal descriptions and system usage of RK292X, the chapter 3 through chapter 45 will describe the full function of each module in detail.

Product Features

•  Single-core ARM Cortex-A9 processor is a high-performance, low-power, cached application processor

•  Full implementation of the ARM architecture v7-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation

•  Superscalar, variable length, out-of-order pipeline with dynamic branch prediction, 8-stage pipeline

•  Include VFPv3 hardware to support single and double-precision add, subtract, divide, multiply and accumulate, and square root operations

•  Integrated timer and watchdog timer in CPU

•  Integrated 32KB L1 instruction cache , 32KB L1 data cache, 4-wat set associative

•  128KB unified L2 Cache

•  coresight debug solution

•  One isolated voltage domain to support DVFS

•  Maximum frequency can be up to 670MHz@1.08v,125C and 1.0GHz@1.2v,25C

1.1.2 Memory Organization

•  Internal on-chip memory

•  8KB internal SRAM

•  External off-chip memory①

•  DDR3-800, 16bits data width, 2 ranks, 1GB(max) address space per rank

•  LVDDR3-800, 16bits data width, 2 ranks, 1GB(max) address space per rank

•  Async/Toggle/Sync Nand Flash(include LBA Nand), 8bits data width,4 banks

1.1.3 Internal Memory

•  Internal BootRom

•  Support system boot from the following device :

•  8bits Nand Flash

•  SPI interface

•  eMMC interface

•  Support system code download by the following interface:

•  USB OTG

•  UART2

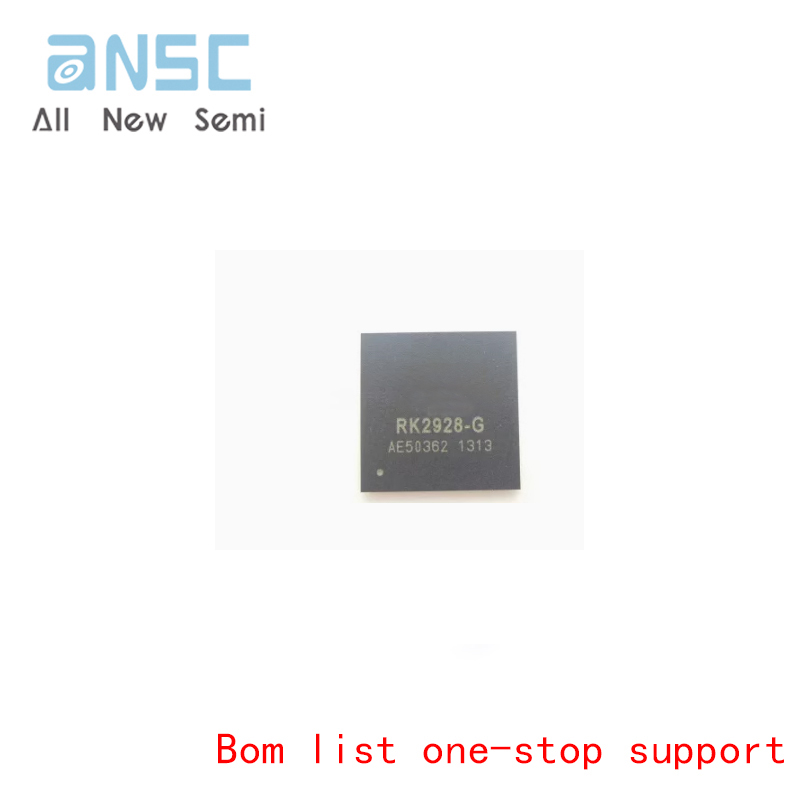

Actual product photos
