Product Descriptions

RK3328 is a high-performance Quad-core application processor designed for Smart STB (Set Top Box) including OTT/IPTV/DVB. It is a high-integration and cost efficient SOC for 4K HDR STB.

Quad-core Cortex-A53 is integrated with separate Neon and FPU coprocessor, also with shared L2 Cache. The Quad-core GPU supports high-resolution display and game.

Lots of high-performance interface to get very flexible solution, such as multi-channel display including HDMI2.0a and TV Encoder (CVBS). TrustZone and crypto hardware are integrated for security. 32bits DDR3/DDR3L/DDR4/LPDDR3 provides high memory bandwidth.

Product Features

The features listed below which may or may not be present in actual product, may  be subject to the third-party licensing requirements. Please contact Rockchip for  actual product feature configurations and licensing requirements.

1.2.1 Microprocessor

•  Quad-core ARM Cortex-A53 CPU

•  Full implementation of the ARM architecture v8-A instruction set

•  ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerated media and signal processing computation

•  ARMv8 Cryptography Extensions

•  In-order pipeline with symmetric dual-issue of most instructions

•  Unified system L2 cache

•  Include VFP v3 hardware to support single and double-precision operations

•  Integrated 32KB L1 instruction cache, 32KB L1 data cache with 4-way set associative

•  TrustZone technology support

•  Full CoreSight debug solution

•  One separate power domains for CPU core system to support internal power switch and externally turn on/off based on different application scenario

•  PD_A53: Cortex-A53 + Neon + FPU + L1 I/D Cache of core 2/3

•  One isolated voltage domain to support DVFS

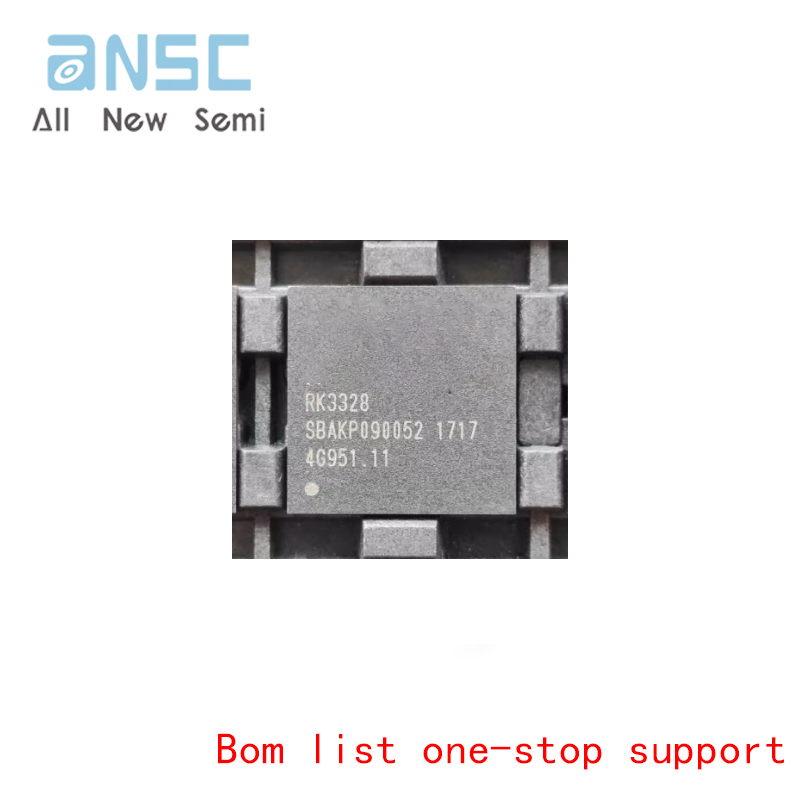

Actual product photos

Product Data Manual：

For more product information, please download the PDF
