Product Descriptions

LC1207 series are a group of positive voltage  output, high precise, and high PSRR and low  power consumption voltage regulator. Voltages are selectable in 100mV steps  within a range of 2.5V to 5.5V. It also can be  customized on command.

LC1207 series have excellent load and line  transient response and good temperature  characteristics, which can assure the stability of chip and power system. And it uses  trimming technique to guarantee output  voltage accuracy within ±2 percent.

LC1207 series are available in SOT-23-3,  SOT-23-5,SOT-89-3 packages, which are  lead (Pb)- free.

Product Features

 Low Quiescent Current: 8uA at 5V

 High PSRR: 60dB range to 10KHz

 Low Output Noise: 44uVRMS

 Low Dropout: 270mV at 150mA load

 Low Temperature Coefficient: ±100ppm/C

 Excellent Line Regulation: 0.05%/V

 Highly Accurate: ±2 percent

Product Applications

 Reference Voltage Source

 Battery Powered Equipment

 Hand-Hold Equipment

 Wireless LAN

 GPS Receivers

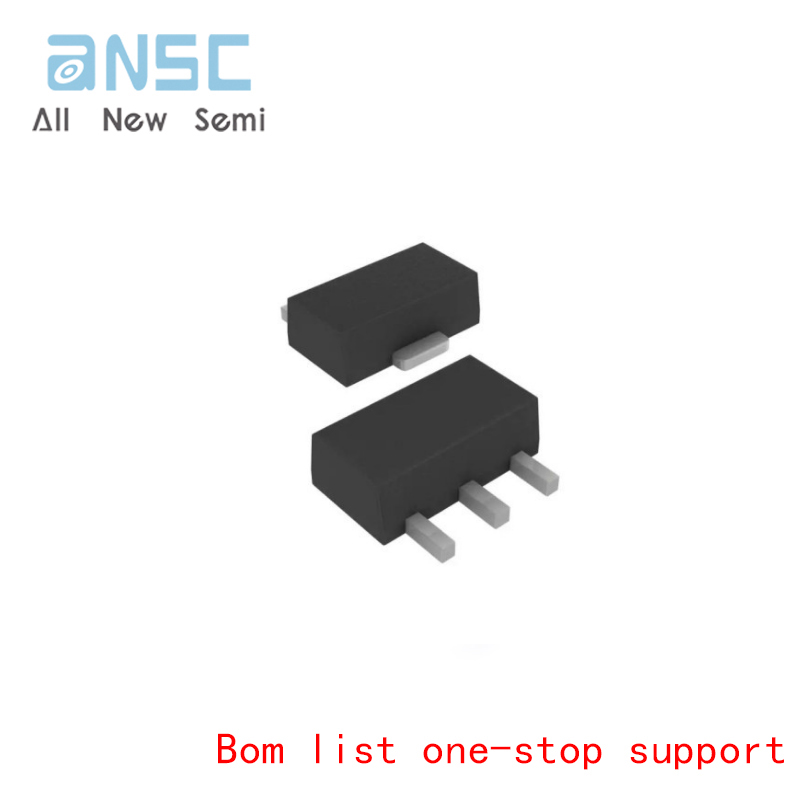

Actual product photos

Product Data Manual：

For more product information, please download the PDF
