Product Descriptions

LC1813 is specially designed for mainstream multimedia TD-SCDMA Smartphone market. With CP and AP integrated in its SOC structure, LC1813 is based on Quad-Cortex-A7 processor, and 40nm LP CMOS technology, which leads to high performance, low power  consumption. It supports 1080P HD video, 2D/3D hardware graphics unit and fast website  exploring, imaging, games and other popular handset applications.

Product Features

 Low-power CMOS technology

- 40 nm LP(Low-Power) technology

- 1.1V core voltage

- IO Interface voltage:

 1.8V/1.2V

 1.8V/3V

 1.1V

 2.5V

 3.3V

 2.5V/1.1V

 CPU

- Cortex-A7

 Quad-core processor

 L1 Cache(32KB ICache, 32KB  DCache)

 L2 Cache 512KB

- ARM926(ARM926EJ-S)

 Up to 468MHz

 Cache(32KB ICache, 32KB  DCache)

 ITCM(8KB)

- ZSP540

 Up to 156MHz

 Cache(32KB ICache, 16KB  DCache)

 On-chip Memory(128KB IMEM,  128KB DMEM)

 Internal memories

- CP-side internal SHRAM

 CP_SHRAM0 192KB

 CP_SHRAM1 16KB

 CP_SHRAM0 can be accessed by  processor: ZSP540

 CP_SHRAM1 can be accessed by  processor: ARM926, ZSP540

- SEC_RAM

 128KB

 Multi-Media

- GPU(Graphics Processing Unit)

 Mali400 Multi-Processor

 Two Pixel Processors

 A Geometry Processor

 A 64KB Level 2 Cache

 OpenGL ES 1.1/2.0 and OpenVG  1.1

 Up to 312MHz

- Video Decoder

 MPEG-1/MPEG2 1080P@30fps

 MPEG4 ASP Level 5  1080P@30fps

 H.263 profile 0 level 70  D1(720×576)@30fps

 H.264 HP level 4.1 1080P@30fps

 VC-1 ASP level 3 1080P@30fps

 DivX 1080P@30fps

 AVS 1080P@30fps

 VP6/VP7/VP8 1080P@30fps

 Spark 1080P@30fps

 RV 1080P@30fps

- Video Encoder

 MPEG-4 MP Level 4 720P@30fps

 H.263 profile 0 Level 70  720P@30fps

 H.264 HP level 5.1 1080P@30fps

 VP8 1080P@30fps

- ISP(Image Signal Processor)

 System level ­ One MIPI 4-lane input  interface ­

- Serial SCCB interface ­

- Parallel 10-bit DVP input  interface ­

- 12-bit RGB bayer input  interface

 Size and speed ­

- Still capture mode ­

- 5168x3876@30fps or @15fps  3D ­

- Video mode ­

- 2560x1600@30fps ­

- 1080P@60fps or @30fps 3D ­

- 720P@120fps or @60fps 3D

 Basic ISP features

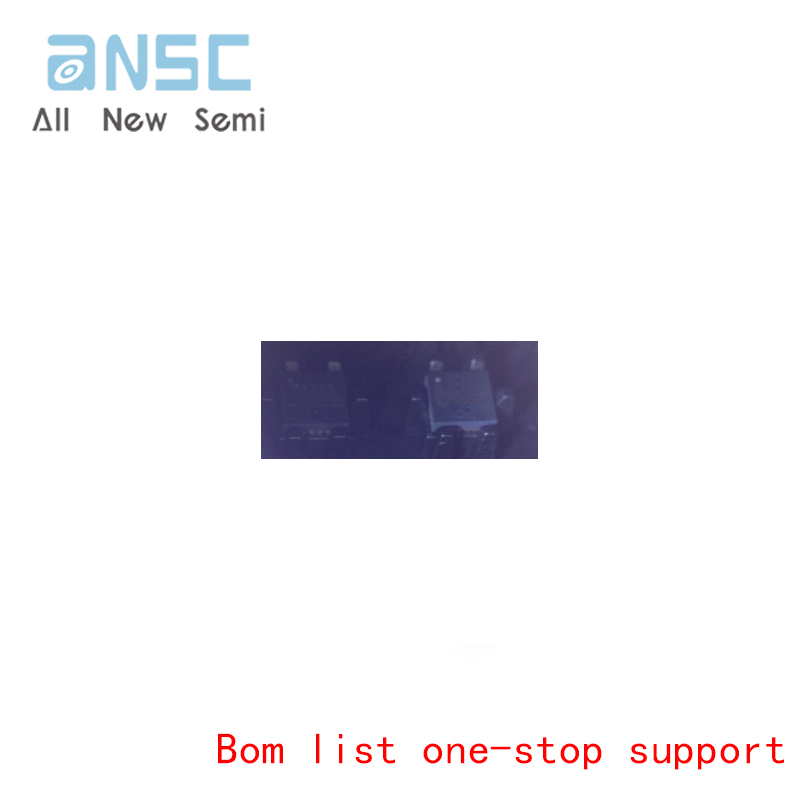

Actual product photos
