Product Descriptions

The Mcse-96 family of 16-bit microcontrollers consists of many members, all of which are designed for high speed control functions. The MCS-96 family members produced using Intel's HMOS-ll process are described in this data sheot.

The CPU supports bit, byte, and word operations, Thirty-two bit double-words are supported for a subset of the instruction set, With a 12 MHz input frequency the 8098BH can do a 16-bit addition in 1.0 us and a 16 x 16-bit multiply or 32/16 divide in 6.25 us. Instruction execution times average 1 to 2 us in typical applications.

Four high-speed trigger inputs are provided to record the times at which external events occur. Six high-speed pulse generator outputs are provided to trigger external events at preset times, The high-speed output unit can simultaneously perform software timer functions, Up to four 18-bit software timers can be in operation at once.

The on-chip A/D converter includes a Sample and Hold, and converts up to 8 multiplexed analog input channels to 10-bit digltal values, With a 12 MHz crystal, each conversion takes 22 us. This feature is only available on the 8X95BHs and 8X97BHs, with the 8X95BHs having 4 multiplexed analog inputs.

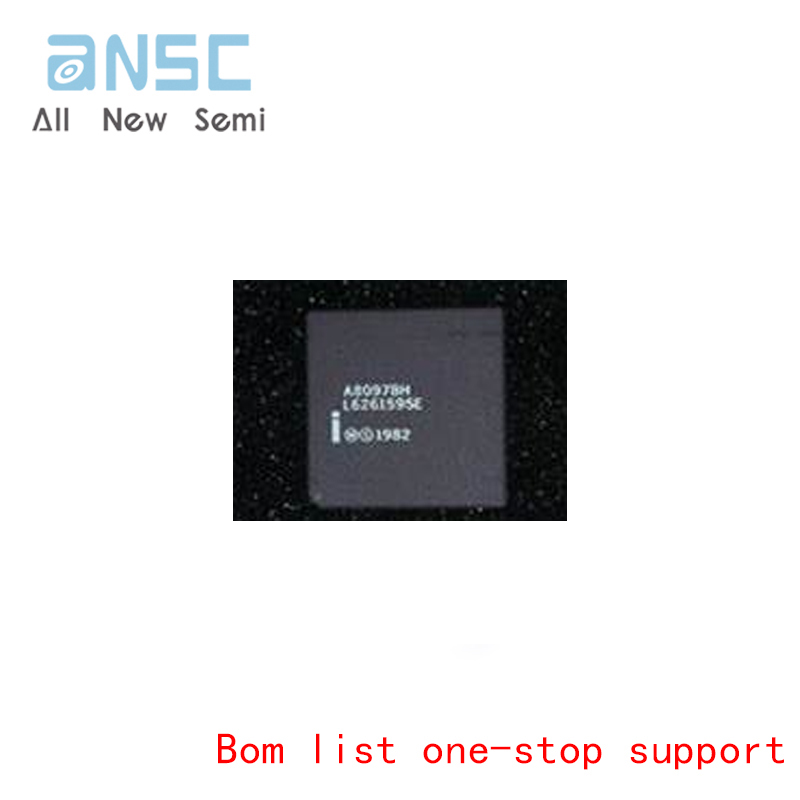

Actual product photos

Product Data Manual：

For more product information, please download the PDF
