Product Descriptions

The LM193, LM293, LM393 and LM393W devices consist of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.

The LM393W offers additional ESD robustness of 2 kV HBM on all pins.

Features

• Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V

• Very low supply current (0.45 mA) independent of supply voltage (1 mW/ comparator at 5 V)

• Low input bias current: 20 nA typ.

• Low input offset current: ±3 nA typ.

• Low input offset voltage: ±1 mV typ.

• Input common-mode voltage range includes ground

• Low output saturation voltage: 80 mV typ. (Isink = 4 mA)

• Differential input voltage range equal to the supply voltage

• TTL, DTL, ECL, MOS, CMOS compatible outputs

• Available in DFN8 2x2, MiniSO8, TSSOP8, and SO8 packages

• LM393W with internal ESD protection: 2 kV HBM

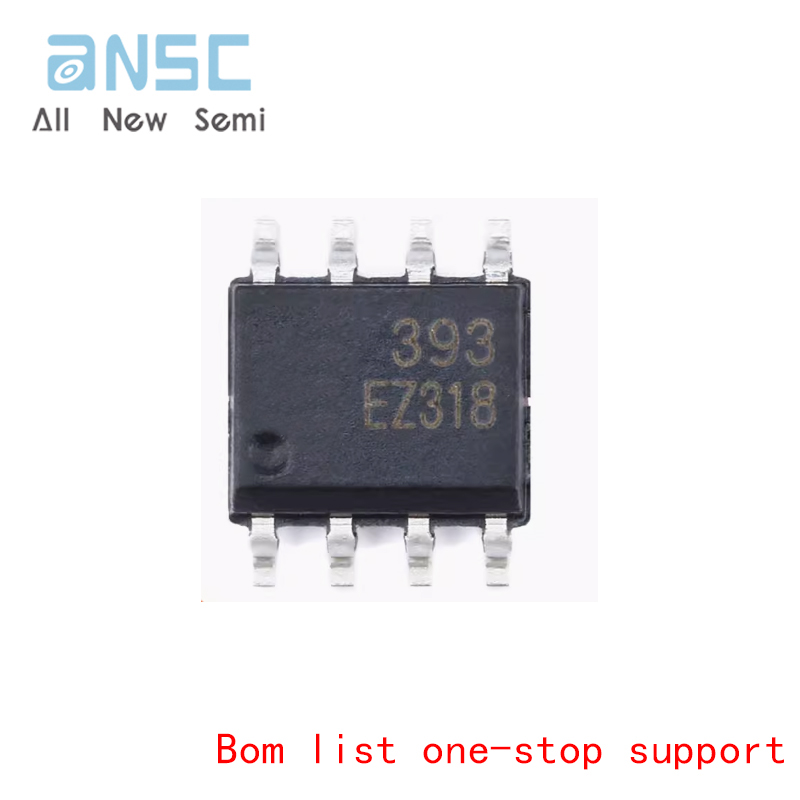

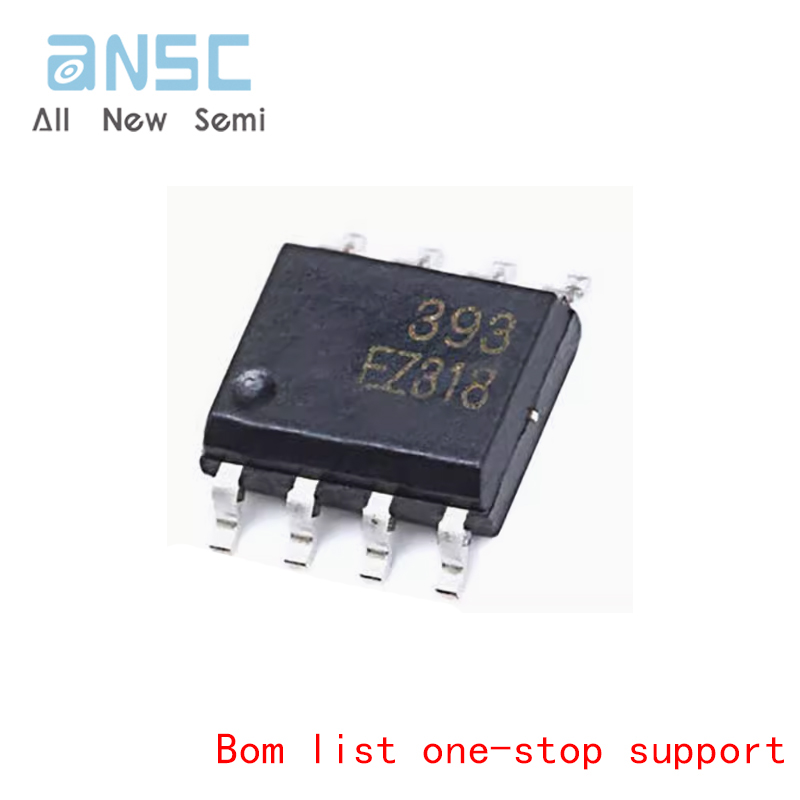

Actual product photos
