Product Descriptions

Evolutionary Architecture  Intel 845E chipset-based platforms extend the Intel Pentium 4 processor and Intel Pentium 4 Processor – M capabilities with an excellent balance of price and performance for applied computing segments.

The Intel 845E chipset consists of two controller hubs: The 82845E Memory Controller Hub (MCH) supports a 400MHz or 533MHz system bus, DDR200/266 memory and the latest graphics devices through the 1.5V AGP4X interface.  The 82801DB I/O Controller Hub (ICH4) makes a direct connection to the graphics and memory for faster access to peripherals. It provides the features and bandwidth required for applied computing-usage models.

The Intel® Platform Advantage Intel’s platform architecture delivers the performance and high scalabity required for today’s cutting edge e-Business and e_home applications. Intel’s comprehensive efforts to enable the industry ensure fast deployment of next-generation platforms, maximizing competitive advantage. Our world-class platform validation creates a robust foundation for emerging applications, while minimizing deployment risks.

■ The Intel® 845E chipset is designed, validated, and optimized for the Intel® Pentium® 4 processor and Intel® Pentium® 4 Processor – M with Intel® NetBurst™ microarchitecture

■ 400MHz or 533MHz system bus delivers a high-bandwidth connection between the Intel Pentium 4 processor and the platform, providing 3x the bandwidth over platforms based on Intel® Pentium® III processors

■ Advanced packaging technology and industryleading electrical design innovations deliver long-term system reliability over wide operating conditions

■ The AGP4X interface provides advanced  graphics support, enabling over 1GB/s of graphics bandwidth

■ Three USB controllers provide highperformance peripherals with 480Mbps of bandwidth, while enabling support for up to six USB 2.0 ports. This results in a significant increase over previous integrated 1-4 port hubs at 12Mbps

■ The latest AC ’97 implementation delivers 20- bit audio for enhanced sound quality and full surround sound capability. Integrated audio solutions continue to enjoy success as a very cost-effective, yet high-performance solution

■ LAN Connect Interface (LCI) provides flexible network solutions such as 10/100Mbps Ethernet and 10/100Mbps Ethernet with LAN manageability

■ The Intel® SingleDriver™ Technology supports all three network options, which simplifies network connectivity and eases deployment

■ Dual Ultra ATA 100 controllers, coupled  with the Intel® Application Accelerator –  a performance software package – support faster IDE transfers to storage devices

■ The Intel Application Accelerator software provides additional performance over native ATA drivers. The Intel Application Accelerator improves system performance by improving I/O transfer rates and enables faster O/S load time resulting in accelerated boot times

■ Communication and Network Riser (CNR) offers flexibility in system configuration  with a baseline feature set that can be upgraded with an audio card, modem card,  or network card

■ Embedded lifecycle support

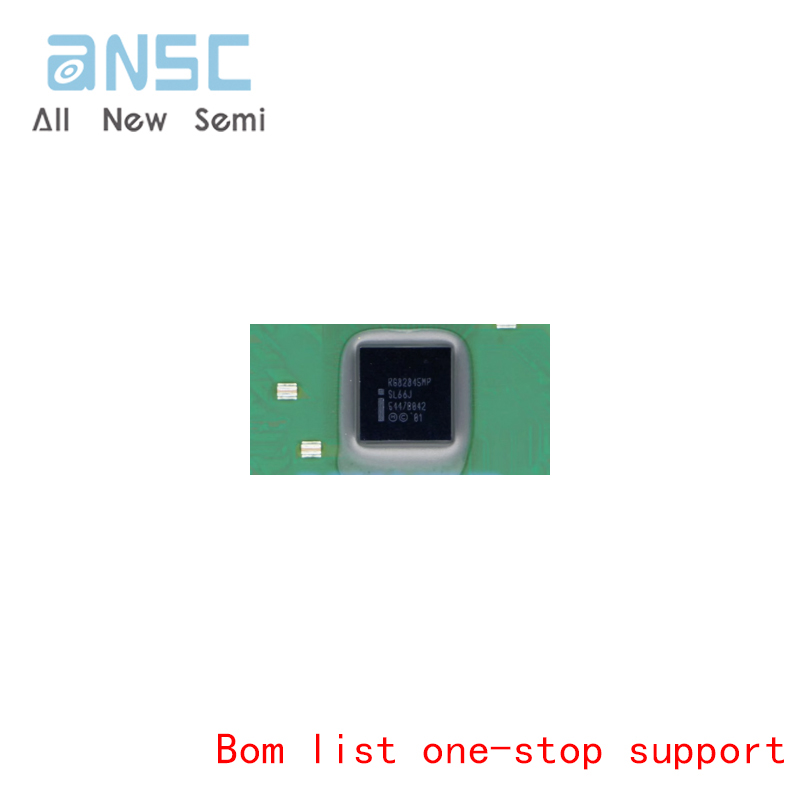

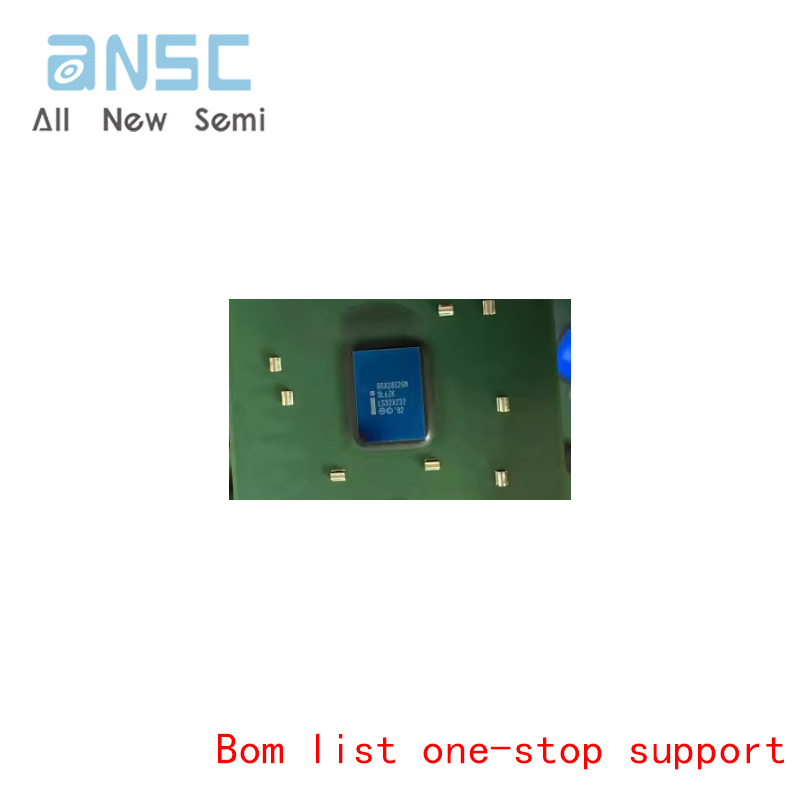

Actual product photos
