Product Descriptions

The Intel 80C186XL is a Modular Core re-implementation of the 80C186 microprocessor. It offers higher speed and lower power consumption than the standard 80C186 but maintains 100% clock-for-clock functional compatibility. Packaging and pinout are also identical.

Y Low Power, Fully Static Versions of 80C186/80C188

Y Operation Modes:

Ð Enhanced Mode

Ð DRAM Refresh Control Unit

Ð Power-Save Mode

Ð Direct Interface to 80C187 (80C186XL Only)

Ð Compatible Mode

Ð NMOS 80186/80188 Pin-for-Pin Replacement for Non-Numerics Applications

Y Integrated Feature Set

Ð Static, Modular CPU

Ð Clock Generator

Ð 2 Independent DMA Channels

Ð Programmable Interrupt Controller

Ð 3 Programmable 16-Bit Timers

Ð Dynamic RAM Refresh Control Unit

Ð Programmable Memory and Peripheral Chip Select Logic

Ð Programmable Wait State Generator

Ð Local Bus Controller

Ð Power-Save Mode

Ð System-Level Testing Support (High Impedance Test Mode)

Y Completely Object Code Compatible with Existing 8086/8088 Software and Has 10 Additional Instructions over 8086/8088

Y Speed Versions Available

Ð 25 MHz (80C186XL25/80C188XL25)

Ð 20 MHz (80C186XL20/80C188XL20)

Ð 12 MHz (80C186XL12/80C188XL12)

Y Direct Addressing Capability to 1 MByte Memory and 64 Kbyte I/O

Y Available in 68-Pin:

Ð Plastic Leaded Chip Carrier (PLCC)

Ð Ceramic Pin Grid Array (PGA)

Ð Ceramic Leadless Chip Carrier (JEDEC A Package)

Y Available in 80-Pin:

Ð Quad Flat Pack (EIAJ)

Ð Shrink Quad Flat Pack (SGFP)

Y Available in Extended Temperature Range (b40§ C to a85§ C)

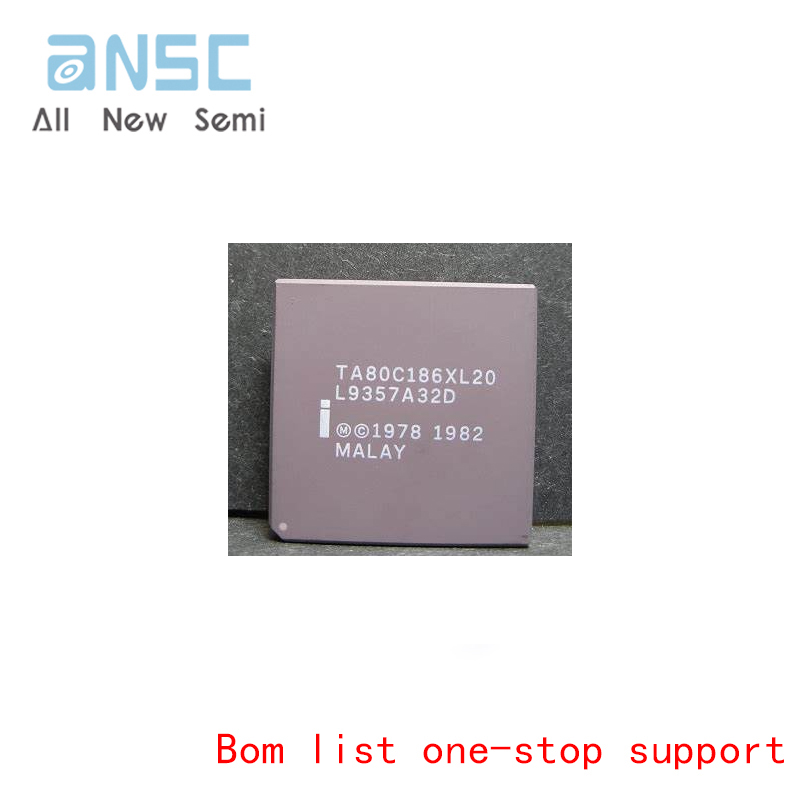

Actual product photos

Product Data Manual:

For more product information, please download the PDF
