Product Descriptions

The 80960KA is a member of Intel’s i960® 32-bit processor family, which is designed especially for embedded applications. It includes a 512-byte instruction cache and a built-in interrupt controller. The 80960KA has a large register set, multiple parallel execution units and a high-bandwidth burst bus. Using advanced RISC technology, this high performance processor is capable of execution rates in excess of 9.4 million instructions per second * . The 80960KA is well-suited for a wide range of applications including non-impact printers, I/O control and specialty instrumentation. Figure 1. The 80960KA Processor’s Highly Parallel Architecture * Relative to Digital Equipment Corporation’s VAX-11/780 at 1 MIPS (VAX-11™ is a trademark of Digital Equipment Corporation) .

Product Features

■ High-Performance Embedded Architecture

— 25 MIPS Burst Execution at 25 MHz

— 9.4 MIPS* Sustained Execution at 25 MHz

■ 512-Byte On-Chip Instruction Cache

— Direct Mapped

— Parallel Load/Decode for Uncached Instructions

■ Multiple Register Sets

— Sixteen Global 32-Bit Registers

— Sixteen Local 32-Bit Registers

— Four Local Register Sets Stored On-Chip

— Register Scoreboarding

■ 4 Gigabyte, Linear Address Space

■ Pin Compatible with 80960KB

■ Built-in Interrupt Controller

— 31 Priority Levels, 256 Vectors

— 3.4 µs Latency @ 25 MHz

■ Easy to Use, High Bandwidth 32-Bit Bus

— 66.7 Mbytes/s Burst

— Up to 16 Bytes Transferred per Burst

■ 132-Lead Packages:

— Pin Grid Array (PGA) — Plastic Quad Flat-Pack (PQFP)

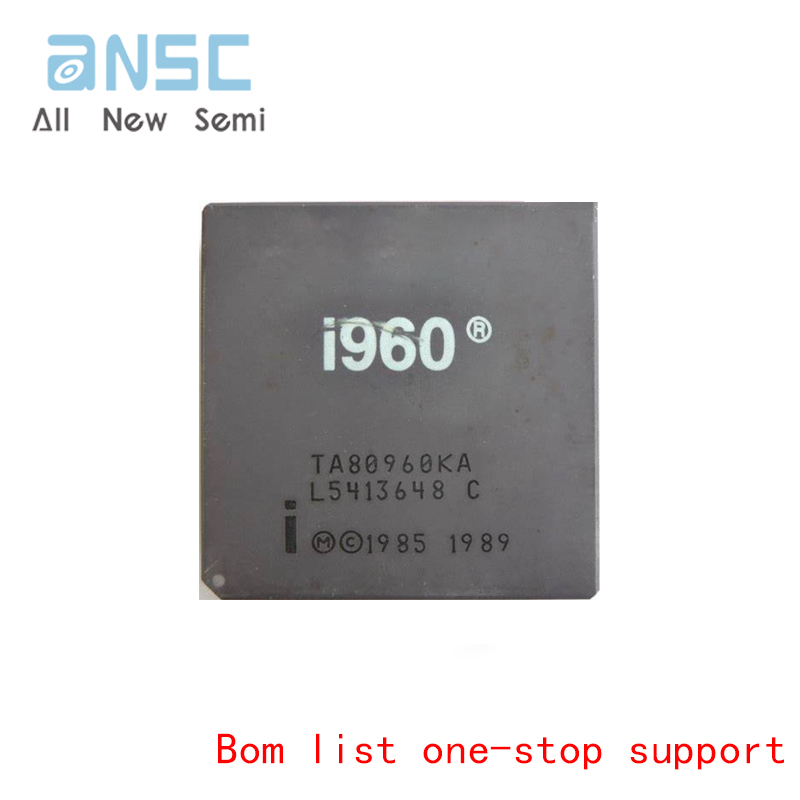

Actual product photos
