Product Description
The ADUM1401ARWZ is a high-performance, unidirectional digital isolator from Analog Devices Inc.
This 4-channel isolator is designed for general-purpose applications and features a compact
16-pin SOIC package. With a data rate of 1Mbps, it provides reliable and fast communication
between isolated circuits.
Product Features
Unidirectional digital isolator with 4 channels
Data rate of 1Mbps for fast communication
Operating supply voltage range of 2.7V to 5.5V
Operating temperature range of -40°C to 105°C
Isolation voltage of 2500Vrms
Compact 16-pin SOIC package with a height of 2.65mm
Surface mount package with a terminal pitch of 1.27mm
RoHS3 compliant and contains lead
Product Applications
Industrial automation and control systems
Medical devices and equipment
Automotive systems and components
Aerospace and defense applications
General-purpose isolation requirements
Product Description
| Type# | Description |
| ANSC PART# | ANSC - ADUM1401ARWZ |
| Category | Isolators |
| Digital Isolators | |
| Mfr | Original |
| Series | iCoupler® |
| Packaging | Tube |
| Part Status | Active |
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 |
3/1 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADUM1401 |

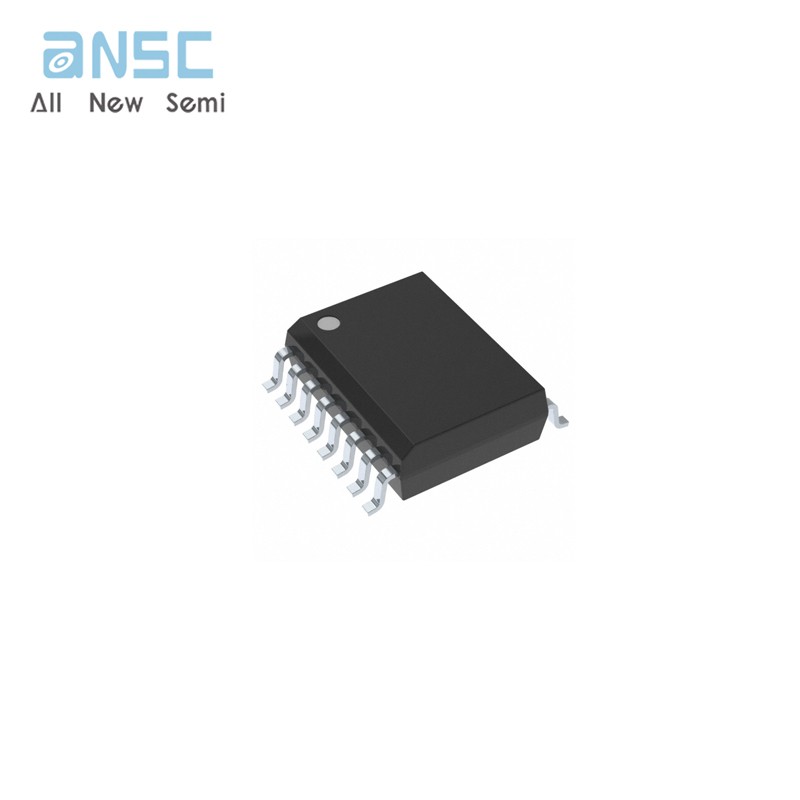

Product Photos

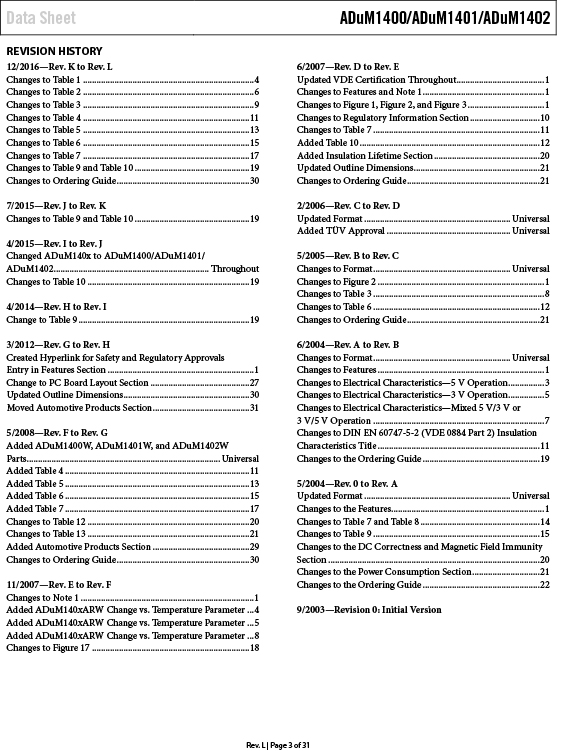

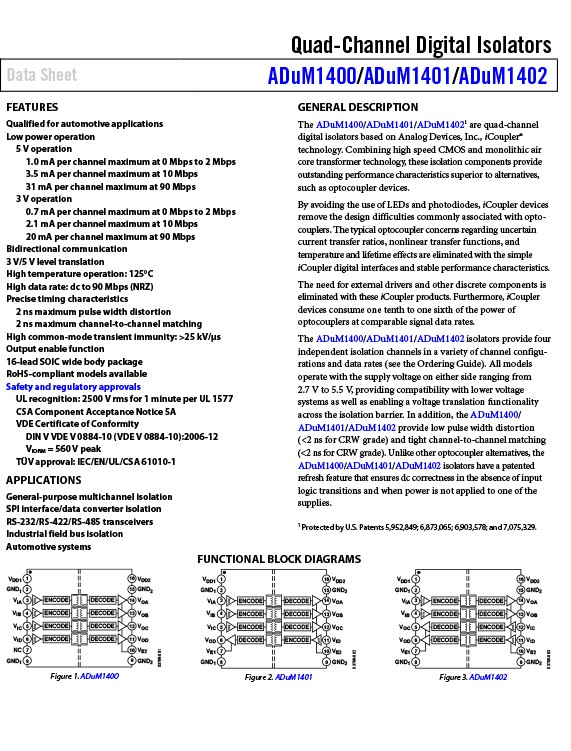

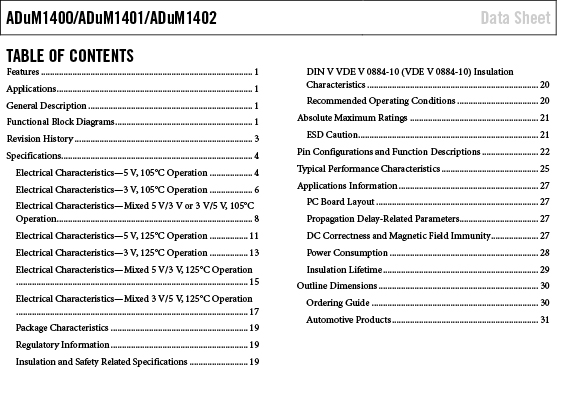

Product datasheet
