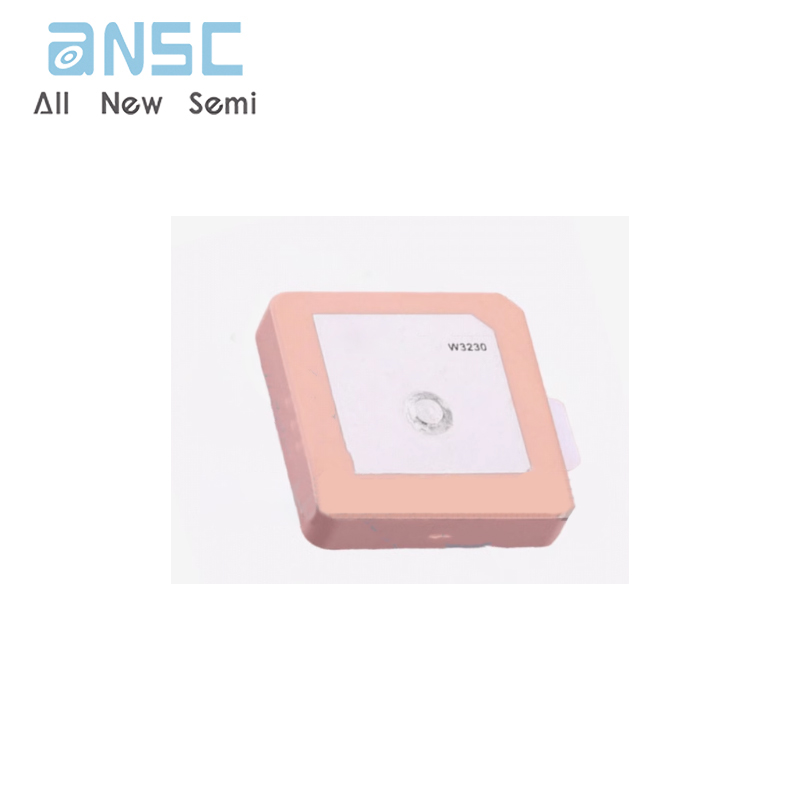

Product Features
• 2400-2500 MHz
• Size: 18x18x4mm
• Polarization: RHCP
• Gain: +6dBic
• Pin feed, adhesive tape
• RoHS compliant
Product Applications
• 2.4-2.5GHz ISM Band radios
• WiFi, Bluetooth
• Applications requiring high gain directional antenna pattern
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502222420 |
| Product Model | W3230 |
| Category | RF and Wireless |
| RF Antennas | |
| Manufacturer | Pulse Electronics |
| Series | Ceramic Patch Antenna |
| Packaging | Bulk |
| Part Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.45GHz |
| Frequency Range | 2.4GHz ~ 2.5GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 1 |
| VSWR | - |
| Return Loss | -4dB |
| Gain | 6dBi |
| Power - Max | 5 W |
| Features | - |
| Termination | Pin |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Bluetooth, Wi-Fi |
