Product Features
- Omni directional radiation (Azimuthal plane)
- Low profile

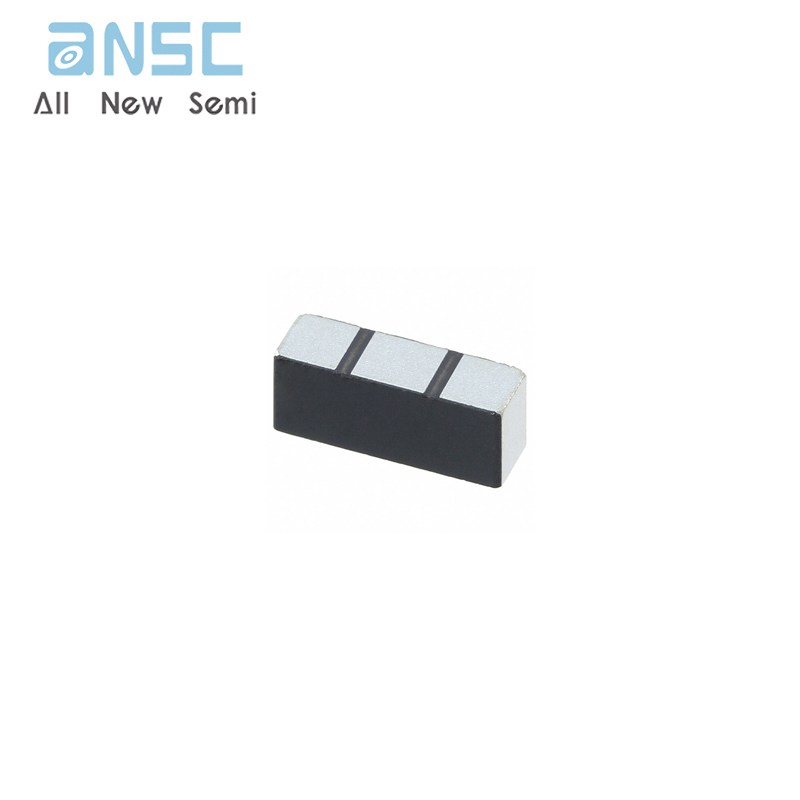

- Compact size W x L x H (10 x 3.2 x 4 mm)
- Low weight (600 mg)
- Lead free materials
- Fully SMD compatible
- Lead free soldering compatible
- Tape and reel packing
- RoHS compliant product
Product Applications
- Bluetooth
- 2.4 GHz WLAN
- 2.4 GHz ISM Band System
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502222421 |
| Product Model | W3001 |
| Category | RF and Wireless |
| RF Antennas | |
| Manufacturer | Pulse Electronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| RF Family/Standard | Bluetooth, WiFi |
| Frequency Group | UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 2.4GHz |
| Frequency Range | 2.4GHz ~ 2.483GHz |
| Antenna Type | Chip |
| Number of Bands | 1 |
| VSWR | - |
| Return Loss | -6dB |
| Gain | 1.5dBi |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.157" (4.00mm) |
| Applications | Bluetooth, WLAN |
