Product Features

• High-efficiency 32-bit CPU (TMS320C28x)

– 90 MHz (11.11-ns cycle time)

– 16 × 16 and 32 × 32 Multiply and Accumulate (MAC) operations

– 16 × 16 dual MAC

– Harvard bus architecture

– Atomic operations

– Fast interrupt response and processing

– Unified memory programming model

– Code-efficient (in C/C++ and Assembly)

• Floating-Point Unit (FPU)

– Native single-precision floating-point operations

• Programmable Control Law Accelerator (CLA)

– 32-bit floating-point math accelerator

– Executes code independently of the main CPU

• Viterbi, Complex Math, CRC Unit (VCU)

– Extends C28x instruction set to support complex multiply, Viterbi operations, and Cyclic Redundency Check (CRC)

• Embedded memory

– Up to 256KB of flash

– Up to 100KB of RAM

– 2KB of One-Time Programmable (OTP) ROM

• 6-channel Direct Memory Access (DMA)

• Low device and system cost

– Single 3.3-V supply

– No power sequencing requirement

– Integrated power-on reset and brownout reset

– Low-power operating modes

– No analog support pin

• Endianness: Little endian

• JTAG boundary scan support

– IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture

• Clocking

– Two internal zero-pin oscillators

– On-chip crystal oscillator/external clock input

– Watchdog timer module

– Missing clock detection circuitry

• Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts

• Three 32-bit CPU timers

• Advanced control peripherals

• Up to 8 Enhanced Pulse-Width Modulator (ePWM) modules

– 16 PWM channels total (8 HRPWM-capable)

– Independent 16-bit timer in each module

• Three input Enhanced Capture (eCAP) modules

Specifications

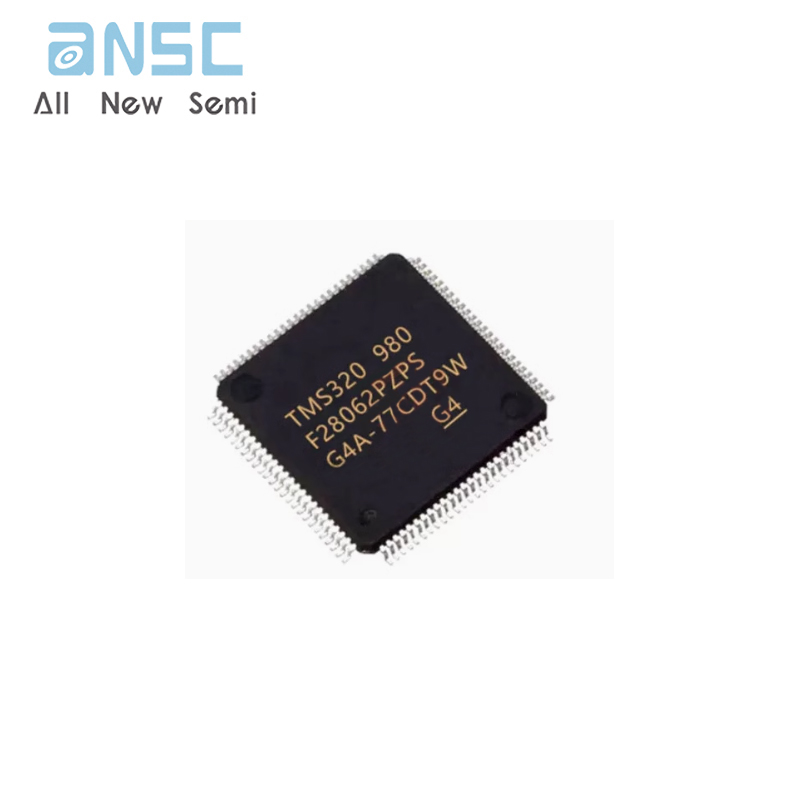

Actual product photos
