Product Descriptions

The TLV245x is a family of rail-to-rail input/output operational amplifiers that sets a new performance point for supply current and ac performance. These devices consume a mere 23 µA/channel while offering 220 kHz of gain-bandwidth product, much higher than competitive devices with similar supply current levels. Along with increased ac performance, the amplifier provides high output drive capability, solving a major shortcoming of older micropower rail-to-rail input/output operational amplifiers. The TLV245x can swing to within 250 mV of each supply rail while driving a 2.5-mA load. Both the inputs and outputs swing rail-to-rail for increased dynamic range in low-voltage applications. This performance makes the TLV245x family ideal for portable medical equipment, patient monitoring systems, and data acquisition circuits.

Product Features

Supply Current . . . 23 µA/Channel

Gain-Bandwidth Product . . . 220 kHz

Output Drive Capability . . . ±10 mA

Input Offset Voltage . . . 20 µV (typ)

VDD Range . . . 2.7 V to 6 V

Power Supply Rejection Ratio . . . 106 dB

Ultralow-Power Shutdown Mode IDD . . . 16 nA/ch

Rail-To-Rail Input/Output (RRIO)

Ultrasmall Packaging

− 5 or 6 Pin SOT-23 (TLV2450/1)

− 8 or 10 Pin MSOP (TLV2452/3)

Specifications

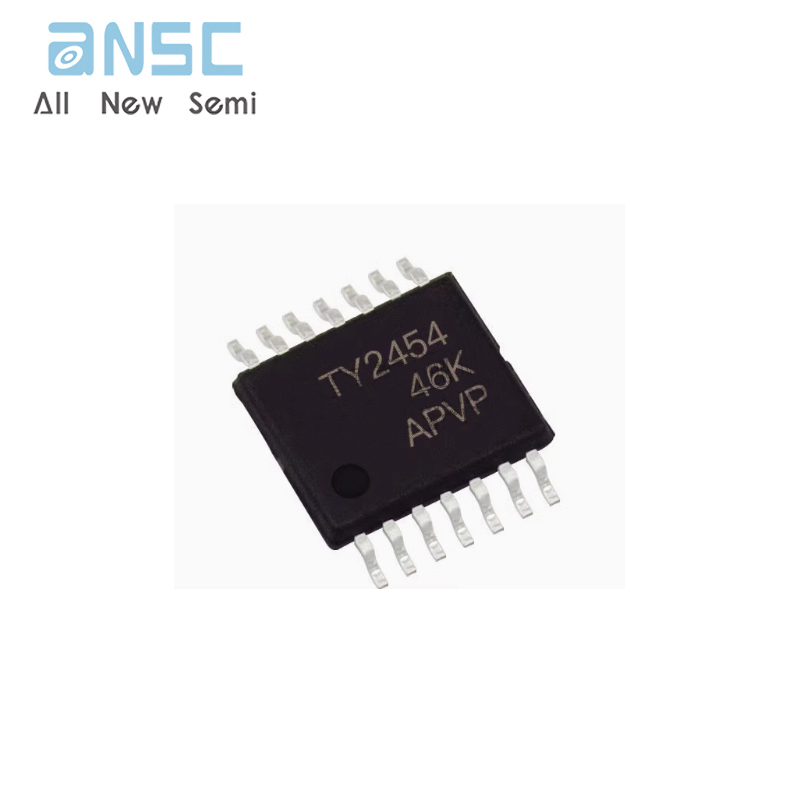

Actual product photos
