Product Descriptions

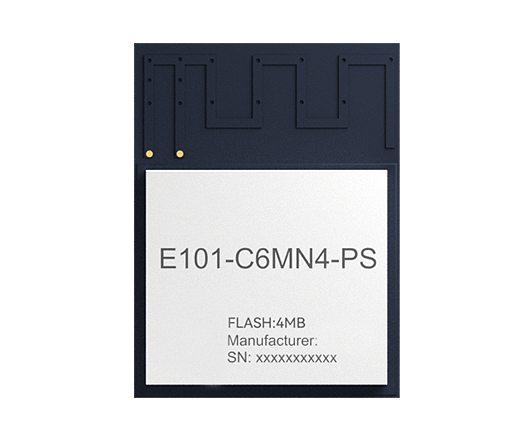

E101-C6MN4-PS and E101-C6MN4-XS are developed based on the built-in ESP32-C6 series chip solution.

E101-C6MN4-PS and E101-C6MN4-XS are universal Wi Fi 6 and Bluetooth LE 5.3 modules with small size, rich peripheral interfaces, 4 MB embedded flash, and RISC-V 32-bit single core processor. The chip integrates a variety of peripherals, including UART, I2C, I2S, infrared remote control module (remote control peripheral), LED PWM controller, universal DMA controller TWAI ®  Controller, USB serial/JTAG controller, temperature sensor, and analog-to-digital converter, as well as single wire, dual wire, and four wire SPI interfaces.

Can be used in fields such as smart homes, industrial automation, healthcare, consumer electronics, etc.

Product Features

⚫  Working in the 2412~2484 MHz frequency band, 1T1R

⚫  Support IEEE 802.11ax protocol;

⚫  Supports Bluetooth LE: certified with Bluetooth 5.3;

⚫  Bluetooth partial support: Bluetooth mesh, broadcast extension, multi broadcast, power control and other functions;

⚫  4 MB embedded flash,

⚫  Support AT commands;

⚫  Support MQTT protocol;

⚫  Support IPV6 network settings;

⚫  Support HTTP protocol;

⚫  Support low-power mode;

⚫  Support AT commands;

⚫  Support the exchange of three roles: AP, STA, and AP+STA;

⚫  Support serial communication and flow control. The maximum supported baud rate is 128000;

⚫  Support automatic and manual networking
