Product Descriptions

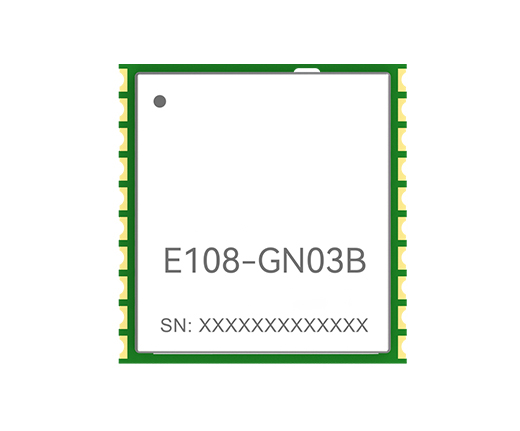

The E108-GN03B series single Beidou module is a high-performance positioning and navigation module based on the sixth generation SOC single Beidou chip AT6668B of Zhongke Micro. It applies a new navigation integrated SOC single chip technology, which can meet the application of high-precision positioning and high-precision timing. At the same time, it has the characteristics of high integration, high performance, low power consumption, small size, etc., and supports Beidou-2 (B1I) and Beidou-3 (B1C) signals. This series of modules has three common packaging options and is compatible with the software and hardware interfaces of GNSS modules from other manufacturers. It can be used in application fields such as car navigation, wearable devices, mobile phones, IoT devices, drones, etc.

The E108-GN03B single Beidou series module is based on proprietary fast satellite search technology, which can quickly receive a large number of visible satellite signals, achieve fast and accurate positioning, and significantly improve positioning performance in complex environments such as urban canyons; Integrated high-performance embedded CPU, with a maximum position update rate of up to 10Hz, suitable for high dynamic applications sensitive to positioning delay; Integrated with proprietary anti-interference hardware acceleration circuit, it can quickly detect and suppress RF interference. The E108-GN03BD model can provide power to RTC and backup RAM through button batteries or Farad capacitors to reduce the first positioning time. It also supports multiple ways to connect with other peripherals, including UART and GPIO interfaces. If you need I2C and SPI interfaces, please contact customer service for customization.

Product Features

• Domestic BDS single Beidou positioning and navigation module;

• Support Beidou-2 and Beidou-3 satellites;

• Support B1I/B1C frequency points;

• Support B1I or B1C independent positioning;

• Number of channels: 50 channels;

• Support A-BDS;

• The highest update rate of positioning information can reach 10Hz;

• Support PPS output;

• Supports UART and GPIO interfaces;

• Support power management function;

• Typical power consumption for continuous operation:<42mA (@ 3.3V);

• Typical standby power consumption:<10uA (@ 3.3V);

• Built in antenna detection and antenna short circuit protection function;

• Output format: Supports NMEA0183V4.1 and earlier versions;

• High sensitivity: Cold start -148dBm, hot start -156dBm, reacquisition -160dBm, tracking -162dBm;

• The positioning chip has passed the single Beidou product certification;

• Compatible with software and hardware from other manufacturers, significantly reducing the development cycle for users;

Product Applications

• Vehicle positioning and navigation equipment;

• Wearable devices, such as location trackers, etc;

• Drone positioning, industrial computers, etc;

• Industry equipment with a demand for single Beidou BDS positioning or navigation;

• Portable devices such as mobile phones, tablets, etc.

• Asset tracking;

Specifications
