Product Descriptions

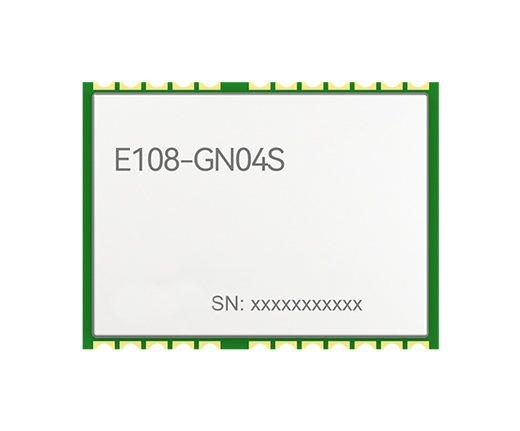

The E108-GN04 series is a high-performance, highly integrated, low-power, and low-cost multi-mode satellite positioning and navigation module that supports BDS/GPS/GLONASS/ALILEO satellite positioning. It has a small size and low power consumption, and can be used in GNSS positioning applications such as car navigation, smart wearables, and drones. It also provides software and hardware interfaces compatible with other module manufacturers, greatly reducing the development cycle for users.

This module adopts an integrated RF baseband design, which integrates DCDC, LDO, RF front-end, low-power application processor, RAM, Flash storage, RTC, and power management. It can supply power to RTC and backup RAM through button batteries or Farad capacitors to reduce the first positioning time. It also supports multiple ways to connect with other peripherals, including UART, GPIO, RS232, RS485 interfaces. If you need I2C, SPI, USB interfaces, please contact customer service for customization.

Product Features

• Support BDS/GPS/GLONASS/ALILEO multi system joint positioning and single system independent positioning;

• Support Beidou B1I and B1C;

• The maximum update rate of positioning information in single system independent positioning mode can reach 25Hz;

• Support PPS output;

• Support A-GNSS services;

• Built in reset controller;

• Supports UART, GPIO, RS232, RS485 interfaces;

• E108-GN04G series with casing, supports IP67 waterproof rating;

• Equipped with active antenna detection and protection;

• Output format: Supports NMEA 4.11;

• High sensitivity: Cold start -148dBm, hot start -159dBm, reacquisition -160dBm, tracking -167dBm;

• Software and hardware compatibility with other manufacturers significantly reduces the development cycle for users;

Product Applications

• Vehicle positioning and navigation equipment;

• Wearable devices, such as GPS trackers, etc;

• Drone positioning, industrial computers, etc;

• Industry equipment with a demand for GNSS positioning or navigation;

• Asset tracking;

Specifications
