Product Details
power supplies are designed for all applications, where high reliability and long lifetime are important.
They provide excellent electric specifications and full compliance to the European EMC and Low Voltage Directive. Universal input and international safety approvals qualify these power supplies for worldwide use.
With their low profile case and screw terminal block they are easy to install in any equipment.
Features
■ Compact boxed Power Supplies with Screw Terminal Block
■ Single, Dual and Triple Output Models
■ Universal Input 85-264 VAC, 50/60 Hz
■ EMI / EMC Compliance with EN 50081-1 and EN 50082-1
■ Short Circuit and Overvoltage Protection
■ High Efficiency
■ International Safety Approvals
■ Industrial Grade Components
■ 2 Year Product Warranty
Product Description
| Type# | Description |
| ANSC PART# | ANSC- ESP8266EX |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Espressif Systems |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | WiFi |
| Protocol | 802.11b/g/n |
| Modulation | - |
| Frequency | 2.4GHz |
| Data Rate (Max) | 54Mbps |
| Power - Output | 20dBm |
| Sensitivity | -91dBm |
| Memory Size | - |
| Serial Interfaces | I2C, I2S, SPI, UART |
| GPIO | 8 |
| Voltage - Supply | 2.5V ~ 3.6V |
| Current - Receiving | 50mA ~ 56mA |
| Current - Transmitting | 120mA ~ 170mA |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | ESP8266 |

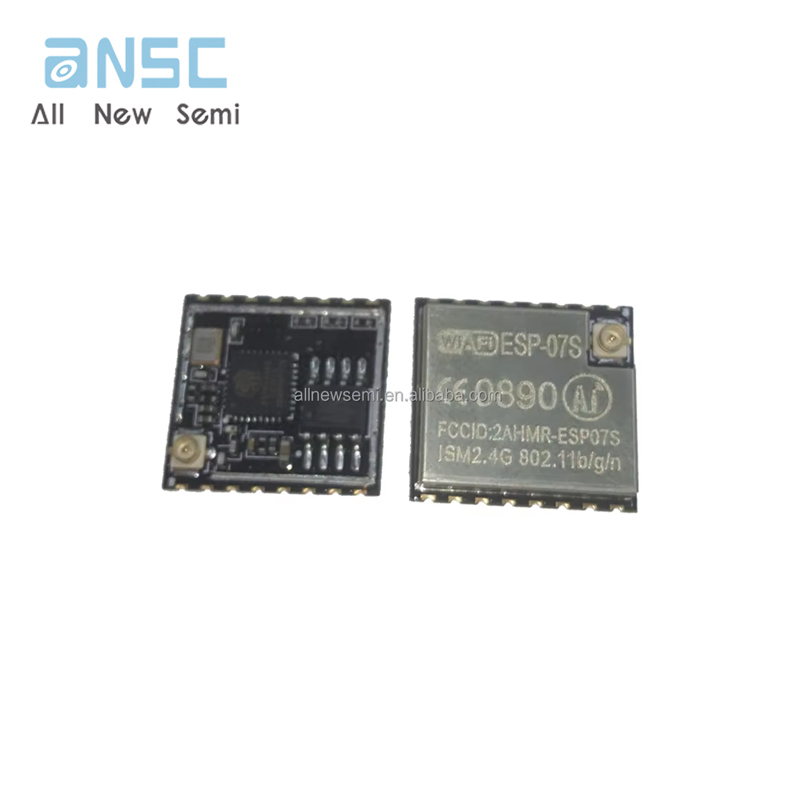

Product Photos

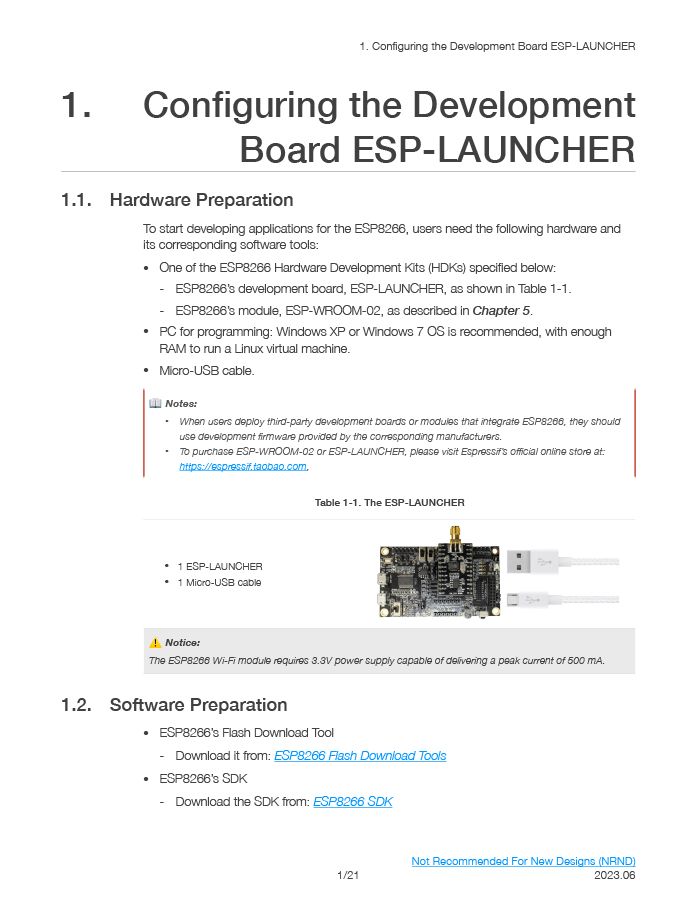

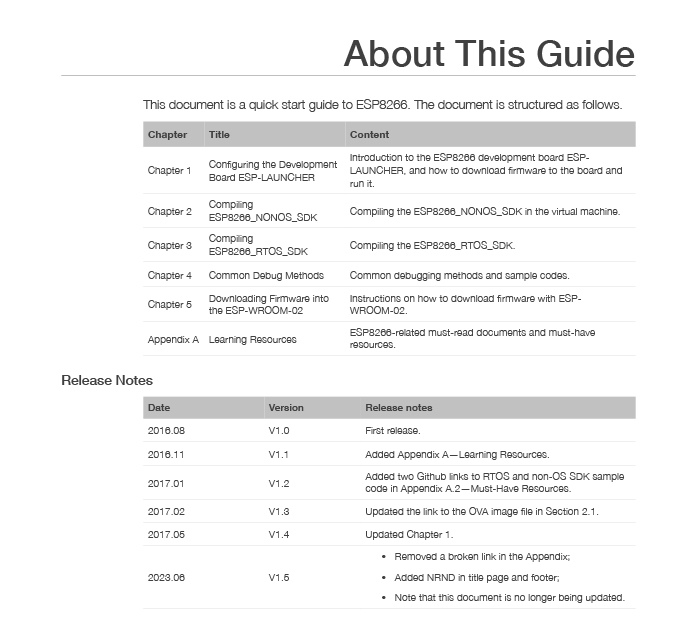

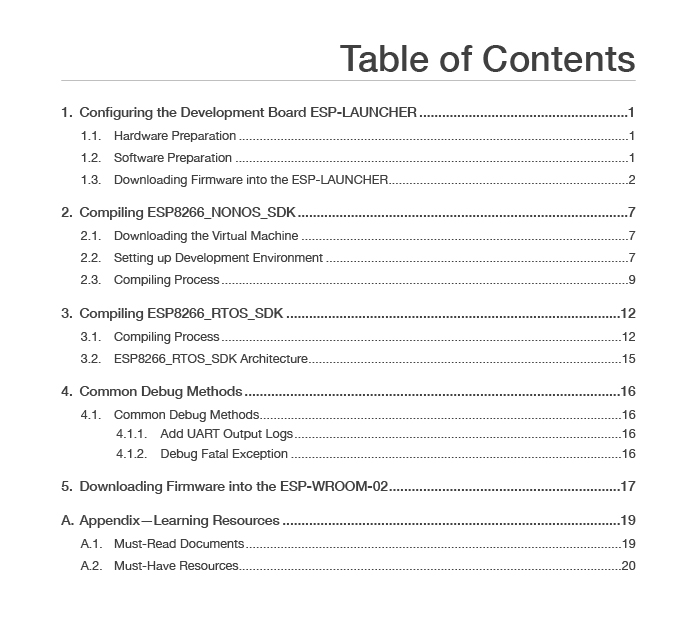

Product datasheet
