| GENERAL DESCRIPTION The REF19x series precision band gap voltage references use a patented temperature drift curvature correction circuit and laser trimming of highly stable, thin-film resistors to achieve a very low temperature coefficient and high initial accuracy. FEATURES Initial accuracy: ±2 mV maximum Temperature coefficient: 5 ppm/°C maximum Low supply current: 45 μA maximum Sleep mode: 15 μA maximum Low dropout voltage Load regulation: 4 ppm/mA Line regulation: 4 ppm/V High output current: 30 mA Short-circuit protection |
Product Description
| Type | Description |

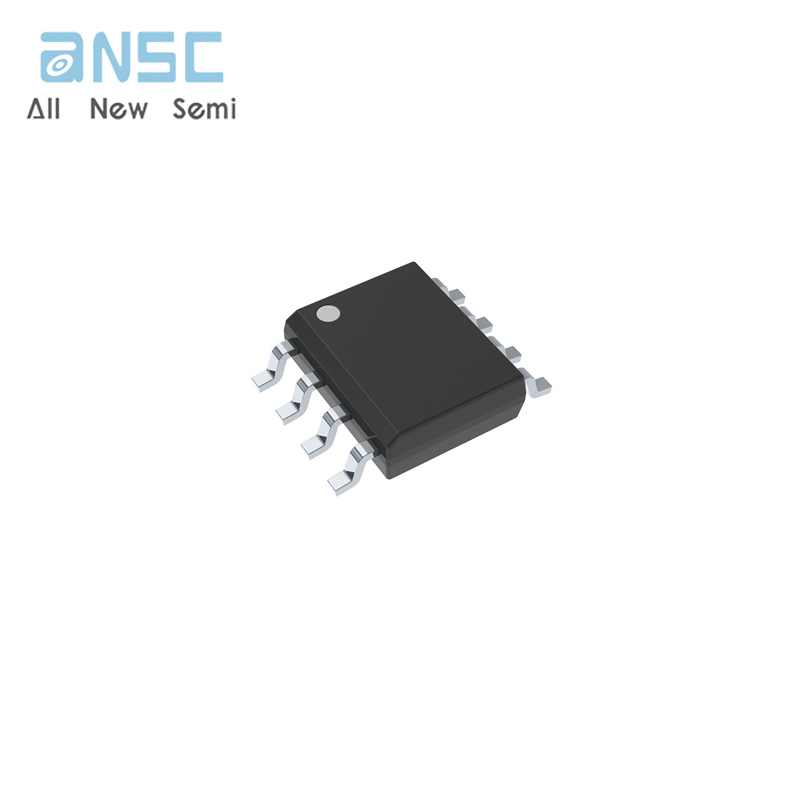

| ANSC PART# | ANSC - REF198ESZ-REEL |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Manufacturer | Original |
| Series | REF19 |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Reference Type | Series |
| Output Type | Fixed |
| Voltage - Output (Min/Fixed) | 4.096V |
| Current - Output | 30 mA |
| Tolerance | ±0.05% |
| Temperature Coefficient | 5ppm/°C |
| Noise - 0.1Hz to 10Hz | 40µVp-p |
| Noise - 10Hz to 10kHz | - |
| Voltage - Input | 4.5V ~ 15V |
| Current - Supply | 45µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | REF198 |
Product Photos

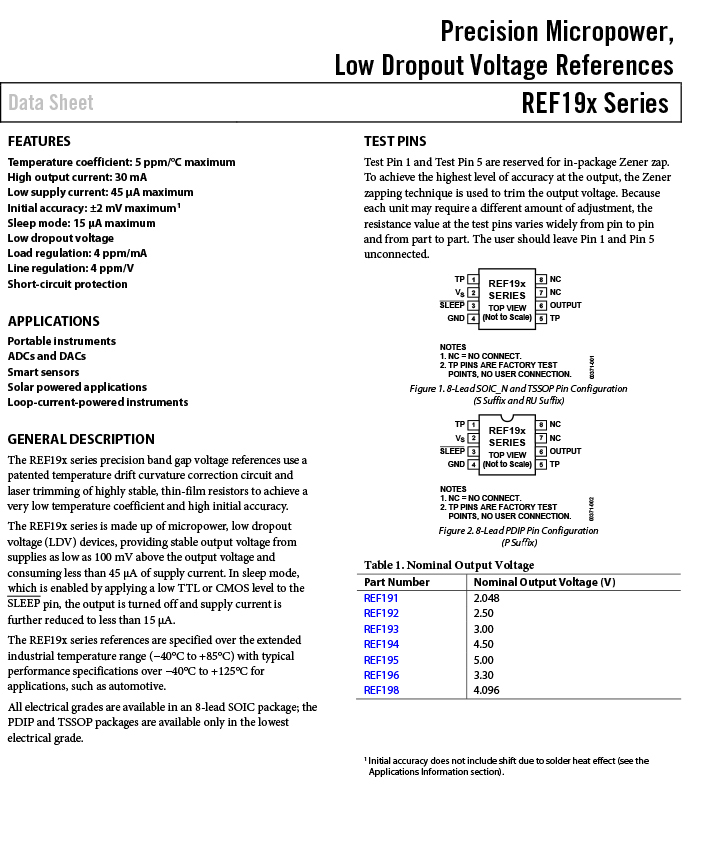

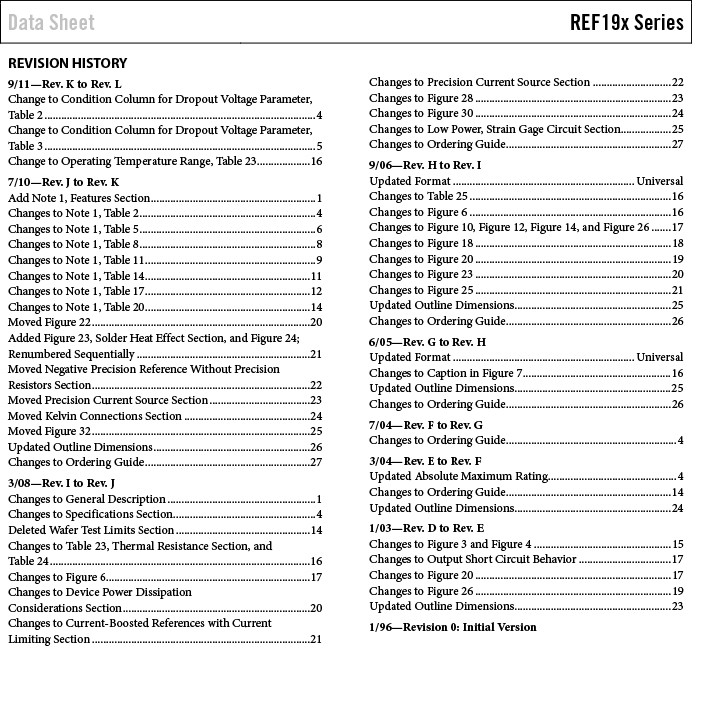

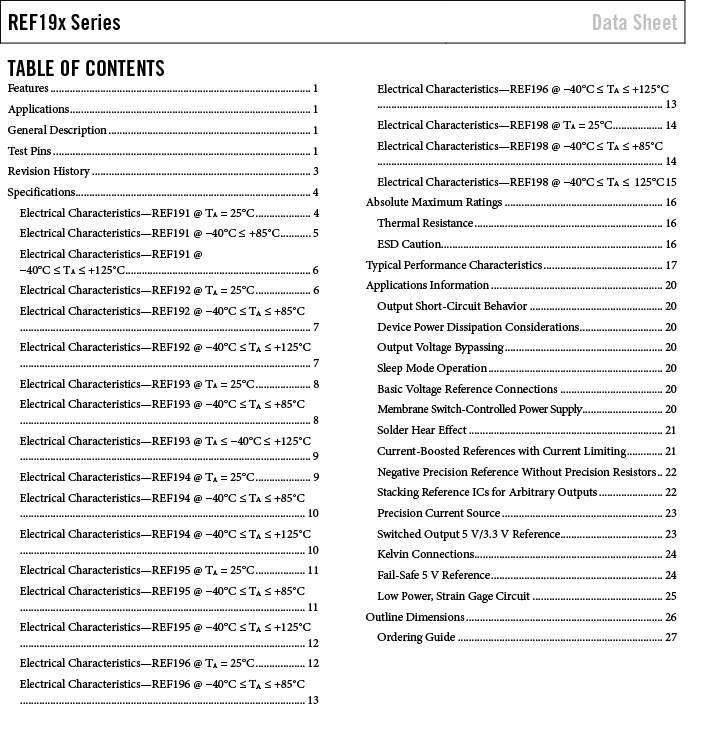

Product datasheet
