Product Details
| DESCRIPTION The LT® 1803/LT1804/LT1805 are single/dual/quad, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT1803/LT1804/LT1805 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth and slew rate. FEATURES ■ Slew Rate: 100V/µs ■ Gain Bandwidth Product: 85MHz ■ Input Common Mode Range Includes Both Rails ■ Output Swings Rail-to-Rail ■ Low Quiescent Current: 3mA Max per Amplifier ■ Large Output Current: 42mA ■ Voltage Noise: 21nV/√Hz ■ Power Supply Rejection: 90dB ■ Open-Loop Gain: 60V/mV ■ Operating Temperature Range: – 40°C to 85°C ■ Single Available in the 8-Pin SO and 5-Pin Low Profile (1mm) SOT-23 (ThinSOTTM) Package ■ Dual Available in 8-Lead DFN and SO Packages ■ Quad Available in the 14-Pin Narrow SO Package APPLICATIONS ■ Low Voltage, High Frequency Signal Processing ■ Driving A/D Converters ■ Rail-to-Rail Buffer Amplifiers ■ Active Filters ■ Video Line Driver |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LT1807IS8 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, Op Amps, Buffer Amps | |
| Mfr | Original |
| Series | LT® |
| Packaging | Tube |
| Part Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 140V/µs |
| Gain Bandwidth Product | 325 MHz |
| Current - Input Bias | 1 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 9mA (x2 Channels) |
| Current - Output / Channel | 85 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 12.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Base Product Number | LT1807 |

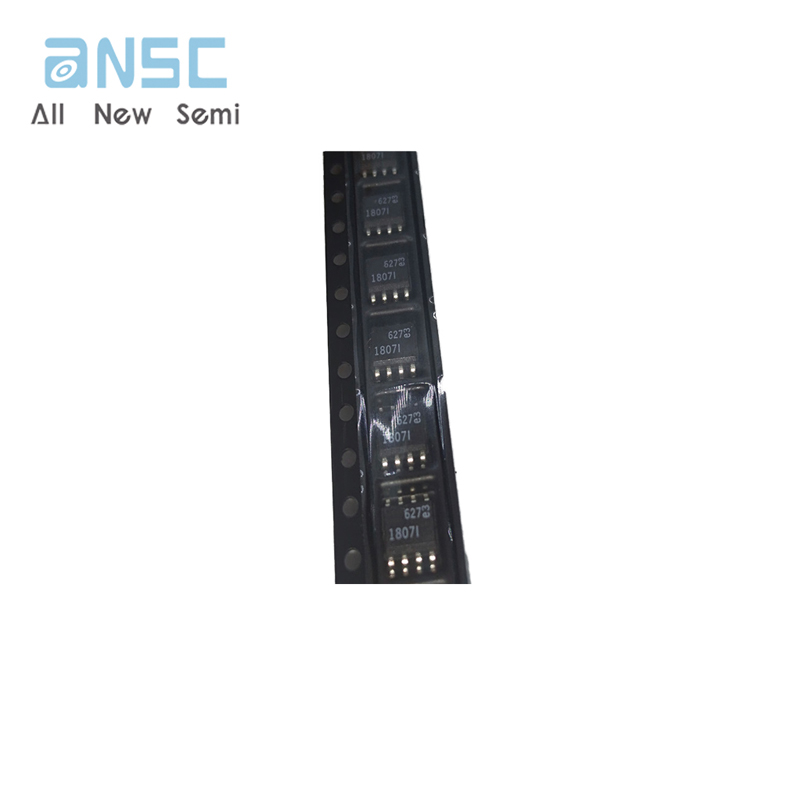

Product Photos

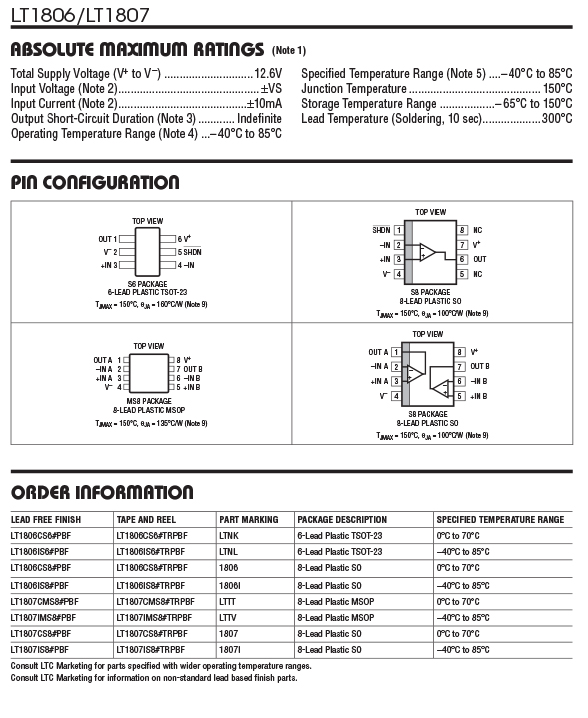

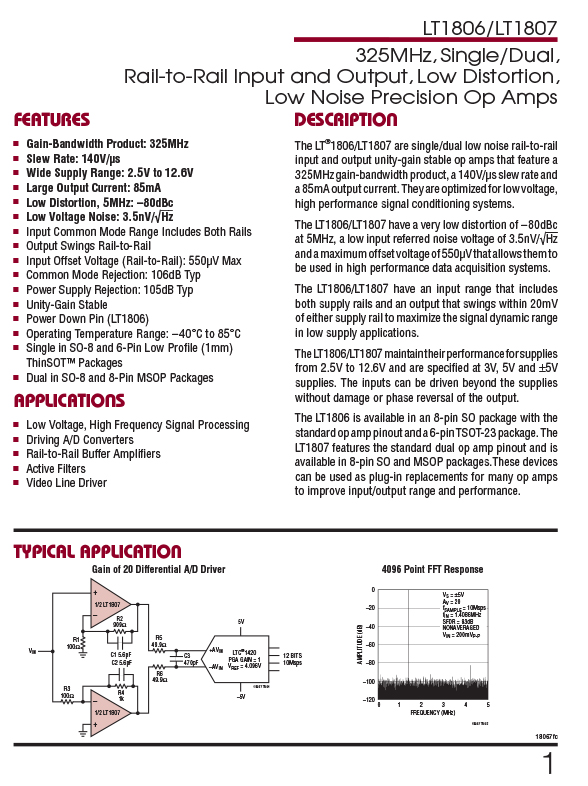

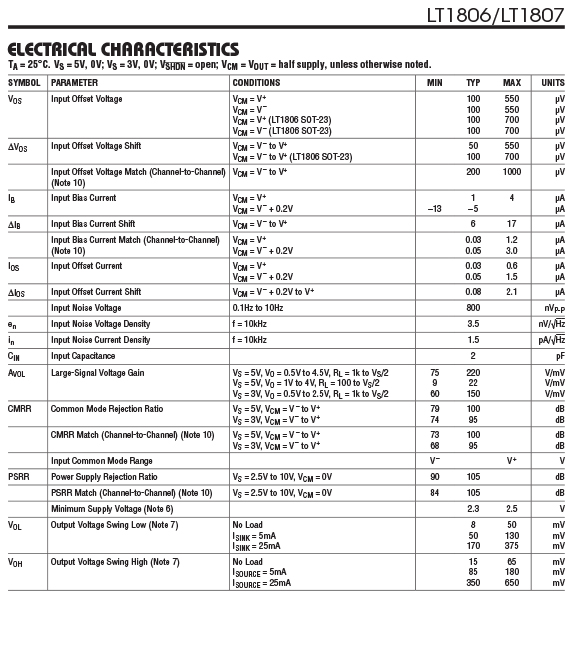

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
