Product Details
| DESCRIPTION The LTC®6993 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1µs to 33.6 seconds. The LTC6993 is part of theTimerBlox®familyofversatilesilicontimingdevices. FEATURES ■ Pulse Width Range: 1µs to 33.6 Seconds ■ Configured with 1 to 3 Resistors ■ Pulse Width Max Error: – <2.3 for Pulse Width > 512µs – <3.4 for Pulse Width of 8µs to 512µs – <4.9 for Pulse Width of 1µs to 8µs ■ Four LTC6993 Options Available: – Rising-Edge or Falling-Edge Trigger – Retriggerable or Non-Retriggerable ■ Configurable for Positive or Negative Output Pulse ■ Fast Recovery Time ■ 2.25V to 5.5V Single Supply Operation ■ 70µA Supply Current at 10µs Pulse Width ■ 500µs Start-Up Time ■ CMOS Output Driver Sources/Sinks 20mA ■ –55°C to 125°C Operating Temperature Range ■ Available in Low Profile (1mm) SOT-23 (ThinSOT™) and 2mm × 3mm DFN APPLICATIONS ■ Watchdog Timer ■ Frequency Discriminators ■ Missing Pulse Detection ■ Envelope Detection ■ High Vibration, High Acceleration Environments ■ Portable and Battery-Powered Equipment |
Product Description
| Type | Description |
| ANSC PART# | ANSC-LTC6993HS6-3#TRPBF |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Multivibrators | |
| Manufacturer | Original |
| Series | LTC®6993 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Logic Type | Monostable |
| Independent Circuits | 1 |
| Schmitt Trigger Input | No |
| Propagation Delay | 11 ns |
| Current - Output High, Low | 16mA, 16mA |
| Voltage - Supply | 2.25 V ~ 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | LTC6993 |

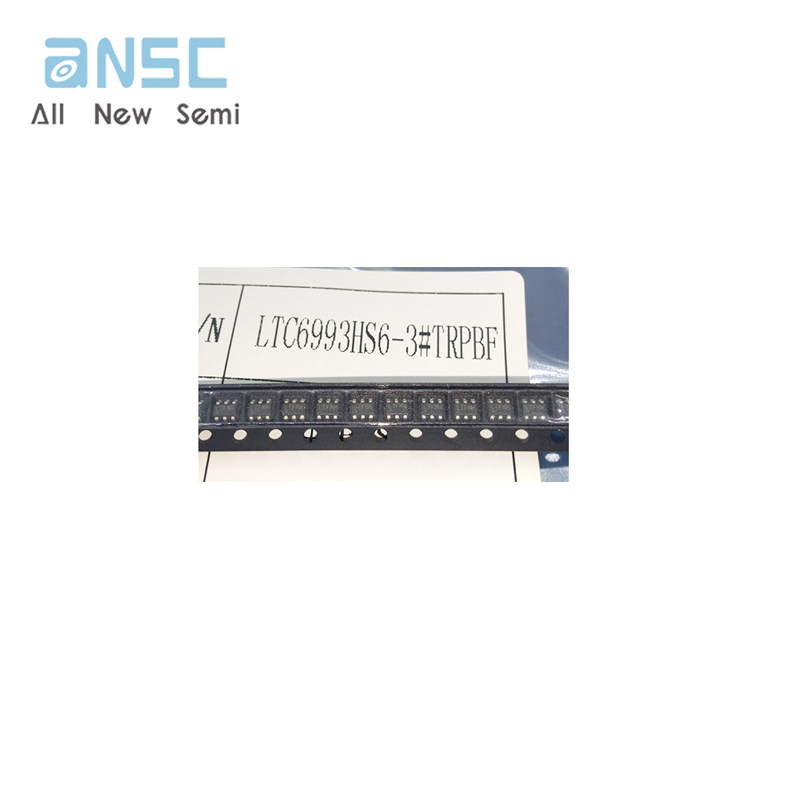

Product Photos

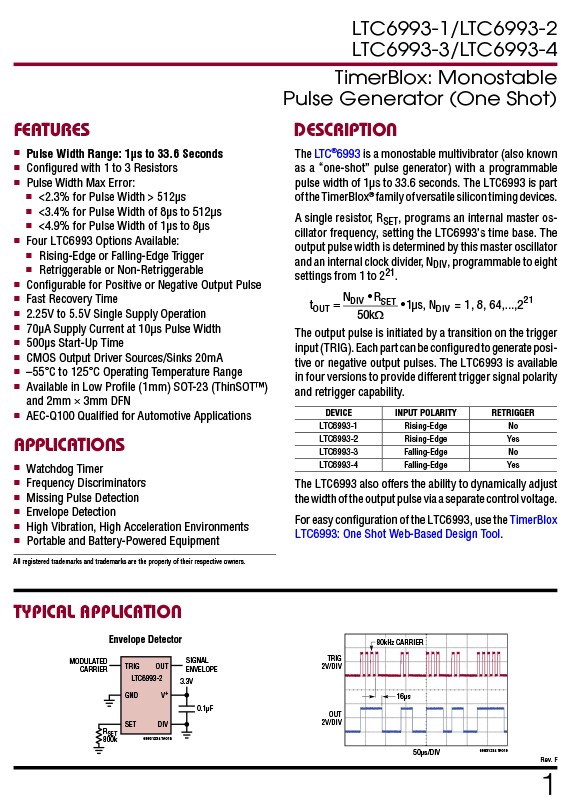

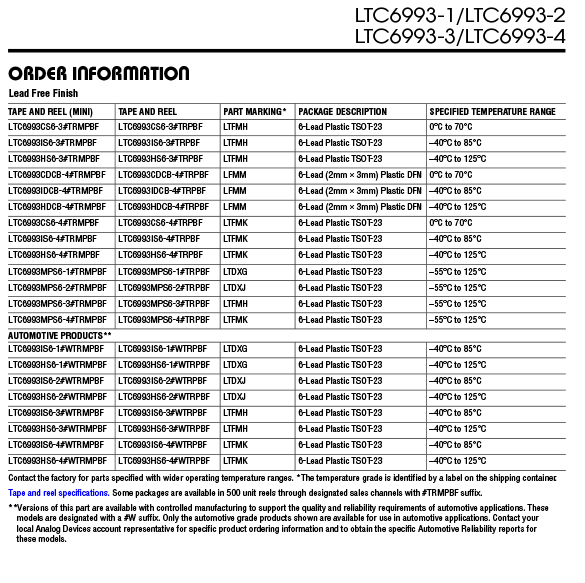

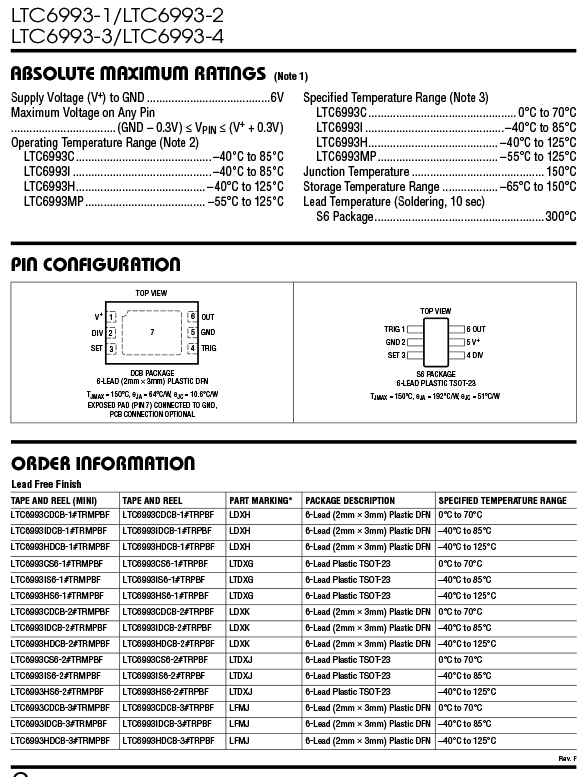

Product datasheet
For more information, please download
