Product Details
| General Description The MAX17040/MAX17041 are ultra-compact, low-cost, host-side fuel-gauge systems for lithium-ion (Li+) batteries in handheld and portable equipment. The MAX17040 is configured to operate with a single lithium cell and the MAX17041 is configured for a dual-cell 2S pack. Features ♦ Host-Side or Battery-Side Fuel Gauging 1 Cell (MAX17040) 2 Cell (MAX17041) ♦ Precision Voltage Measurement ±12.5mV Accuracy to 5.00V (MAX17040) ±30mV Accuracy to 10.00V (MAX17041) ♦ Accurate Relative Capacity (RSOC) Calculated from ModelGauge Algorithm ♦ No Offset Accumulation on Measurement ♦ No Full-to-Empty Battery Relearning Necessary ♦ No Sense Resistor Required ♦ 2-Wire Interface ♦ Low Power Consumption ♦ Tiny, Lead-Free, 8-Pin, 2mm x 3mm TDFN Package Applications Smart Phones MP3 Players Digital Still Cameras Digital Video Cameras Portable DVD Players GPS Systems Handheld and Portable Applications |
Product Description
| Type | Description |
| ANSC PART# | ANSC- MAX17040G+U |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Management | |
| Mfr | Original |
| Series | ModelGauge™ |
| Packaging | Strip |
| Part Status | / |
| Function | Battery Monitor |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Fault Protection | - |
| Interface | I2C |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (2x3) |
| Base Product Number | MAX17040 |

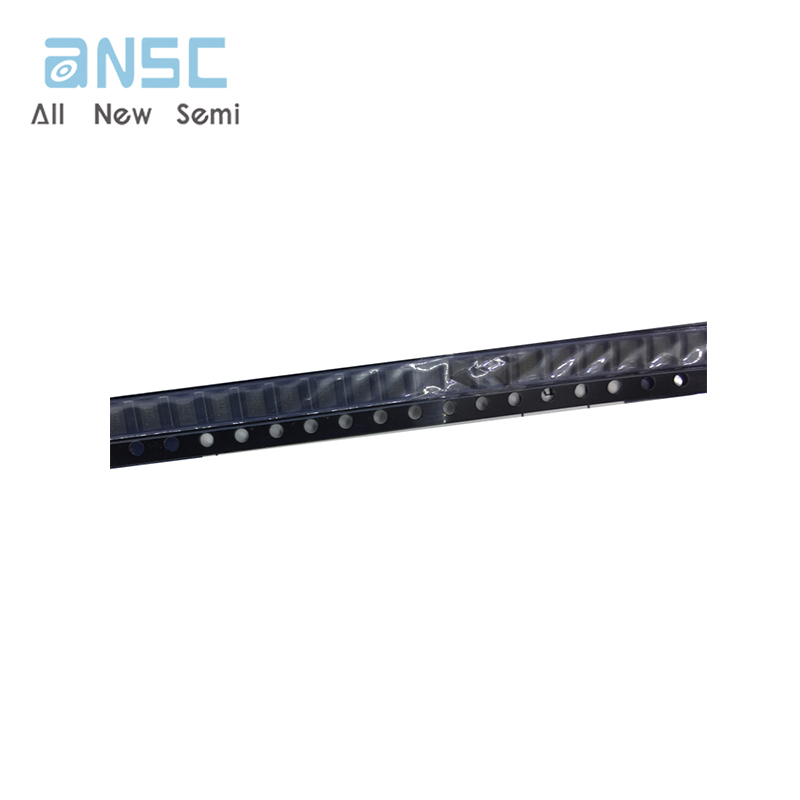

Product Photos

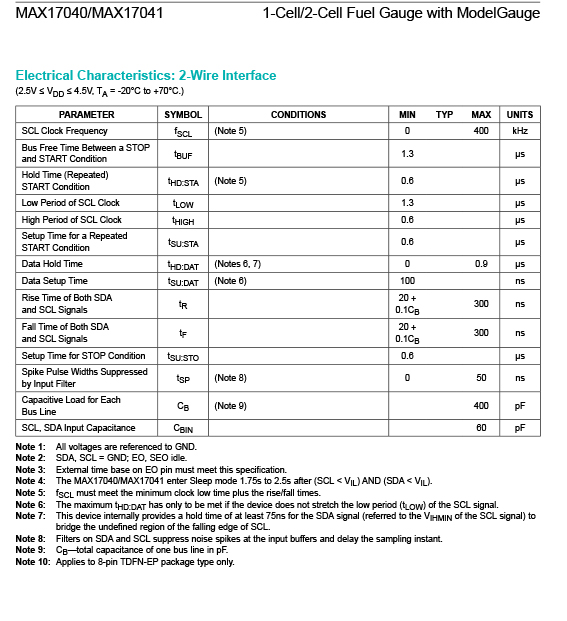

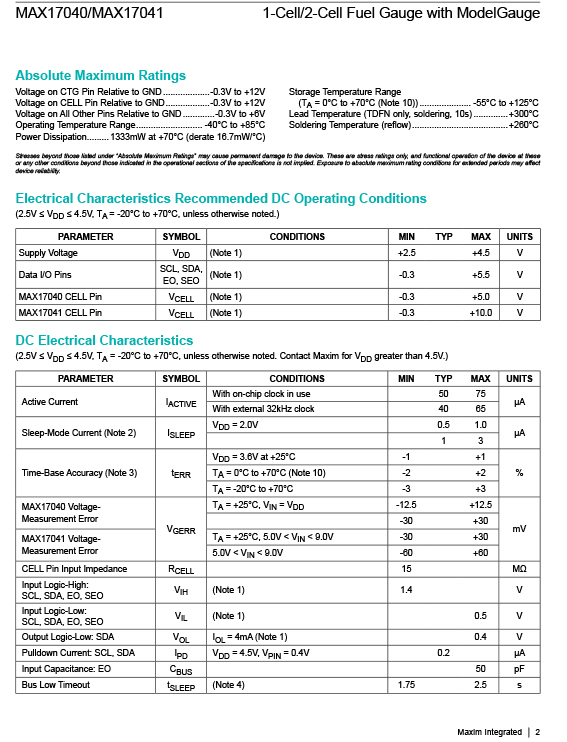

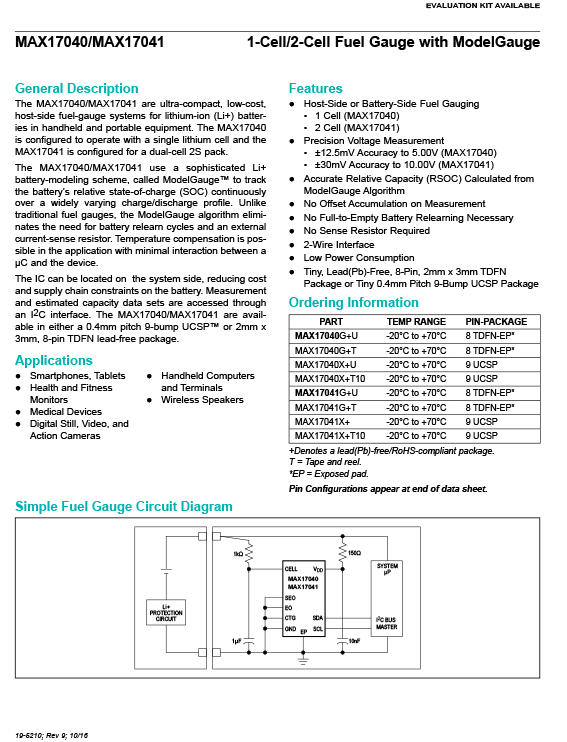

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
