Product Overview
The electrical component comes in 28-DIP (0.600, 15.24mm) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tube is used. In Through Hole, you'll find this switch device. In the multiplexer and demultiplexer, 16:1 represents the number of circuits. Operating temperature around 0°C~70°C TA extended. Into the electrical component body are injected 28 pins. Circuits number 1 make up this analogue multiplexer. Look for analog switch ic variants by searching with AD7506. A 300Ohm internal resistance characterizes this multiplexer. The datasheets for the 28 pins explain the functions. For this switch, a dual supply voltage is feasible, but it must not exceed 17VIntegrated with an analog IC SINGLE-ENDED MULTIPLEXER. This electrical part is compatible with 15V operating voltages. Among the inputs that can be operated are the 16 inputs.
Product Applications
AD7506JNZ Analog Switches & Multiplexers ICs applications.
· Audio and video switching
· Automatic test equipment
· Precision data acquisition
· Battery-powered systems
· Sample-and-hold systems
· Communication systems
· Data Acquisition Systems
· Relay Replacement
· Battery Powered Systems
· Existing multiplexer applications
(both fault-protected and nonfault-protected)
Product Description
| Type | Description |
| ANSC PART# | ANSC- AD7506JNZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 18Ohm |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 1.5µs, 1µs |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
| Base Product Number | AD7506 |

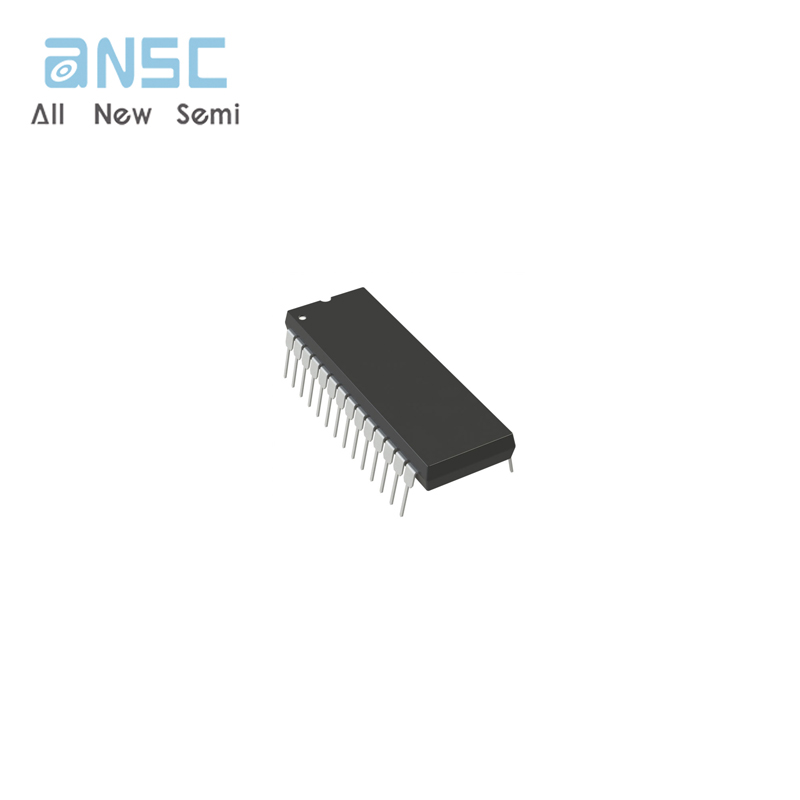

Product Photos

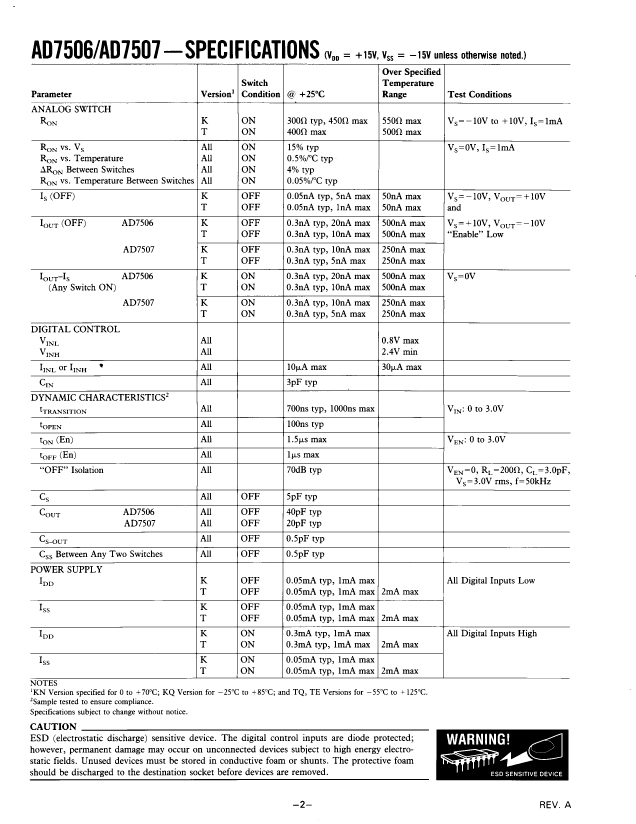

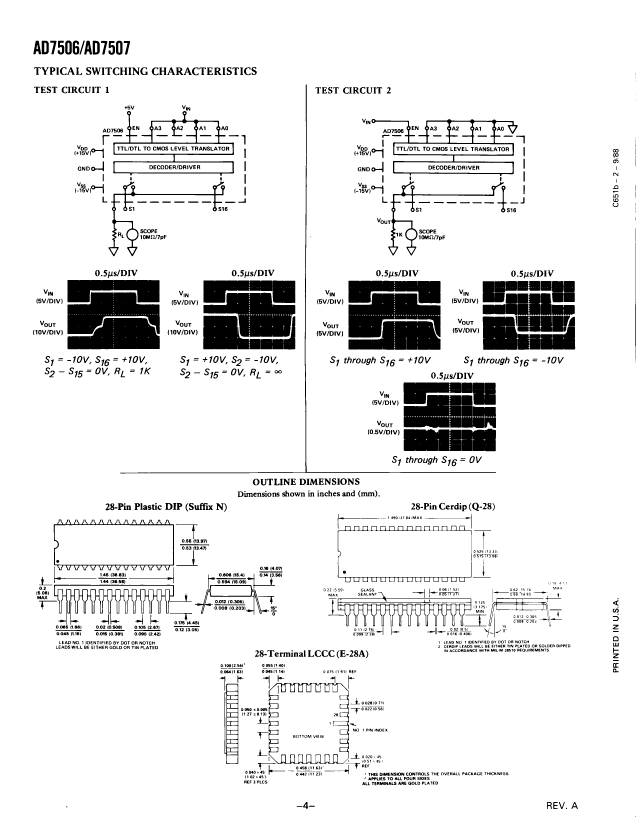

Product datasheet
