Product Overview

A Surface Mount mounting type is used for the device.The device should be powered by voltage supply ±2.4V~18V 4.8V~36V.RMS to DC converter is possible to package in a Tape & Reel (TR) way.For packaging, 20-WFQFN Exposed Pad, CSP units are used.Device 20 has a total of 20 pins.An 5V volt supply is used to power the component.Terminations of 20 are used in its construction.Best part of the device is that it contains a number of AD8436.-5V is equal to the negative supply voltage.In this case, the gadget's supply current is set to 300μA.When operating, the temperature should be greater than 0°C.70°C is the maximum operating temperature at this time.There remains a pin number 20 for the component.There are +-2.4/+-18/4.8/36V supplies available for this device.A DC DC switching regulator operates using a -18V supply.The maximum input voltage (Max) for this device is 3V.Part 950 kHz has a bandwith of -3db.

Product Features

Supply voltage of ±2.4V~18V 4.8V~36V
20 pins
AD8436 best part number
Operating supply current of 300μA
3V input voltage at maximum

Product Applications

AD8436JCPZ-RL applications of RMS to DC converters.

· Digital Multimeters

· Battery-Powered Instruments

· Panel Meters

· Process Control

· True RMS Digital Multimeters and Panel Meters

· True RMS AC + DC Measurements

Product Description

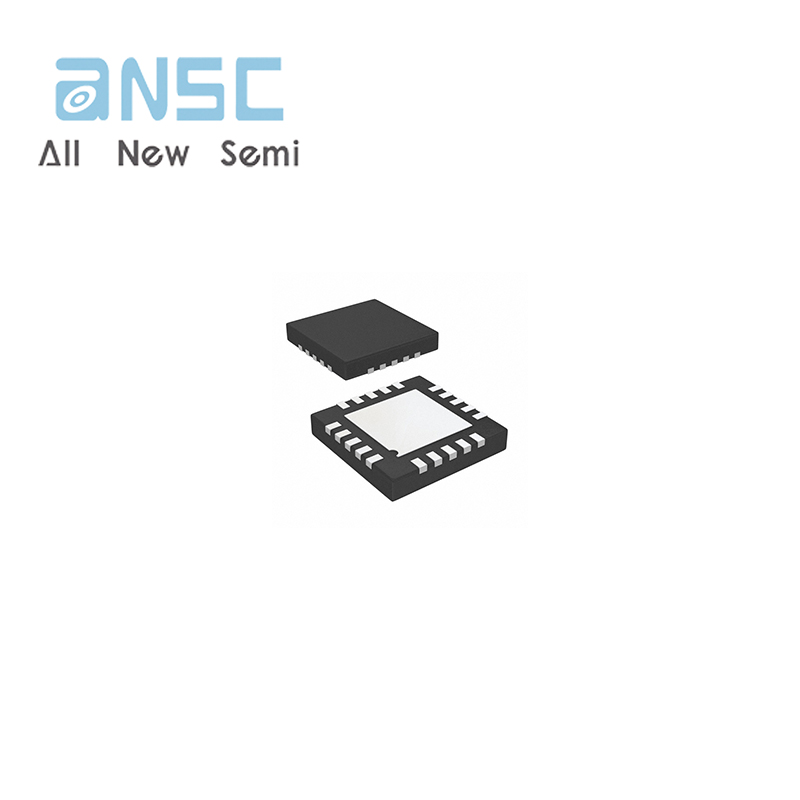

Product Photos

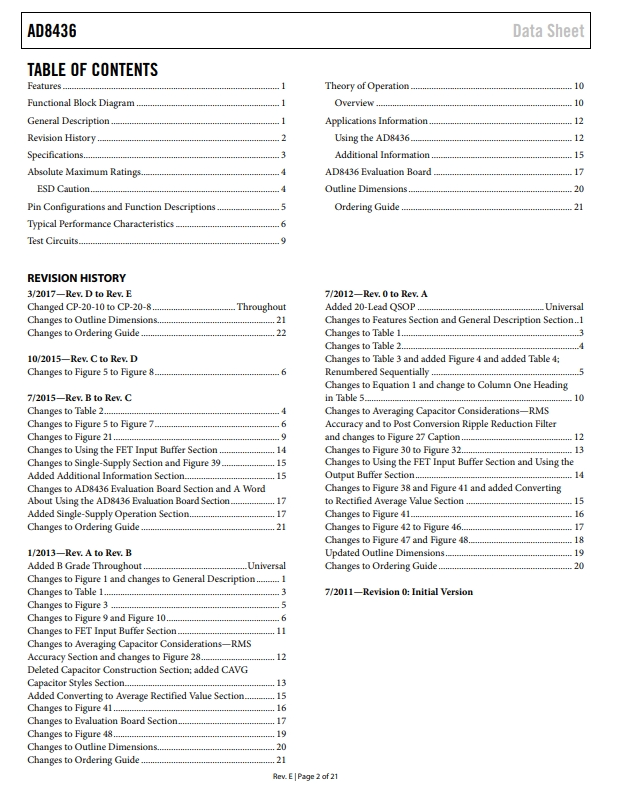

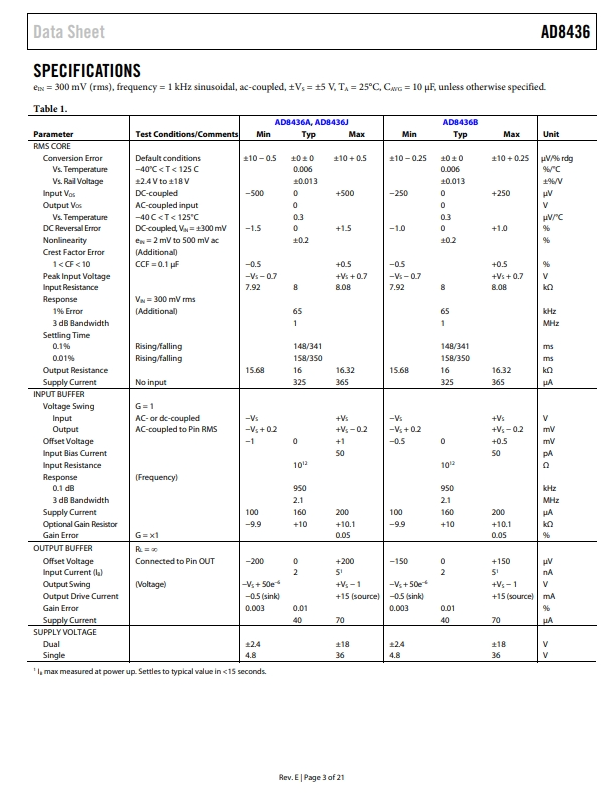

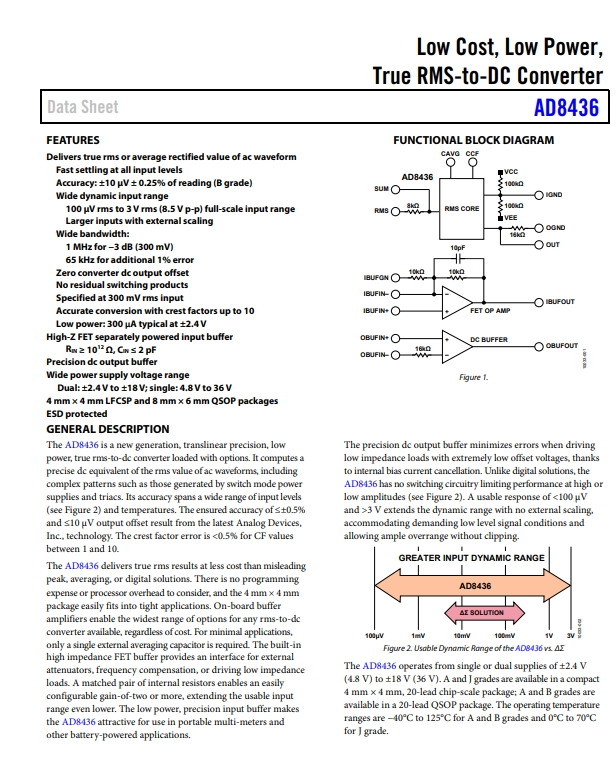

Product datasheet

For more information, please download
