Product Description
The ADG409BRZ is a high-performance, 4:1 differential multiplexer/demultiplexer.
This surface-mount device is designed to provide reliable and efficient signal switching in a variety of applications. With its 16-pin SOIC package and compact 1.5mm height, it is ideal for use in space-constrained systems.
Product Features
· High Channel-to-Channel Matching: The ADG409BRZ features a maximum channel-to-channel matching of 15Ω, ensuring consistent performance across all channels.
· Low Power Consumption: With a maximum power dissipation of 600mW and an operating supply current of 100μA, this device is designed to minimize power consumption and reduce heat generation.
· Fast Switching Times: The device has a propagation delay of 130ns, making it suitable for high-speed applications.
· High Isolation: The off-state isolation is nominal at 75 dB, providing excellent signal isolation and minimizing crosstalk.
Product Applications
· Primary Applications: The ADG409BRZ is suitable for use in high-speed data acquisition systems, medical devices, and industrial control systems where high-speed signal switching is required.
· Secondary Applications: It can also be used in audio and video processing systems, telecommunications equipment, and other applications where high-performance signal switching is necessary.
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG409BRZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | - |
| -3db Bandwidth | - |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADG409 |
Product Photos

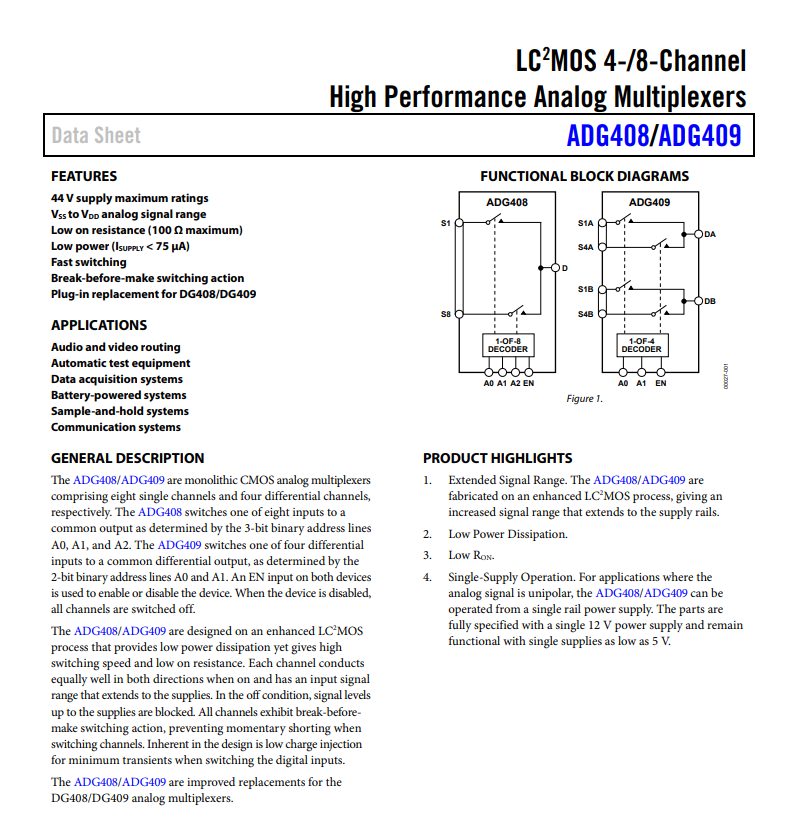

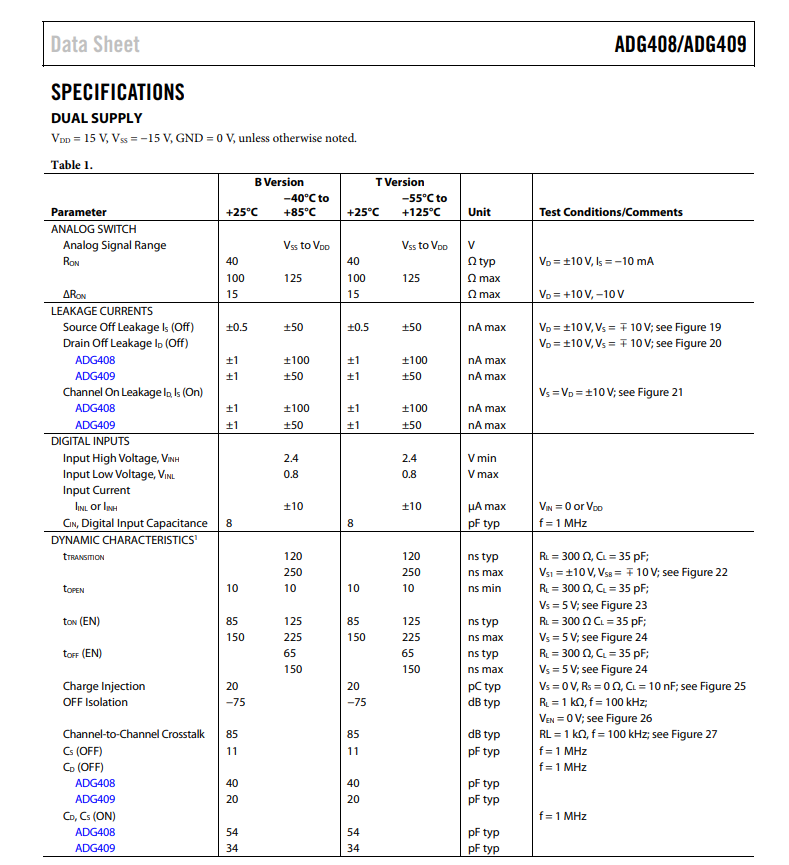

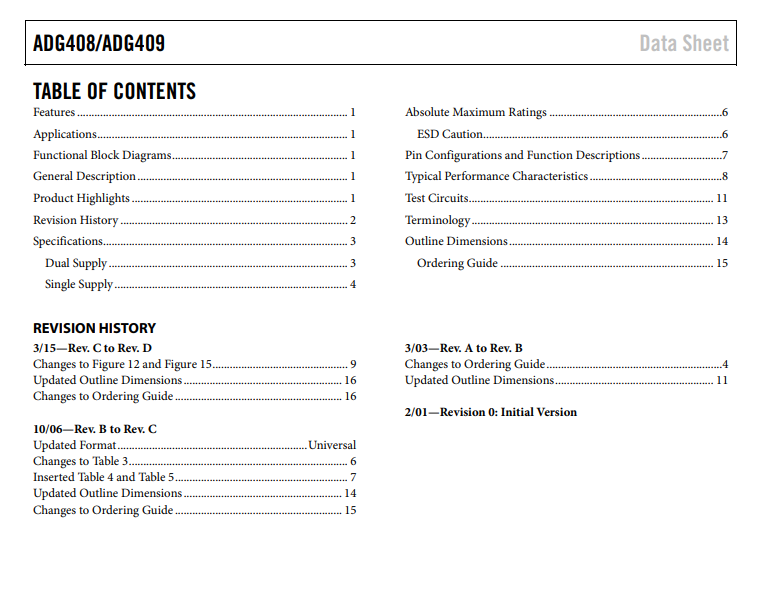

Product datasheet
For more information, please download
