Product Overview
The electronic part can be shipped overseas conveniently because it is packaged in 16-SOIC (0.154, 3.90mm Width). In order to provide high reliability, an advanced packaging method Tube is used. There is an analog multiplexer mounted in position Surface Mount. There is 1:1 ratio between the number of multiplexers and demultiplexers. Around -40°C~85°C TA is the extended operating temperature. In total, there are 16 terminations. This electronic part offers high-quality output due to its 4 channels. In the case of a voltage supply of 15V volts, the electrical part can be powered up and run. There are 16 pins injected into the electronic part body. The analog switch ics are built using SPST - NC switching circuits. Search with ADG431 if you are looking for analog multiplexer variants. It has an internal resistance of 24Ohm. The functions of 16 pins can be found in the datasheets. In normalcircumstances, users should not exceed 25V volts for the multiplexer. Dual, Single supply type digital switch with a low cost. 5V is the lowest voltage that should be fed to the electronic electronic part. In order to operate this switch device, it would need a current of 100pA. A digital multiplexer may suffer damage if voltage is applied above 100nA. There's no problem with dual supply voltage for this switch device. However, it shouldn't exceed 22V. In the case of dual power supplies, you should connect at least 13.5V. There is a voltage range of 12V operating voltages for the electrical part.
Product Features
4 Channels
Switch Circuit: SPST - NC
100pA Supply Current
Product Applications
ADG431BR Analog Switches & Multiplexers ICs applications.
· Isolation
· Medical
· Imaging
· Ultrasound
· Audio and video switching
· Automatic test equipment
· Precision data acquisition
· Battery-powered systems
· Sample-and-hold systems
· Communication systems
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG431BR |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 24Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.2Ohm |
| Voltage - Supply, Single (V+) | 12V |
| Voltage - Supply, Dual (V±) | ±15V |
| Switch Time (Ton, Toff) (Max) | 90ns, 60ns |
| -3db Bandwidth | - |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 9pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADG431 |

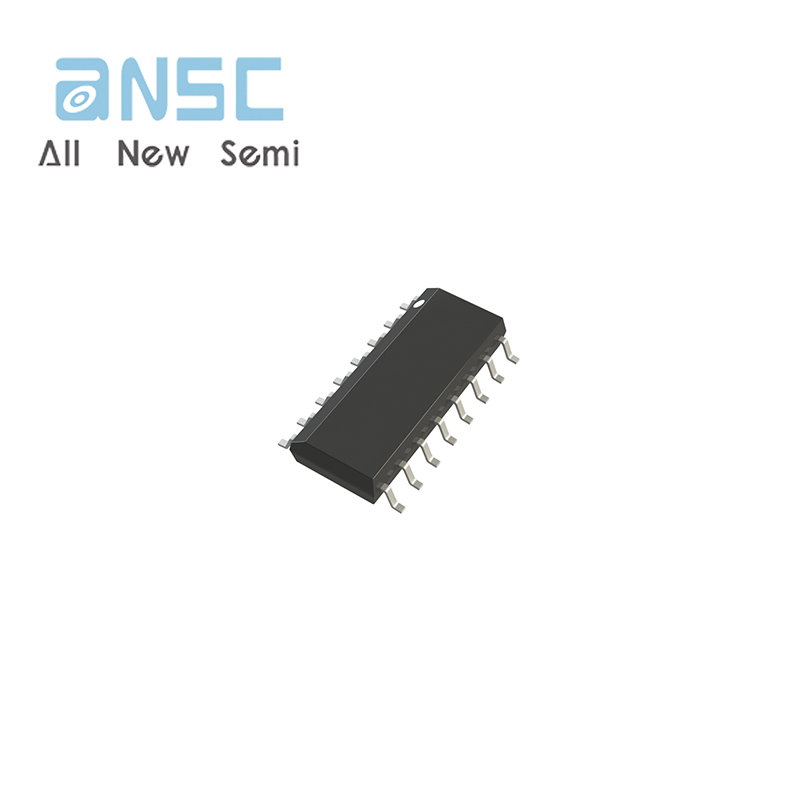

Product Photos
