Product Overview

Packed in 16-SOIC (0.154, 3.90mm Width), the electronic component is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. This analog switch is mounted in Surface Mount. The ratio between the number of multiplexer and demultiplexer circuits is 1:1. Extended operating temperature around -40°C~85°C TA. There are 16 terminations totally. By its 4 channels, the electronic component provides high-quality output. With a 15V voltage supply, the electrical component should be turned on and run. An electrical component of this type can be found in the 16 series. These analog multiplexers are built based on SPST - NC switching circuits. If you are looking for variants of the digital switch, trying search with ADG431. This digital multiplexer has 24Ohm internal resistance. Please refer to the datasheets for 16 pins functions. In a normalsituation, users should not supply the switches with voltage higher than 25V. A cost-effective Dual, Single supply type analogue multiplexer. The lowest voltage fed to the electronic component should be 5V. 100pA current would be enough for this multiplexer to operate. If put voltage greater than 100nA on the device, damage may be caused to the analogue multiplexer. Dual supply volatge is feasible for this multiplexer. But it should not go beyond 22V. You should attach at least 13.5V voltage if you are using dual power supply. This analog switch ic utilizes SEPARATE OUTPUT output. The electronic component can function from 12V. Don’t miss additional features of the electronic component such as: CAN ALSO OPERATE WITH 12V SUPPLY.

Product Features

4 Channels
Switch Circuit: SPST - NC
100pA Supply Current
Additional Features: CAN ALSO OPERATE WITH 12V SUPPLY

Product Applications

· High-Voltage

· Transmit

· Low-Voltage

· Isolation

· Medical

· Imaging

· Ultrasound

· Audio and video switching

· Automatic test equipment

· Precision data acquisition

Product Description

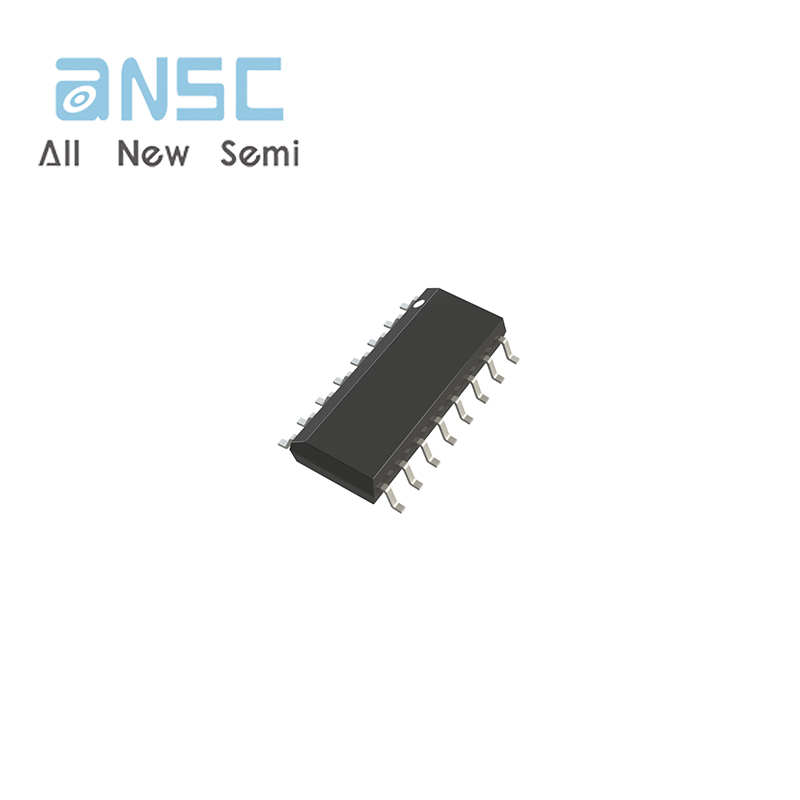

Product Photos

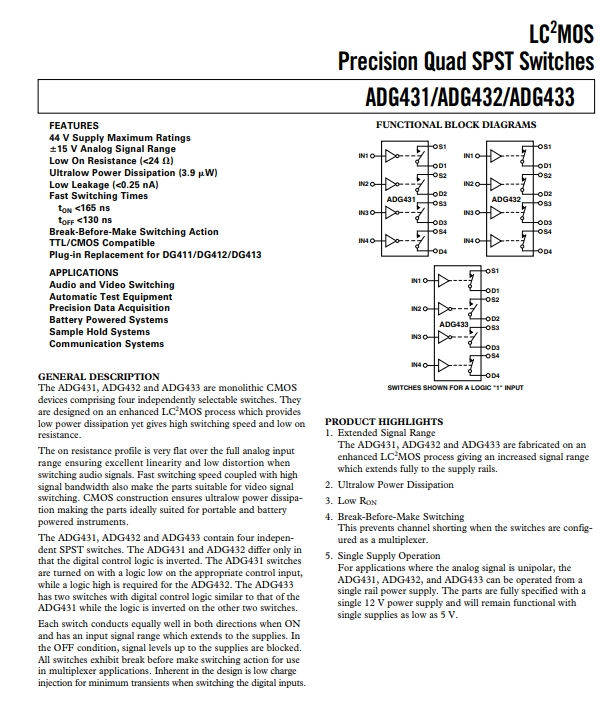

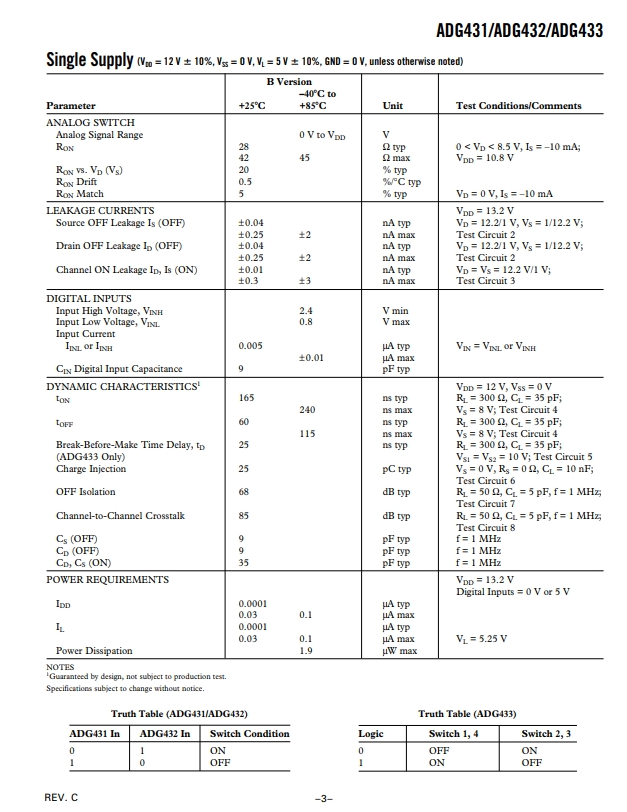

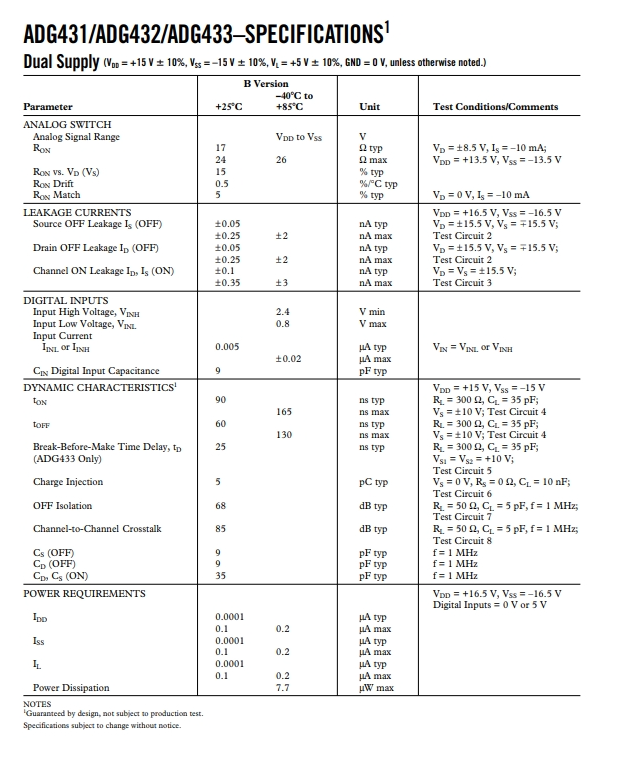

Product datasheet

For more information, please download
