Product Description
The ADG5404BRUZ is a single-ended 4:1 analog multiplexer (MUX) .
It is designed to provide high-performance switching in a variety of applications. This surface-mount device (SMD) is packaged in a 14-pin TSSOP (0.173, 4.40mm width) and is available in a tube packaging.
Product Features
· High Channel-to-Channel Matching: The ADG5404BRUZ features a channel-to-channel matching of 350mΩ, ensuring low crosstalk and high signal integrity.
· Low Power Consumption: With a maximum power dissipation of 2.9mW, this MUX is suitable for battery-powered devices and other applications where power efficiency is crucial.
· Wide Operating Temperature Range: The device operates from -40°C to 125°C, making it suitable for use in a wide range of environments.
· High Isolation: The off-state isolation is 78 dB, providing excellent isolation between channels.
· Fast Switching Times: The switch-on time is 278ns, and the switch-off time is 142ns, allowing for fast switching and low latency.
Product Applications
· Primary Applications: The ADG5404BRUZ is suitable for use in a variety of applications, including audio and video processing, data acquisition, and medical devices.
· Secondary Applications: It can also be used in other applications such as industrial control systems, automotive electronics, and telecommunications equipment.
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG5404BRUZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 4:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 350mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 185ns, 142ns |
| -3db Bandwidth | 54MHz |
| Charge Injection | 290pC |
| Channel Capacitance (CS(off), CD(off)) | 18pF, 88pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -58dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | ADG5404 |
Product Photos

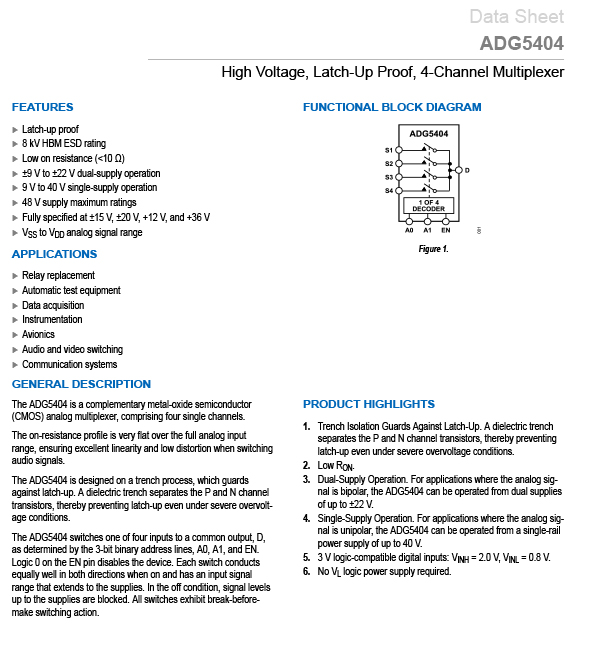

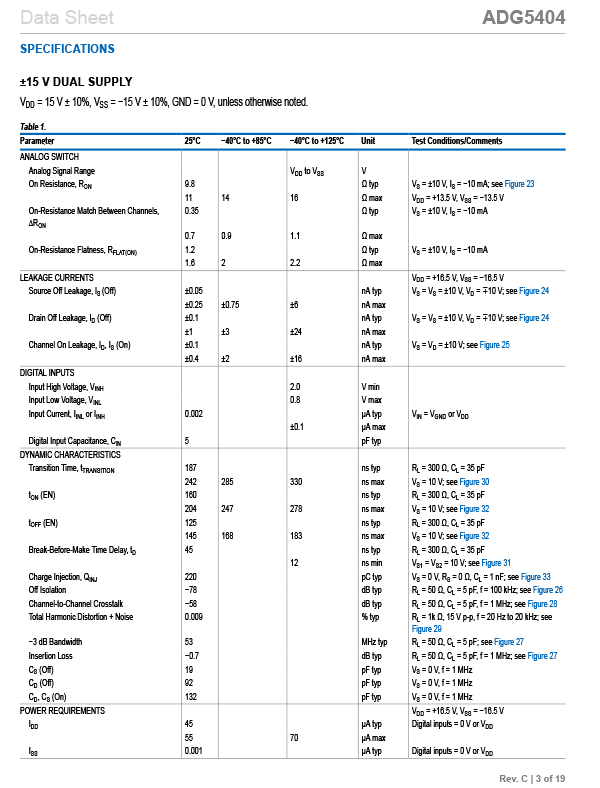

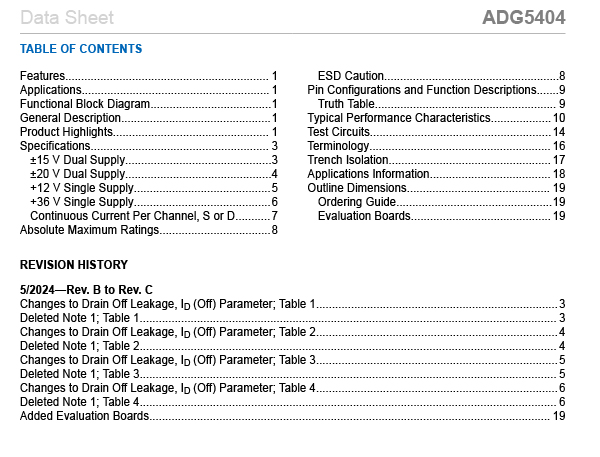

Product datasheet
