Product Overview
As the electronic part is packed in 16-TSSOP (0.173, 4.40mm Width), international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tube. The multiplexer is located in Surface Mount. 8:1 is the number of circuits in the multiplexer and demultiplexer. Operating temperature extended to -40°C~125°C TA. Total terminations are 16. The electronic part provides high-quality output because it has 8 channels. Powered by a 2.5V voltage supply, the electrical part should be switched on and run. The electrical component body receives 16 pins. There are 1 circuits in this switch device. Try searching with ADG708 to find analog multiplexer variants. An switch multiplexer with 4.5Ohm internal resistance has a value of 4.5Ohm. Datasheets for 16 pin functions are available upon request. Multiplexers should not be powered above 5.5V in normal situations. The lowest voltage the electronic part should receive is 1.8V. An operating current of 1nA would be sufficient for this switch device. When the digital multiplexer is charged above 1μA, damage can occur. An analog IC with the number SINGLE-ENDED MULTIPLEXER is integrated into this board. 5V operating voltages can be used with this electrical part. Operating the 8 inputs requires 8 inputs. It has a Drain to Source resistance of 4.5Ohm ohms.
Product Features
8 Channels
1nA Supply Current
Drain-to-Source resistance: 4.5Ohm
Product Applications
ADG708CRUZ Analog Switches & Multiplexers ICs applications.
· Imaging
· Ultrasound
· Audio and video switching
· Automatic test equipment
· Precision data acquisition
· Battery-powered systems
· Sample-and-hold systems
· Communication systems
· Data Acquisition Systems
· Relay Replacement
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG708CRUZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 4.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 400mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 14ns, 8ns (Typ) |
| -3db Bandwidth | 55MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -80dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | ADG708 |

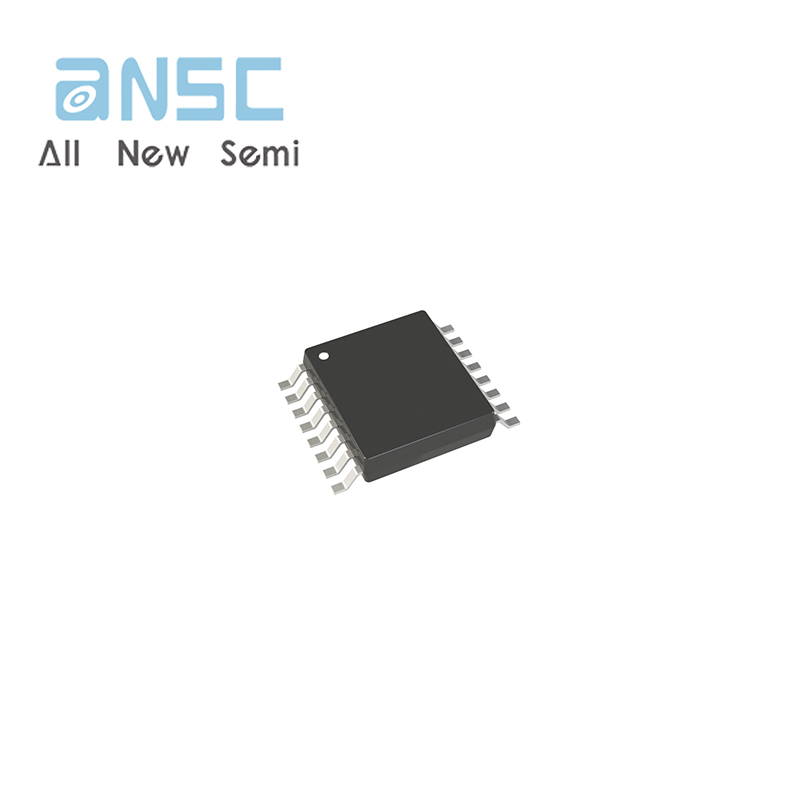

Product Photos

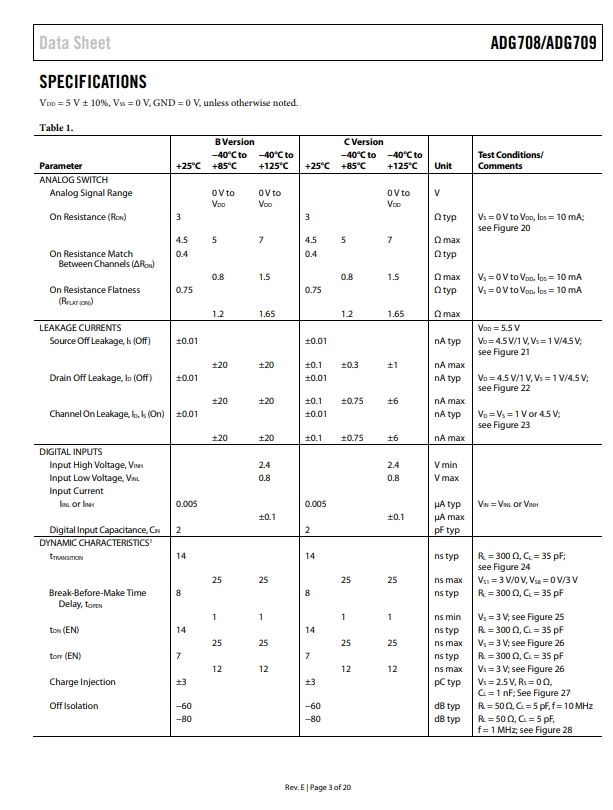

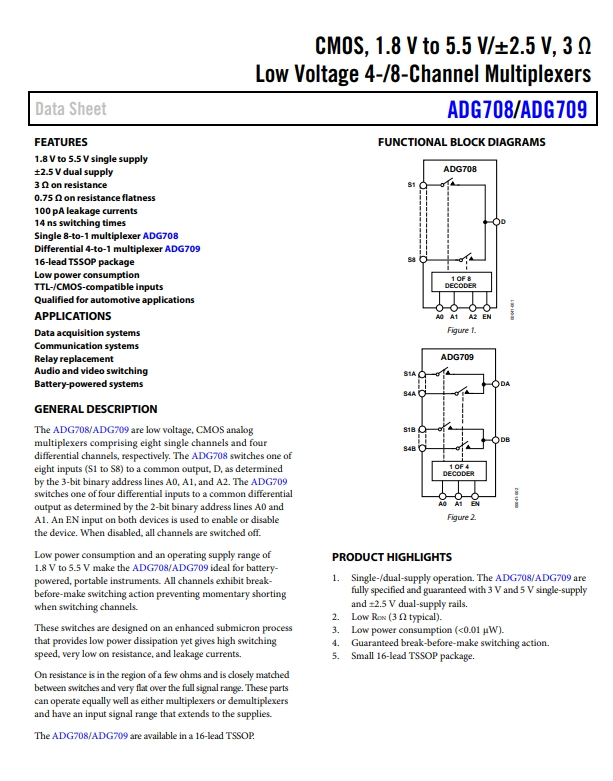

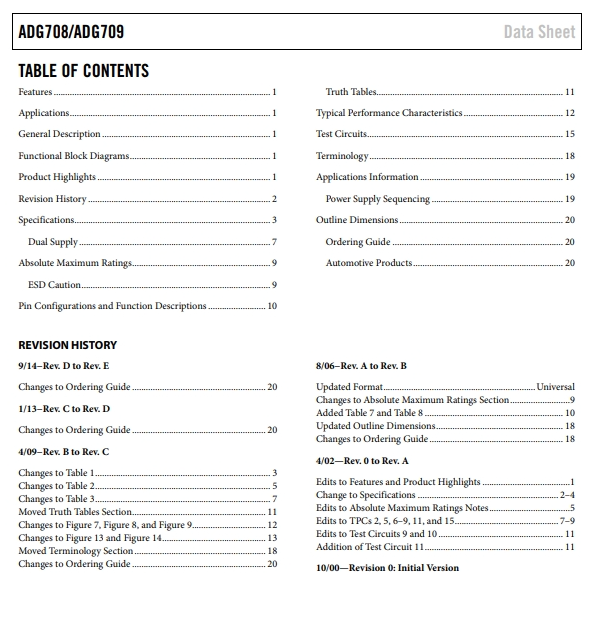

Product datasheet
For more information, please download
