Product Features

10BASE-T1L IEEE Standard 802.3cg-2019 compliant

 Cable reach up to 1700 m

 Integrated switch with SPI

 Supports OPEN Alliance 10BASE-T1x MACPHY SPI

 Frame forwarding rules between ports and host

 16 MAC address filters

 High and low priority queues with 28 kB buffer

 Cut through or store and forward operation

 IEEE 1588 timestamp support

 Statistic counters

 Low power consumption: 77 mW (dual supply, 1.0 V p-p)

 Supports 1.0 V p-p and 2.4 V p-p transmit levels

 2-pin MDI (receive, transmit)

 Internal termination resistors

 Autonegotiation capability

 Diagnostics

 Cable fault detection with TDR

 Link quality indicator with MSE

 Link diagnostics and IEEE test modes

 25 MHz crystal or external clock input

 Single or dual supply with 1.8 V or 3.3 V operation

 Electromagnetic compatibility (EMC) test standards

•  IEC 61000-4-4 electrical fast transient (±4 kV)

•  IEC 61000-4-2 ESD (±4 kV contact discharge)

•  IEC 61000-4-2 ESD (±8 kV air discharge)

•  IEC 61000-4-6 conducted immunity (10 V/m)

•  IEC 61000-4-5 surge (±4 kV)

•  IEC 61000-4-3 radiated immunity (Class A)

•


 EN55032 radiated emissions (Class B)

 Small package: 48-lead, 7 mm × 7 mm LFCSP

 Temperature range

 Industrial: −40°C to +85°C

 Extended: −40°C to +105°C

Product Applications

 Building automation and fire safety

 Factory automation

 Condition monitoring and machine connectivity

Product Description

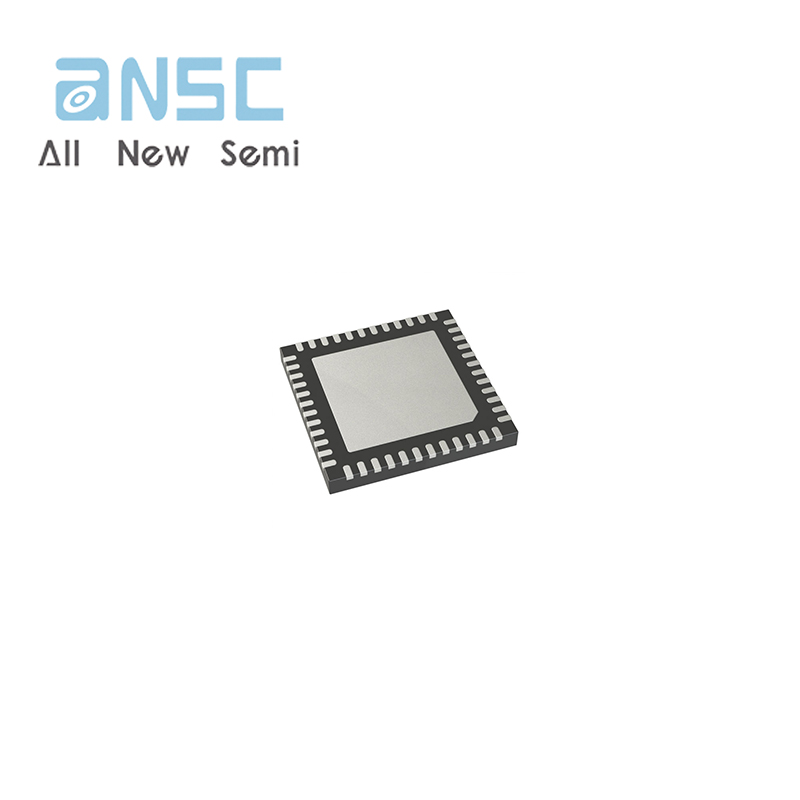

Product Photos
