Product Description
The ADUM1201CRZ is a high-performance, digital isolator . designed for a wide range of applications. This 2-channel, unidirectional isolator is built on the iCoupler? platform, offering exceptional isolation performance and reliability.
Product Features
· 2-channel, unidirectional digital isolator
· Operating temperature range of -40°C to 105°C
· Supply voltage range of 2.7V to 5.5V
· Isolation voltage of 2500Vrms
· Data rate of 25Mbps
· Propagation delay of 45ns
· Rise and fall times of 2.5ns
· Pulse width distortion of 3ns
· Common mode transient immunity of 25kV/μs
· Surface mount package with 8 pins
· Lead-free and RoHS3 compliant
Product Applications
· Industrial automation and control systems
· Medical devices and equipment
· Automotive systems and components
· Aerospace and defense applications
· Industrial sensors and transducers
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - ADUM1201CRZ |
|
Category |
Isolators Digital Isolators |
|
Mfr |
Original |
|
Series |
iCoupler® |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Technology |
Magnetic Coupling |
|
Type |
General Purpose |
|
Isolated Power |
No |
|
Number of Channels |
2 |
|
Inputs - Side 1/Side 2 |
1/1 |
|
Channel Type |
Unidirectional |
|
Voltage - Isolation |
2500Vrms |
|
Common Mode Transient Immunity (Min) |
25kV/µs |
|
Data Rate |
25Mbps |
|
Propagation Delay tpLH / tpHL (Max) |
45ns, 45ns |
|
Pulse Width Distortion (Max) |
3ns |
|
Rise / Fall Time (Typ) |
2.5ns, 2.5ns |
|
Voltage - Supply |
2.7V ~ 5.5V |
|
Operating Temperature |
-40°C ~ 105°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SOIC |
|
Base Product Number |
ADUM1201 |
Product Photos

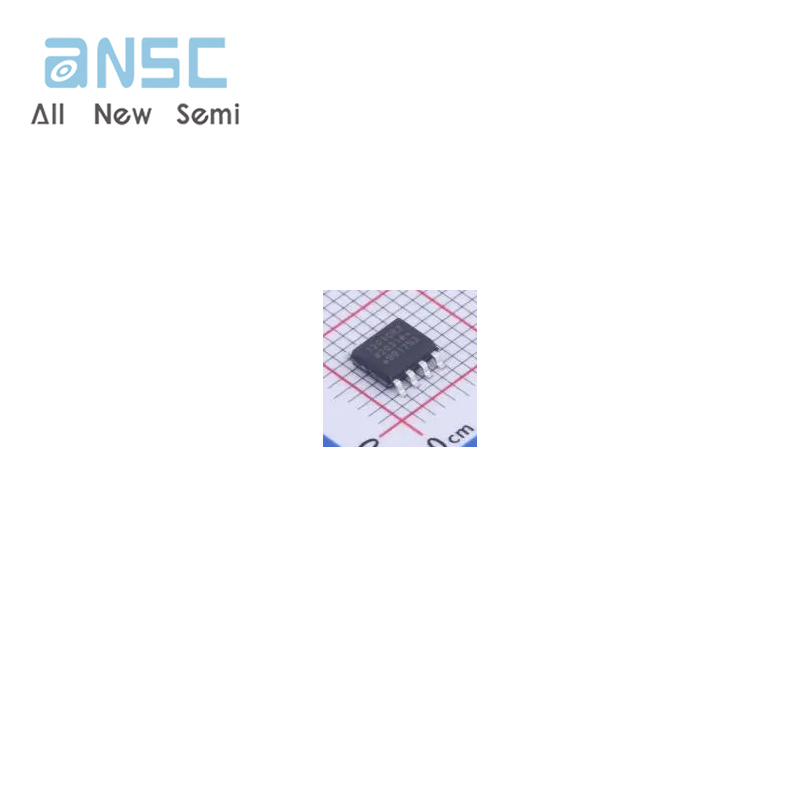

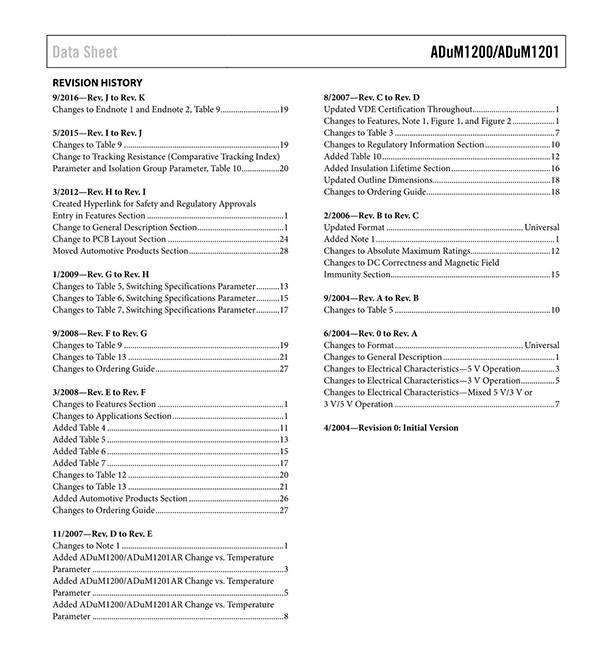

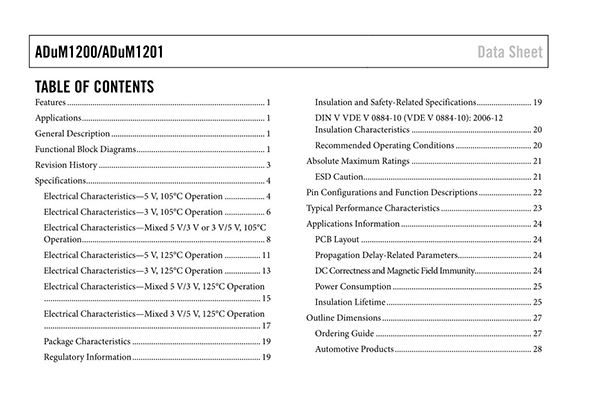

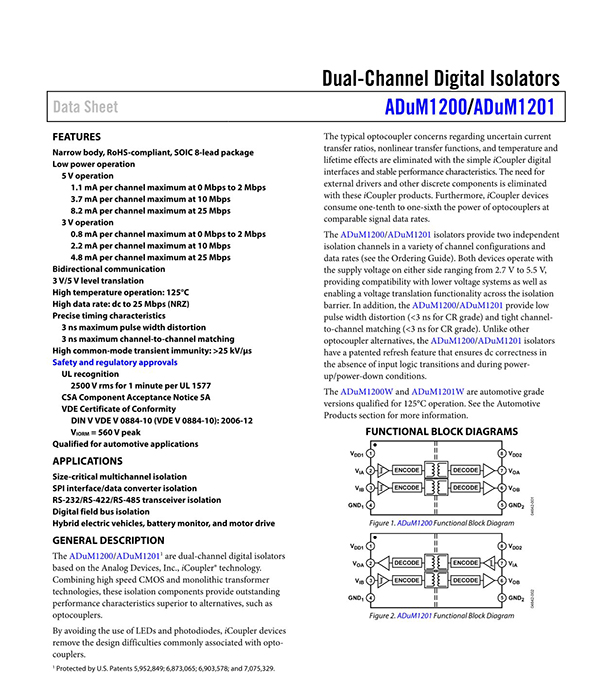

Product datasheet
