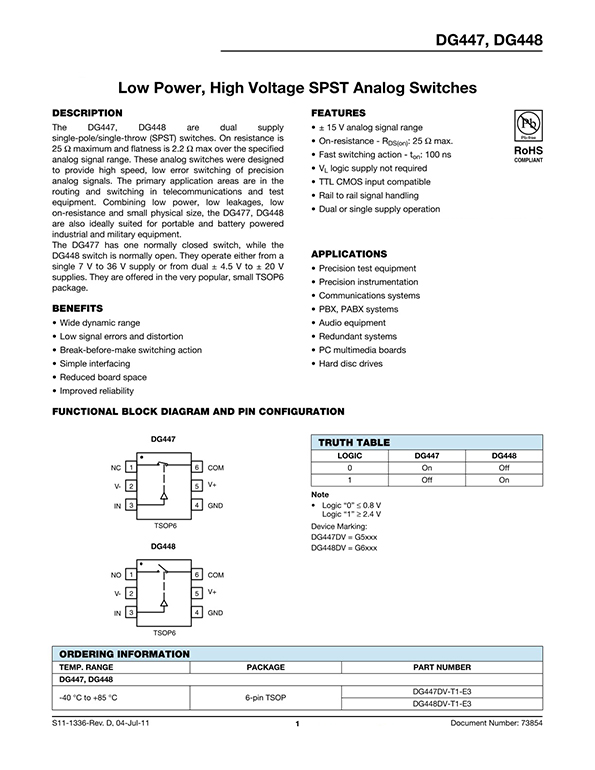

| DESCRIPTION The DG447 and DG448 are dual supply single-pole/single throw (SPST) switches. On resistance is 25 Ω maximum and flatness is 2.2 Ω max over the specified analog signal range. FEATURES • ± 15 V Analog Signal Range • On-Resistance - rDS(on): 25 Ω max • Fast Switching Action - TON: 100 ns • VL Logic Supply Not Required • TTL CMOS Input Compatible • Rail To Rail Signal Handling • Dual Or Single Supply Operation BENEFITS • Wide Dynamic Range • Low Signal Errors and Distortion • Break-Before-Make Switching Action • Simple Interfacing • Reduced Board Space • Improved Reliability APPLICATIONS • Precision Test Equipment • Precision Instrumentation • Communications Systems • PBX, PABX Systems • Audio Equipment • Redundant Systems • PC Multimedia Boards • Hard Disc Drives |

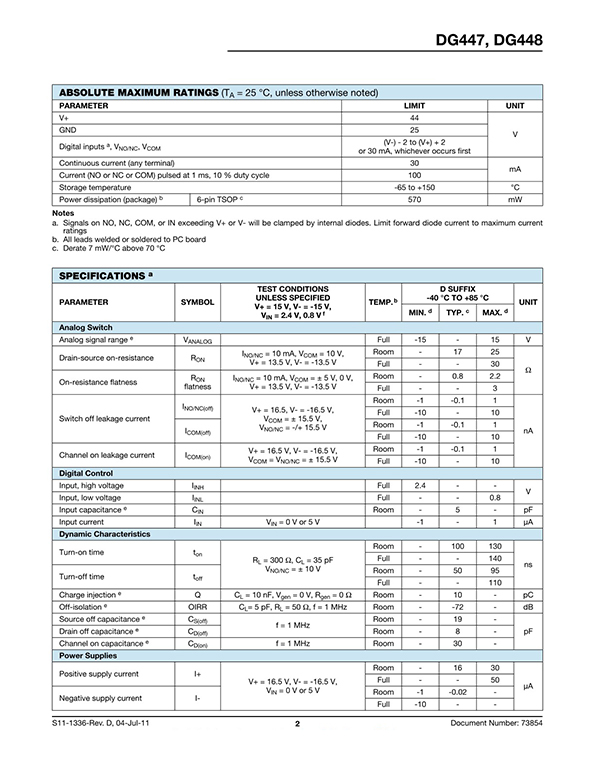

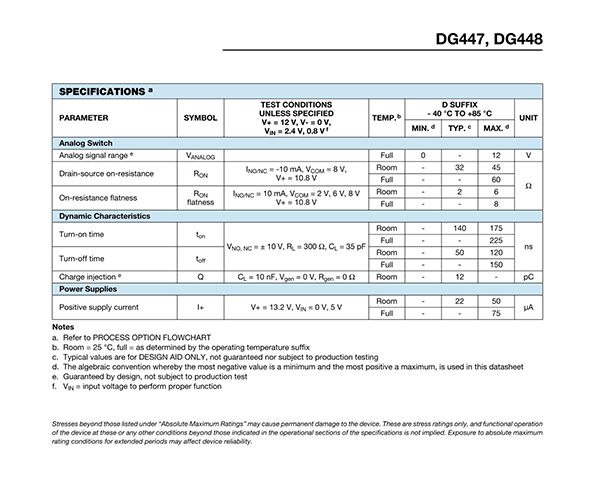

Product Description
| Type | Description |
| ANSC PART# | ANSC- DG447DV-T1-E3 |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Switch Circuit | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 25Ohm |
Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 7V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 130ns, 95ns |
| -3db Bandwidth | - |
| Charge Injection | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 8pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | 6-TSOP |
| Base Product Number | DG447 |
