Product Details
| Super Voltage Converters The ICL7660S and ICL7660A Super Voltage Converters are monolithic CMOS voltage conversion ICs that guarantee significant performance advantages over other similar devices. They are direct replacements for the industry standard ICL7660 offering an extended operating supply voltage range up to 12V, with lower supply current. A Frequency Boost pin has been incorporated to enable the user to achieve lower output impedance despite using smaller capacitors. All improvements are highlighted in the “Electrical Specifications” section on page 3. Critical parameters are guaranteed over the entire commercial and industrial temperature ranges. Features • Guaranteed Lower Max Supply Current for All Temperature Ranges • Wide Operating Voltage Range: 1.5V to 12V • 100% Tested at 3V • Boost Pin (Pin 1) for Higher Switching Frequency • Guaranteed Minimum Power Efficiency of 96% • Improved Minimum Open Circuit Voltage Conversion Efficiency of 99% • Improved SCR Latchup Protection • Simple Conversion of +5V Logic Supply to ±5V Supplies • Simple Voltage Multiplication VOUT = (-)nVIN • Easy to Use; Requires Only Two External Non-Critical Passive Components • Improved Direct Replacement for Industry Standard ICL7660 and Other Second Source Devices • Pb-Free Available (RoHS Compliant) Applications • Simple Conversion of +5V to ±5V Supplies • Voltage Multiplication VOUT = ±nVIN • Negative Supplies for Data Acquisition Systems and Instrumentation • RS232 Power Supplies • Supply Splitter, VOUT = ±VS |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- ICL7660SMTV |
| Ihs Manufacturer | Original |
| Part Package Code | BCY |
| Package Description | METAL CAN-8 |
| Pin Count | 8 |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER |
| Input Voltage-Max | 12 V |
| Input Voltage-Min | 1.5 V |
| Input Voltage-Nom | 5 V |
| JESD-30 Code | O-MBCY-W8 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 0.02 A |
| Package Body Material | METAL |
| Package Code | BCY |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Switcher Configuration | DOUBLER INVERTER |
| Switching Frequency-Max | 35 kHz |
| Technology | CMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |

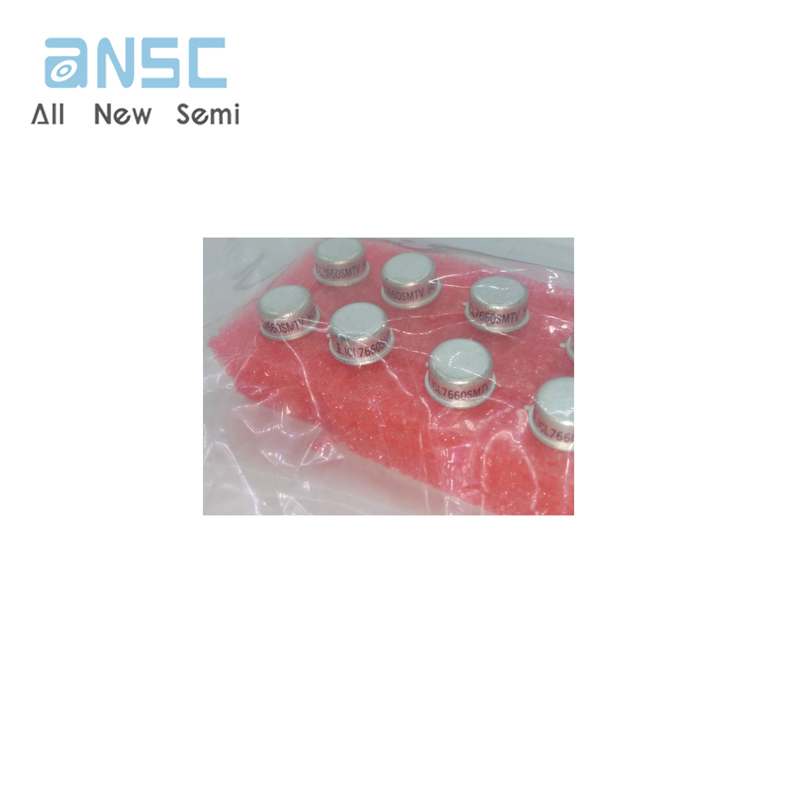

Product Photos

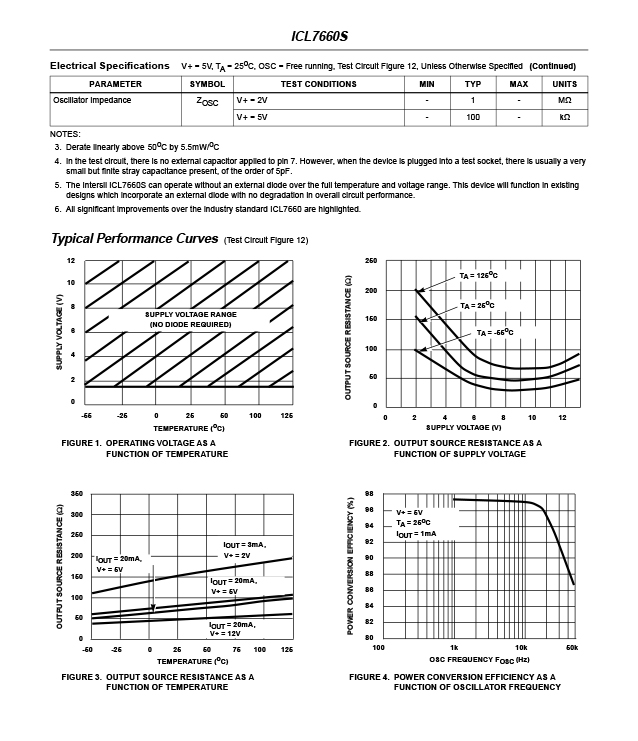

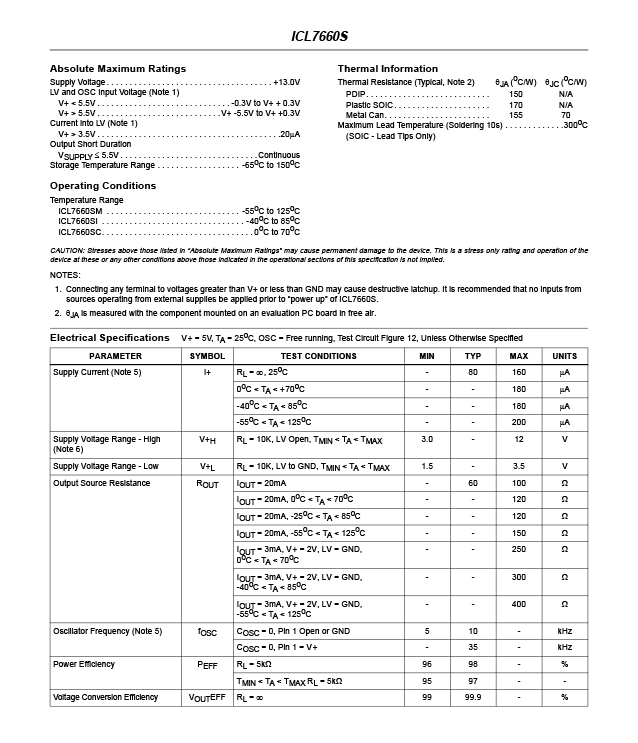

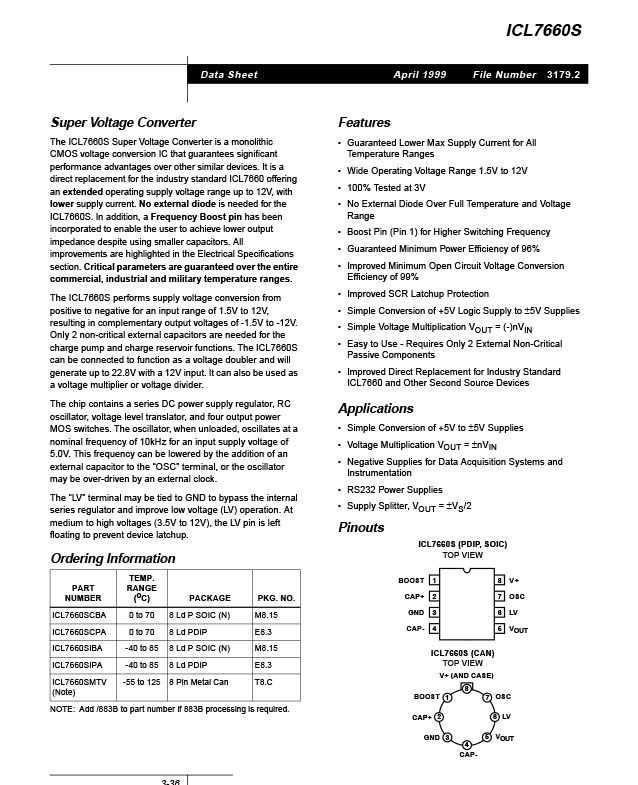

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
