Product Overview
This product is packaged in a Header carton.Surface Mount is the mounting type for the device.The product is packaged in a Tube case.It's part of the WR-PHD Series.The device has 4 pins.Mounting of the part is based on Surface Mount.250V is the operating voltage for this memory.It runs at -40°C~125°C Operating Temperature.
Product Features
WR-PHD series
Product Applications
61000418221 Rectangular Connectors applications.
· Industrial Automation
· Transportation
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
Product Description
| Type | Description |
| ANSC PART# | ANSC - 61000418221 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | / |
| Series | WR-PHD |
| Packaging | Tube |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.236" (6.00mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.100" (2.54mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |

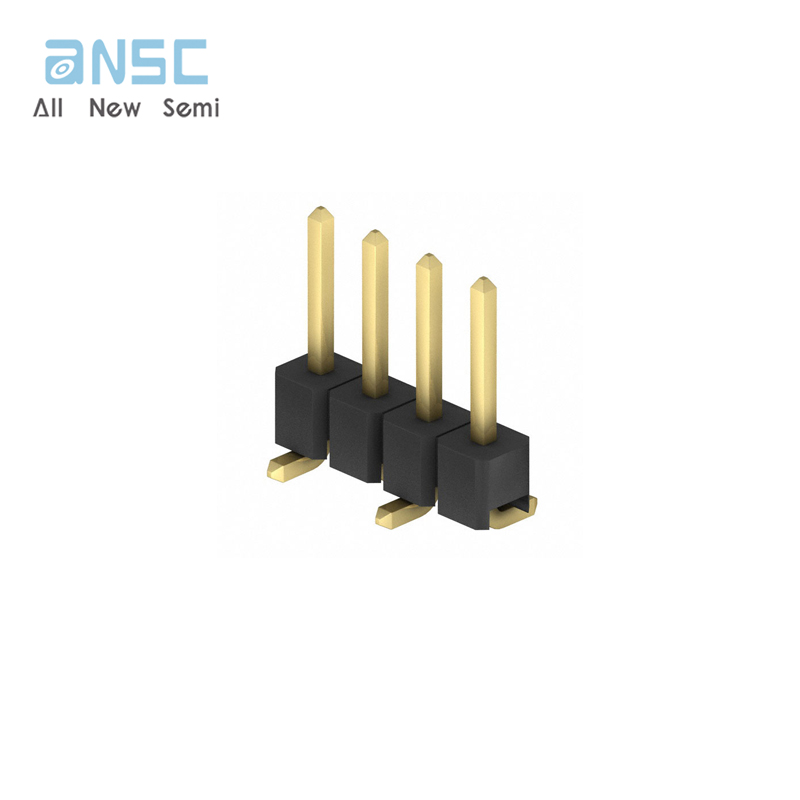

Product Photos

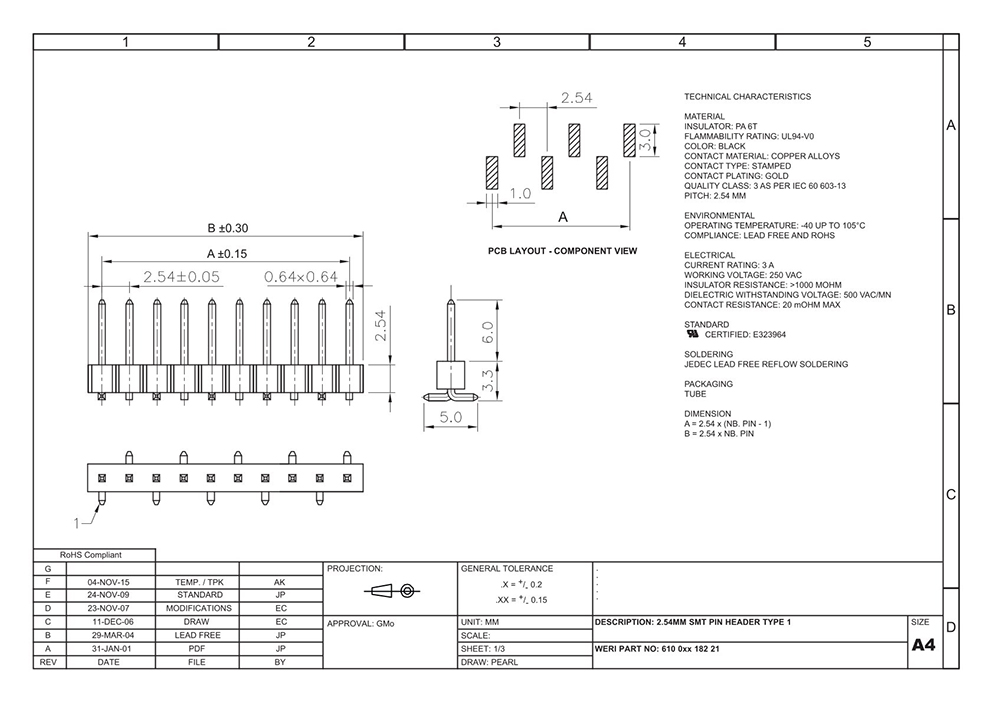

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate

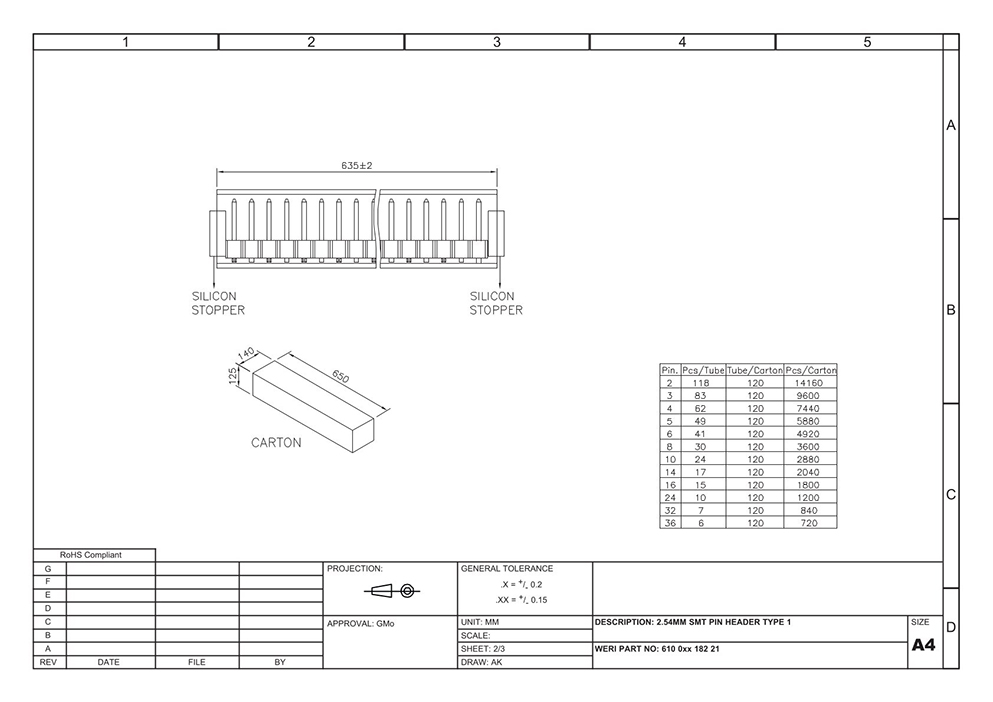

Standard packaging
