Product Details
| Description The LM1085IS-5.0/NOPB is a highly reliable and efficient linear voltage regulator , designed to provide a stable output voltage of 5V. This surface-mount device (SMD) is part of the LM1085 family, known for its low dropout voltage and high current handling capabilities. The LM1085IS-5.0/NOPB is ideal for applications requiring a precise and consistent voltage supply in a compact package. Features High Current Handling: The LM1085IS-5.0/NOPB can handle a maximum output current of 3A, making it suitable for power-hungry applications. Low Dropout Voltage: With a dropout voltage of 1.5V at 3A, this regulator ensures efficient operation even at high load conditions. Wide Operating Temperature Range: The device operates reliably between -40°C and 125°C, making it suitable for use in various environmental conditions. Protection Features: Built-in over-current and over-temperature protection features ensure safe operation and prevent damage to the device. Low Quiescent Current: The quiescent current is only 10mA, minimizing power consumption when the output is not in use. Compliance with Industry Standards: The device is ROHS3 compliant and meets JESD-609 standards for reliability. Applications Primary Applications: Power Supplies for Industrial Equipment DC-DC Converters Battery Management Systems Medical Devices Secondary Applications: Automotive Electronics Consumer Electronics Telecommunications Equipment Aerospace Systems |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- LM1085IS-5.0/NOPB |
| PART# | LM1085IS-5.0/NOPB |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 25V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 68dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263 (DDPAK-3) |
| Base Product Number | LM1085 |

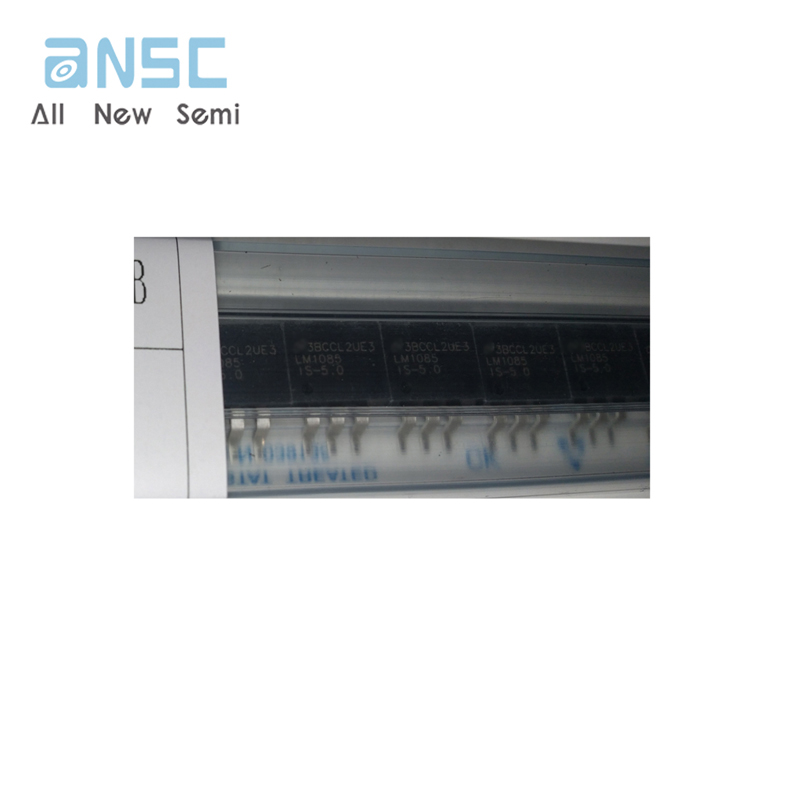

Actual image of the product

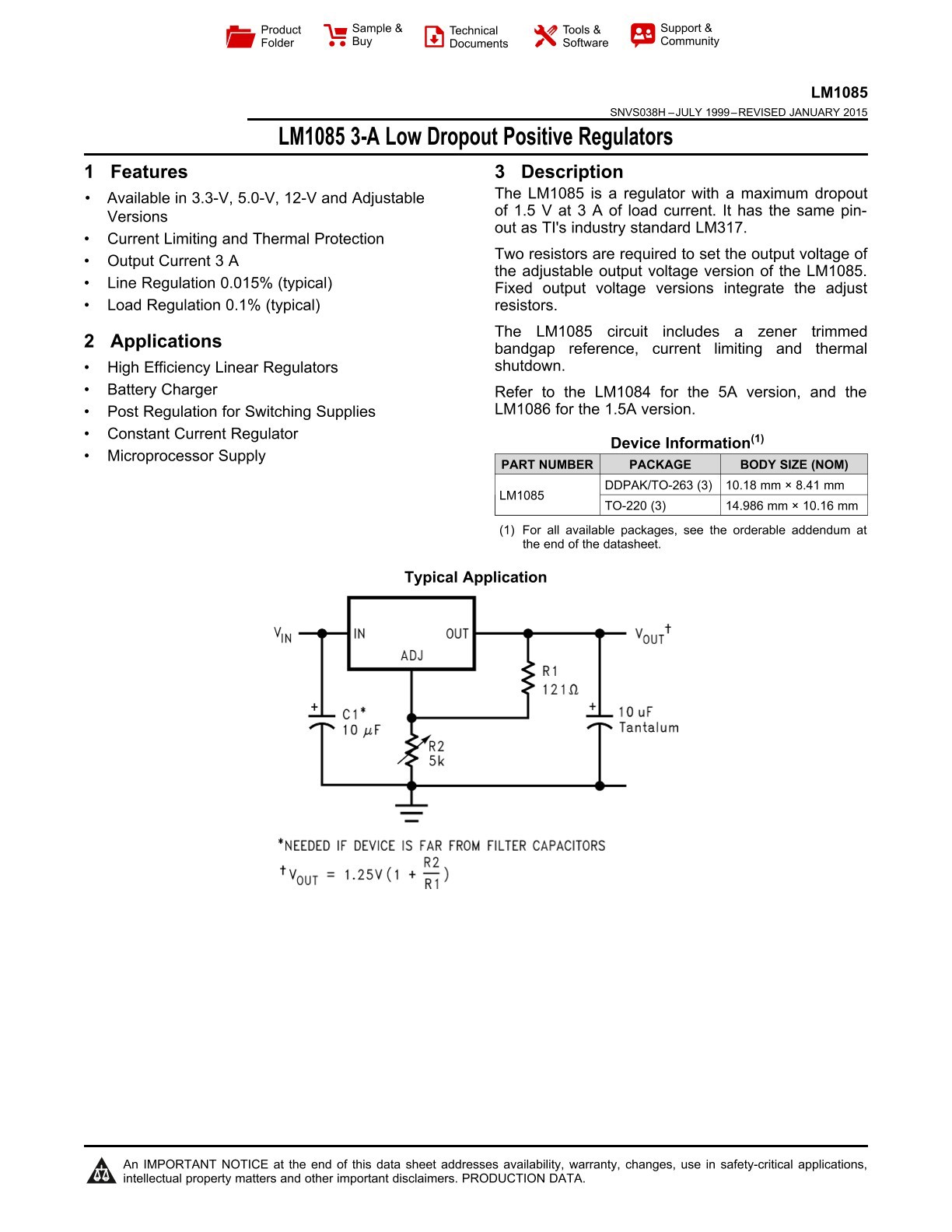

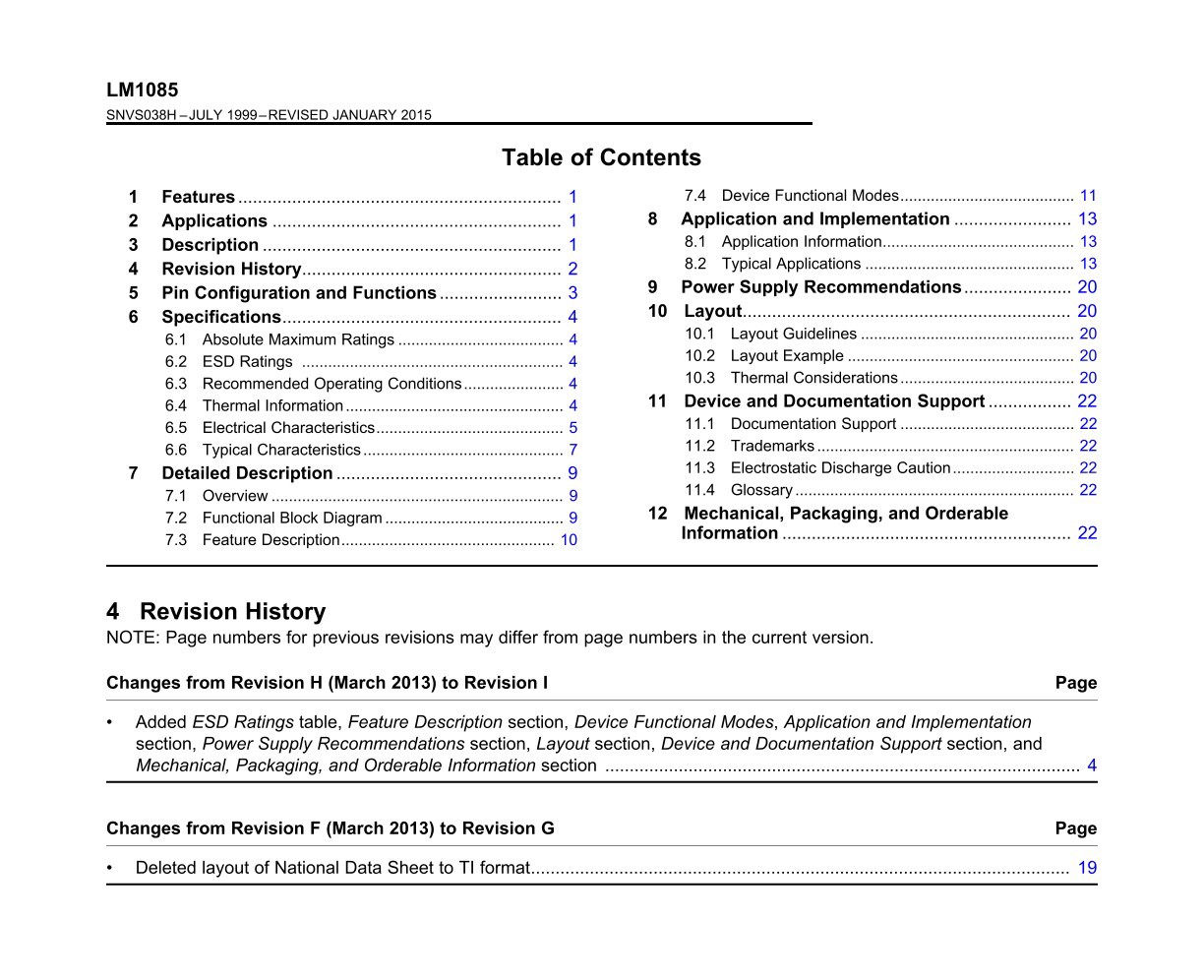

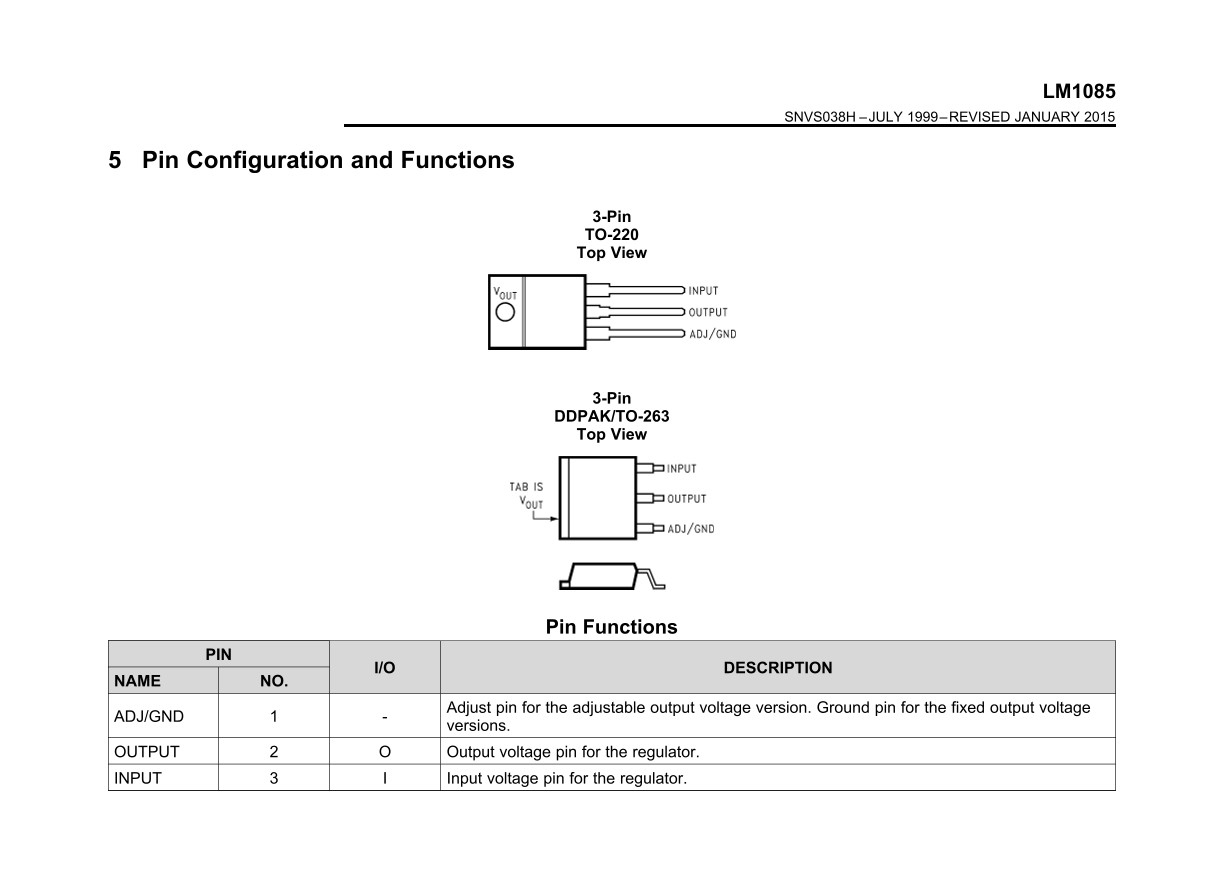

Product datasheet
For more information, please download
