Hot sale Original TPS74801DRCT IC REG LIN POS ADJ 1.5A 10VSON Linear Voltage Regulator IC Positive Adjustable 1 Output_Integrated Circuit

Product Details

Product Description:

The TPS74801DRCT is a surface-mount, adjustable linear voltage regulator . This PMIC (Power Management IC) is designed to provide a stable output voltage of 3.6V with a high level of accuracy, making it suitable for a wide range of applications.

Features:

Accuracy: The TPS74801DRCT boasts an accuracy of 2% for the output voltage, ensuring reliable operation in various environments.
Control Features: The IC features enable, power good, and soft start control, allowing for precise management of the output voltage.
Protection Features: The regulator includes overcurrent, overtemperature, short-circuit, and under-voltage lockout (UVLO) protection to prevent damage and ensure safe operation.
Operating Temperature: The IC operates within a wide temperature range of -40°C to 125°C, making it suitable for use in various environments.
Applications:

Primary Applications: The TPS74801DRCT is ideal for use in applications such as:
Power supplies
DC-DC converters
Point-of-load (POL) regulators
Power management systems
Secondary Applications: The IC can also be used in other applications such as:
Automotive systems
Industrial control systems
Medical devices
Aerospace and defense systems

Product Description

Type	Description
ANSC PART#	ANSC - TPS74801DRCT
Category	Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Mfr	/
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.6V
Voltage Dropout (Max)	0.16V @ 1.5A
Current - Output	1.5A
PSRR	50dB ~ 30dB (1kHz ~ 300kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	10-VFDFN Exposed Pad
Supplier Device Package	10-VSON (3x3)
Base Product Number	TPS74801

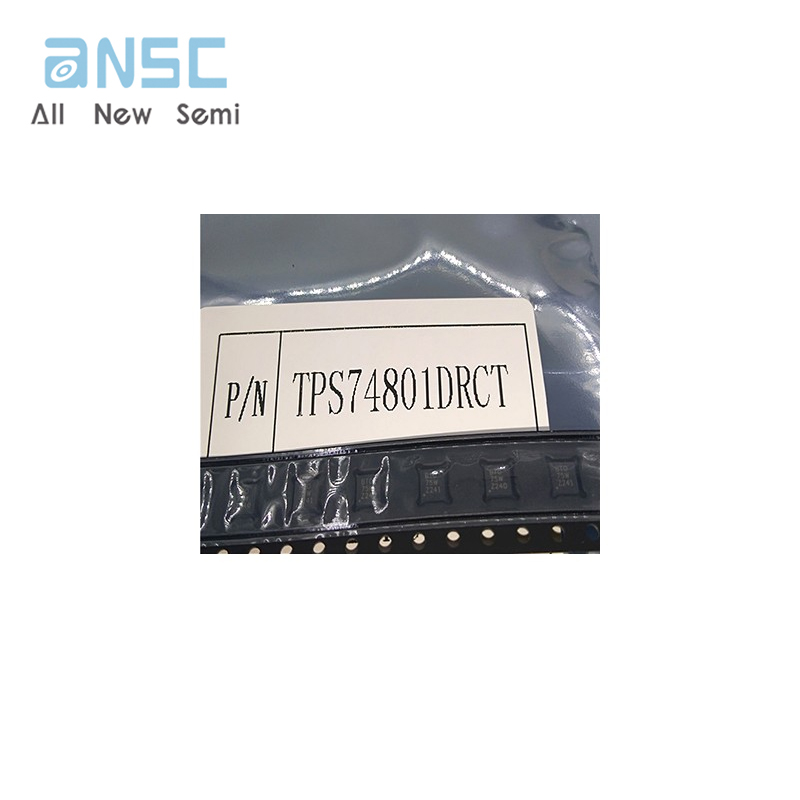

Actual image of the product

TPS74801DRCT

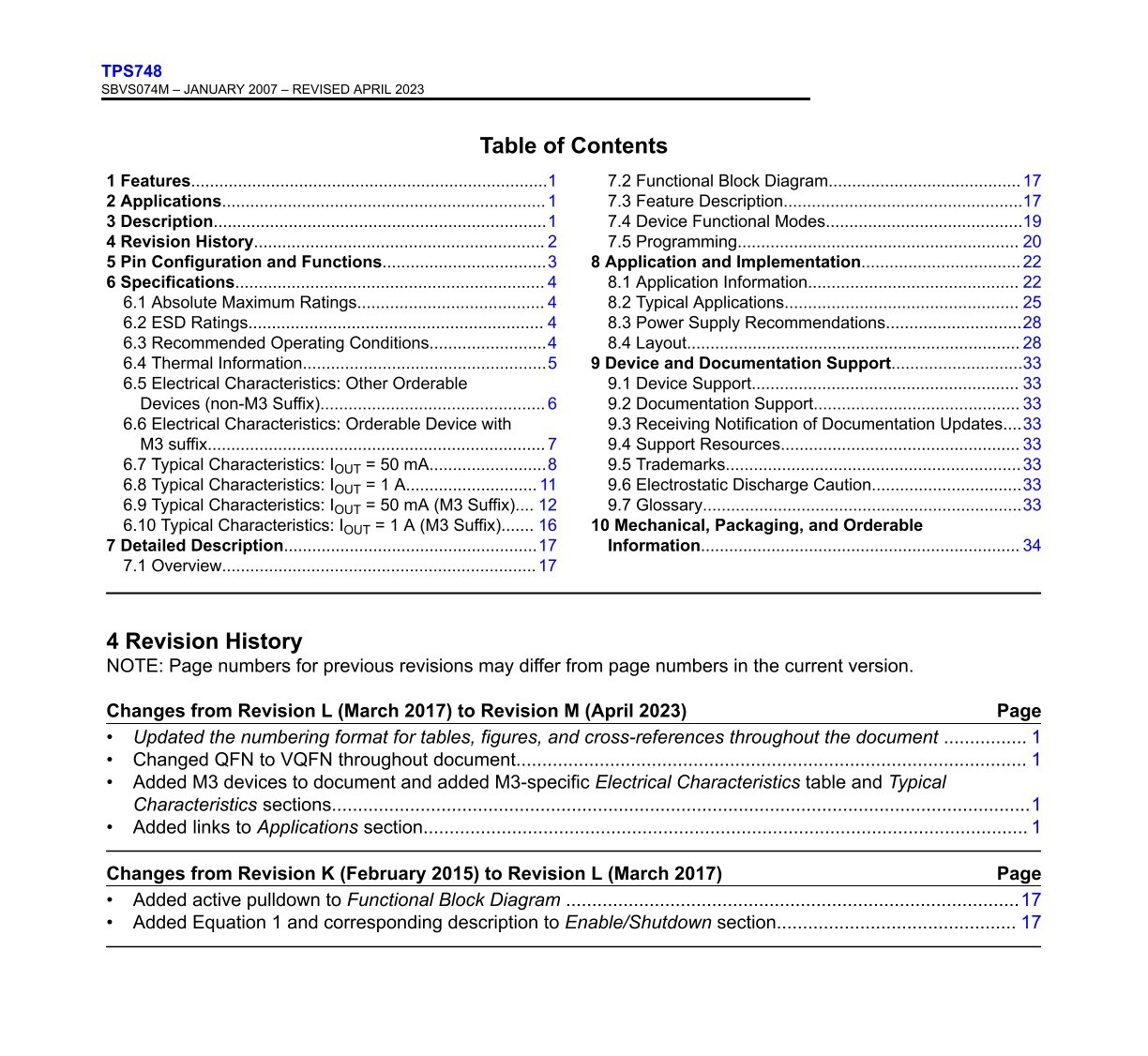

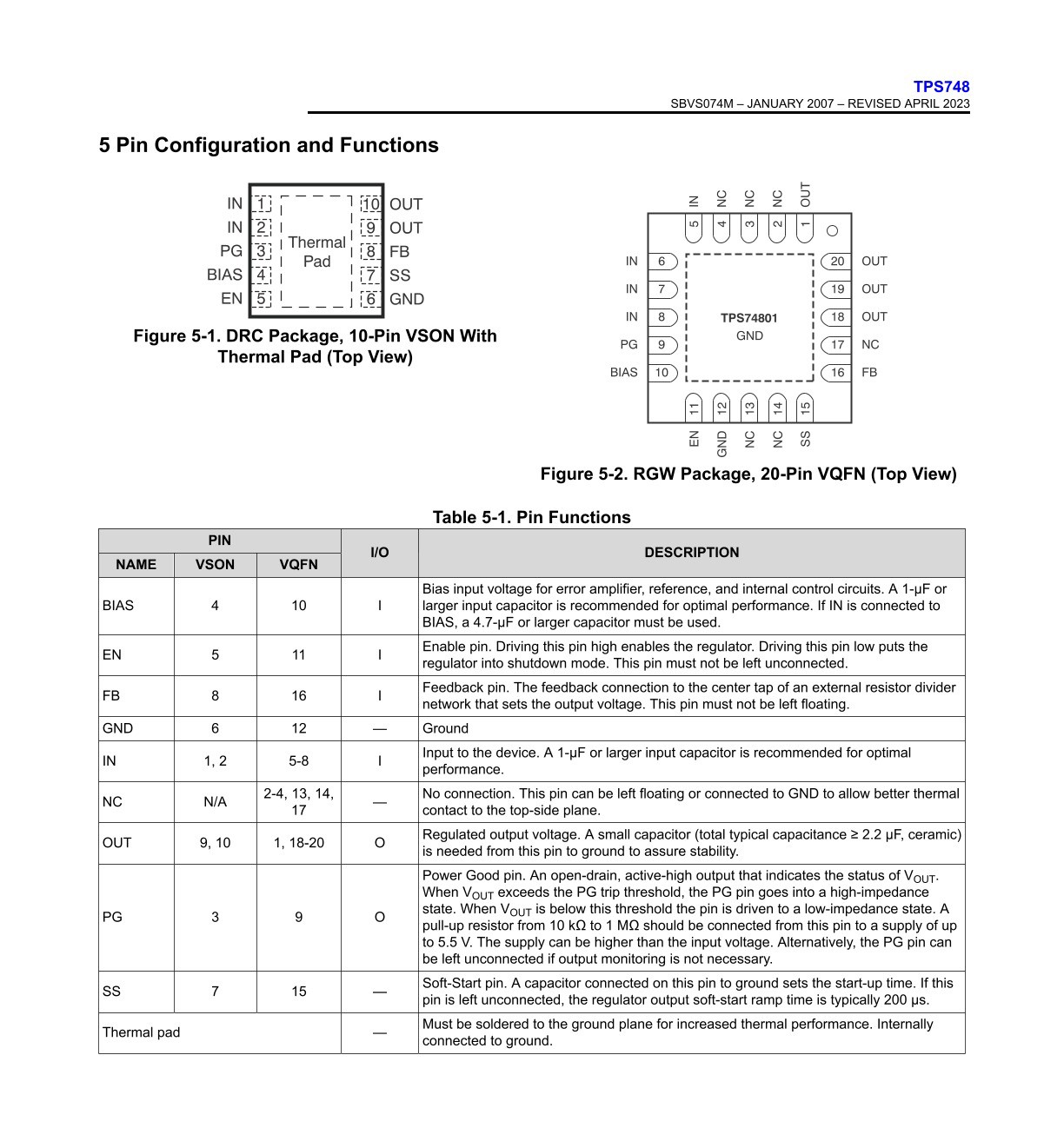

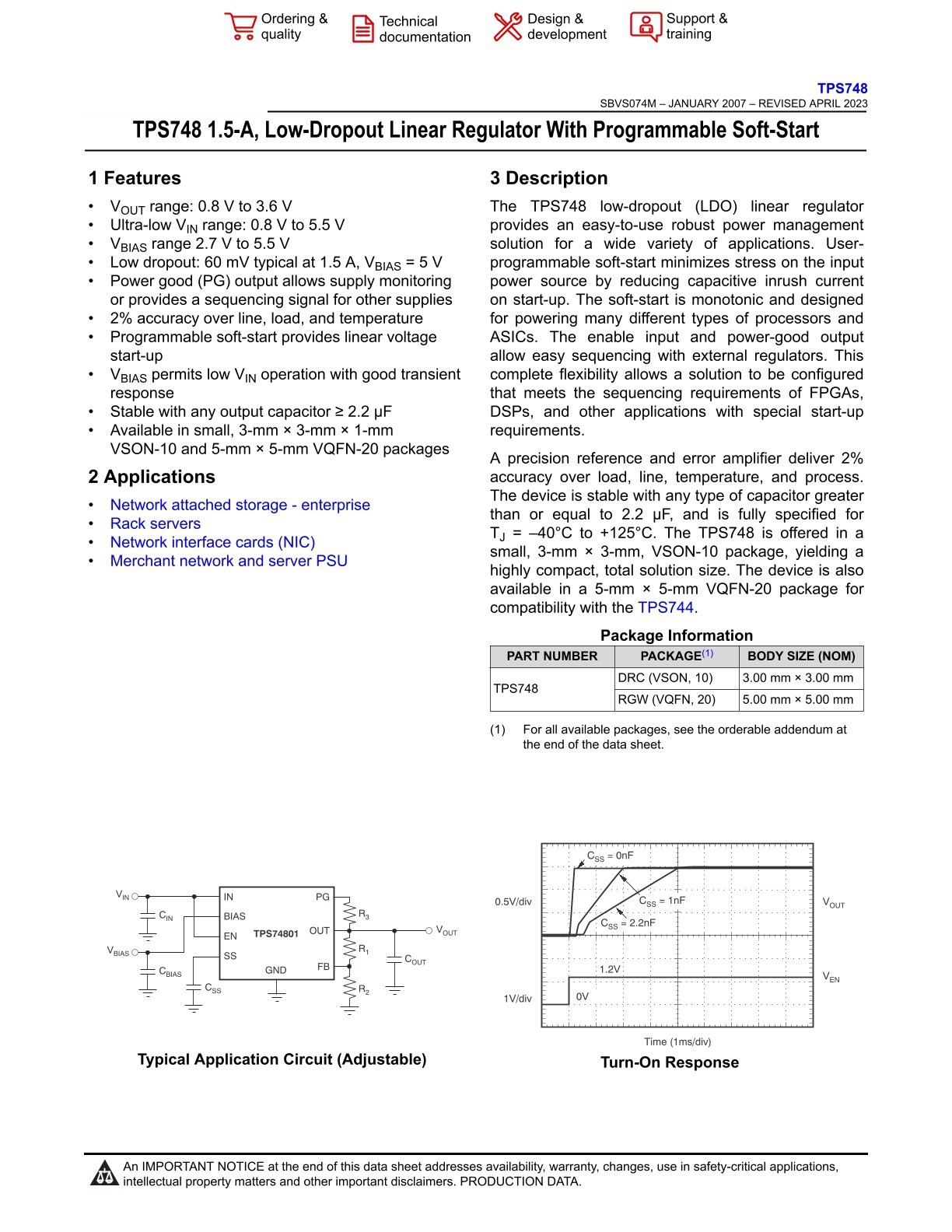

Product datasheet

For more information, please download

TPS74801DRCT (1)

TPS74801DRCT (2)

TPS74801DRCT (3)
