Hot sale Original TPS62175DQCT IC Buck, Buck-Boost Switching Regulator IC Positive or Negative Adjustable 1V 1 Output_Integrated Circuit

Product Details

TPS62175DQCT Description
The TPS62175DQCT is a high efficiency synchronous Step-down DC/DC Converter, based on the DCS-Control™ topology. With a wide operating input voltage range of 4.75 to 28V, the device is ideally suited for systems powered from multi cell Li-ion as well as 12V and even higher intermediate supply rails, providing up to 500mA output current. The TPS62175DQCT automatically enters power save mode at light loads, to maintain high efficiency across the whole load range. As well, it features a sleep mode to supply applications with advanced power save modes like ultra low power micro controllers. The power good output may be used for power sequencing and/or power on reset. The device features a typical quiescent current of 22µA in normal mode and 4.8µA in sleep mode. In sleep mode, the efficiency at very low load currents can be increased by as much as 20%. In shutdown mode, the shutdown current is less than 2µA and the output is actively discharged.

TPS62175DQCT Features
DCS-Control™ topology
4.8µA (sleep mode) Typical quiescent current
100% Duty cycle mode
Active output discharge
Power good output
Seamless power save mode transition
Under-voltage lockout
Short-circuit protection
Over-temperature protection
Green product and no Sb/Br

TPS62175DQCT Applications
Power Management, Computers & Computer Peripherals, Portable Devices, Industrial, Sensing & Instrumentation

Product Description

Type	Description
ANSC PART#	ANSC - TPS62175DQCT
Category	Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators
Mfr	/
Series	DCS-Control™
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Function	Step-Down
Output Configuration	Positive or Negative
Topology	Buck, Buck-Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.75V
Voltage - Input (Max)	28V
Voltage - Output (Min/Fixed)	1V
Voltage - Output (Max)	6V
Current - Output	500mA
Frequency - Switching	1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-WSON (3x2)
Base Product Number	TPS62175

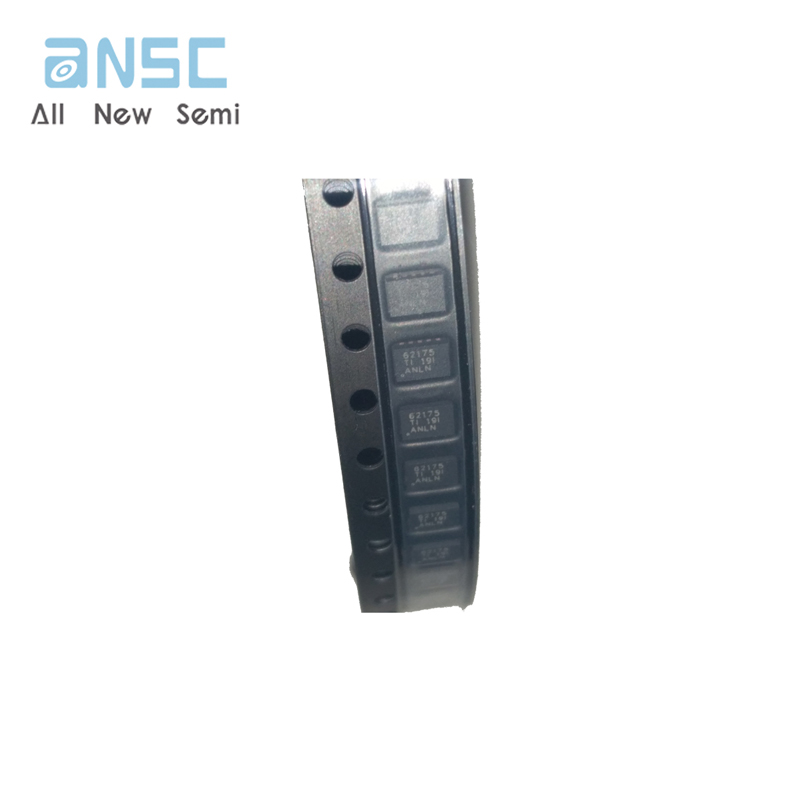

Actual image of the product

TPS62175DQCT

Product datasheet

For more information, please download

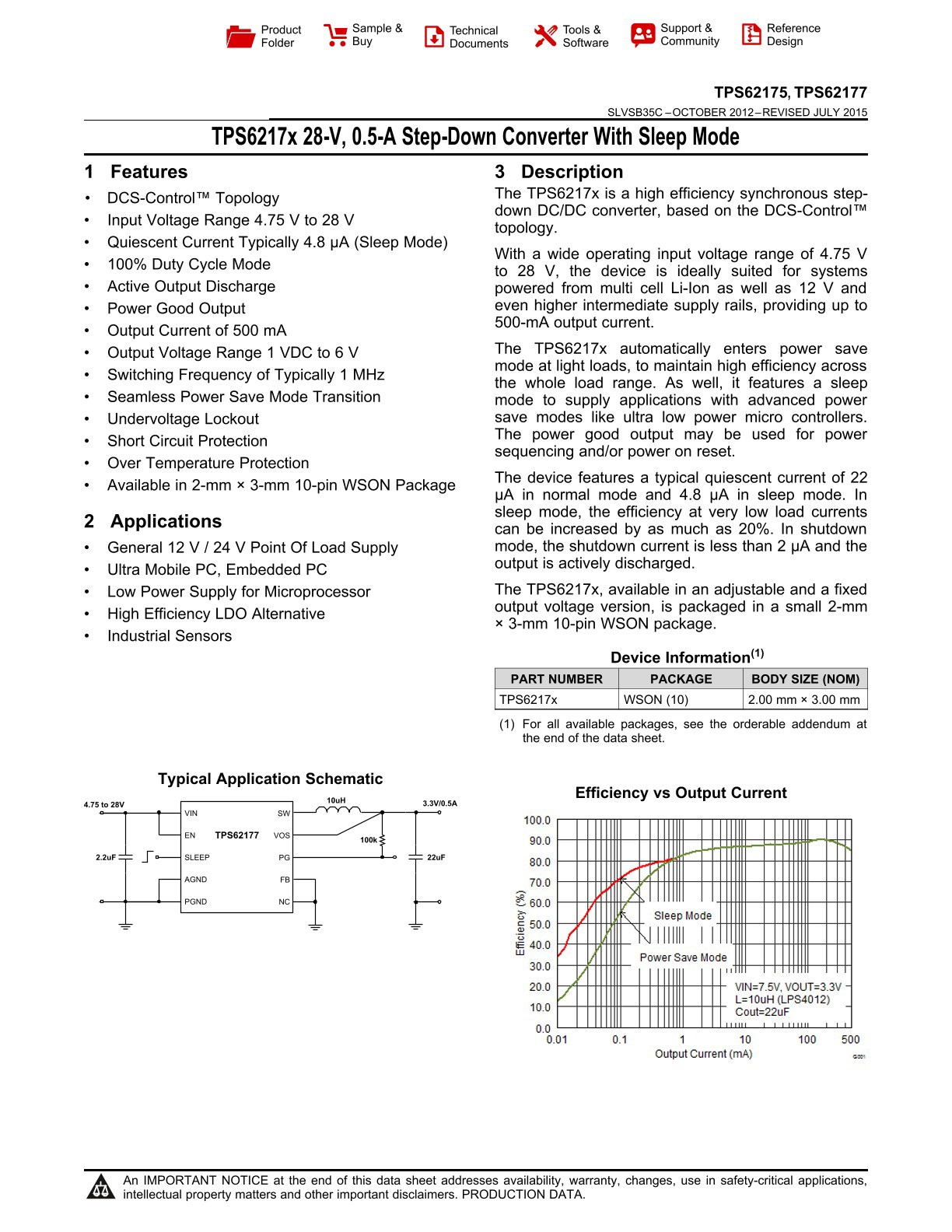

TPS62175DQCT (1)

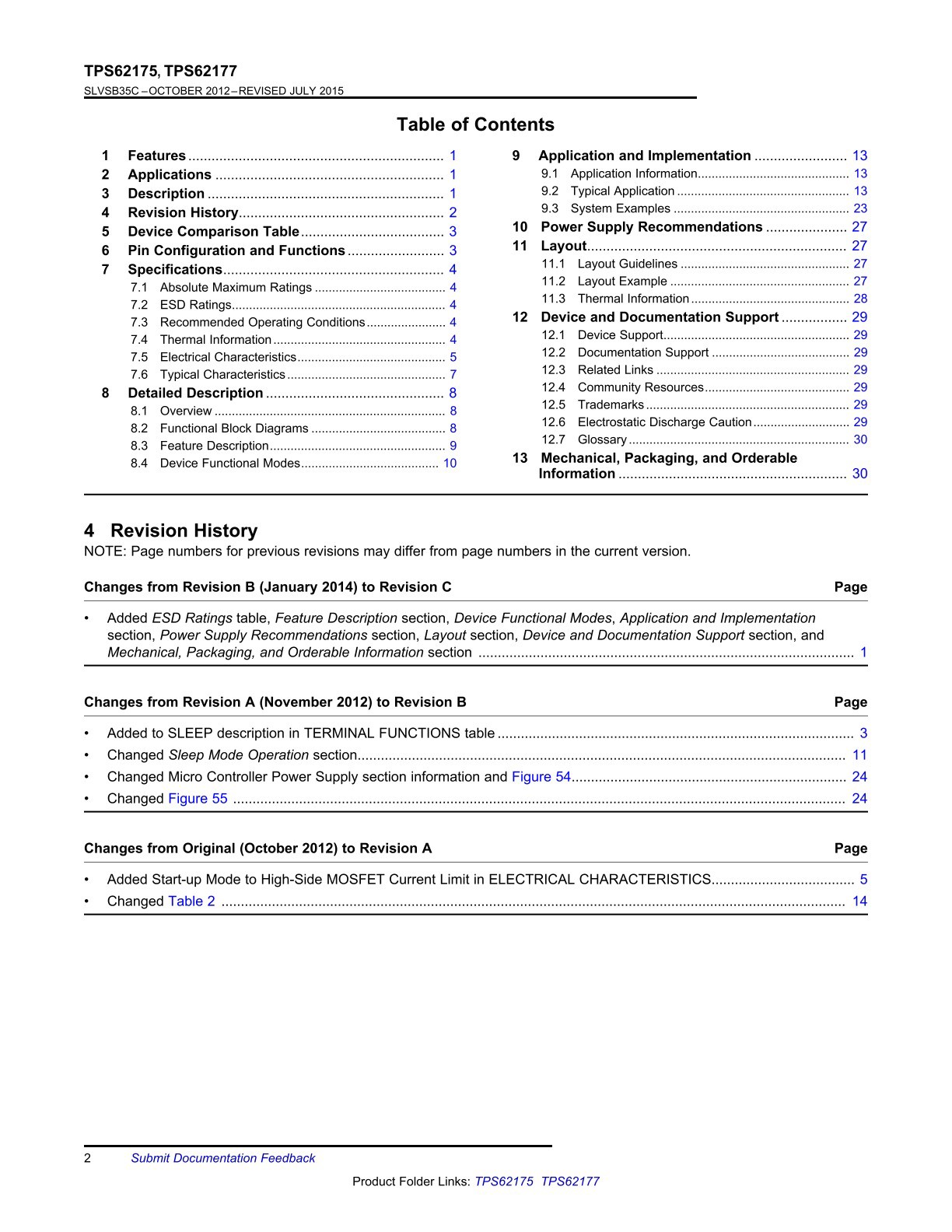

TPS62175DQCT (2)

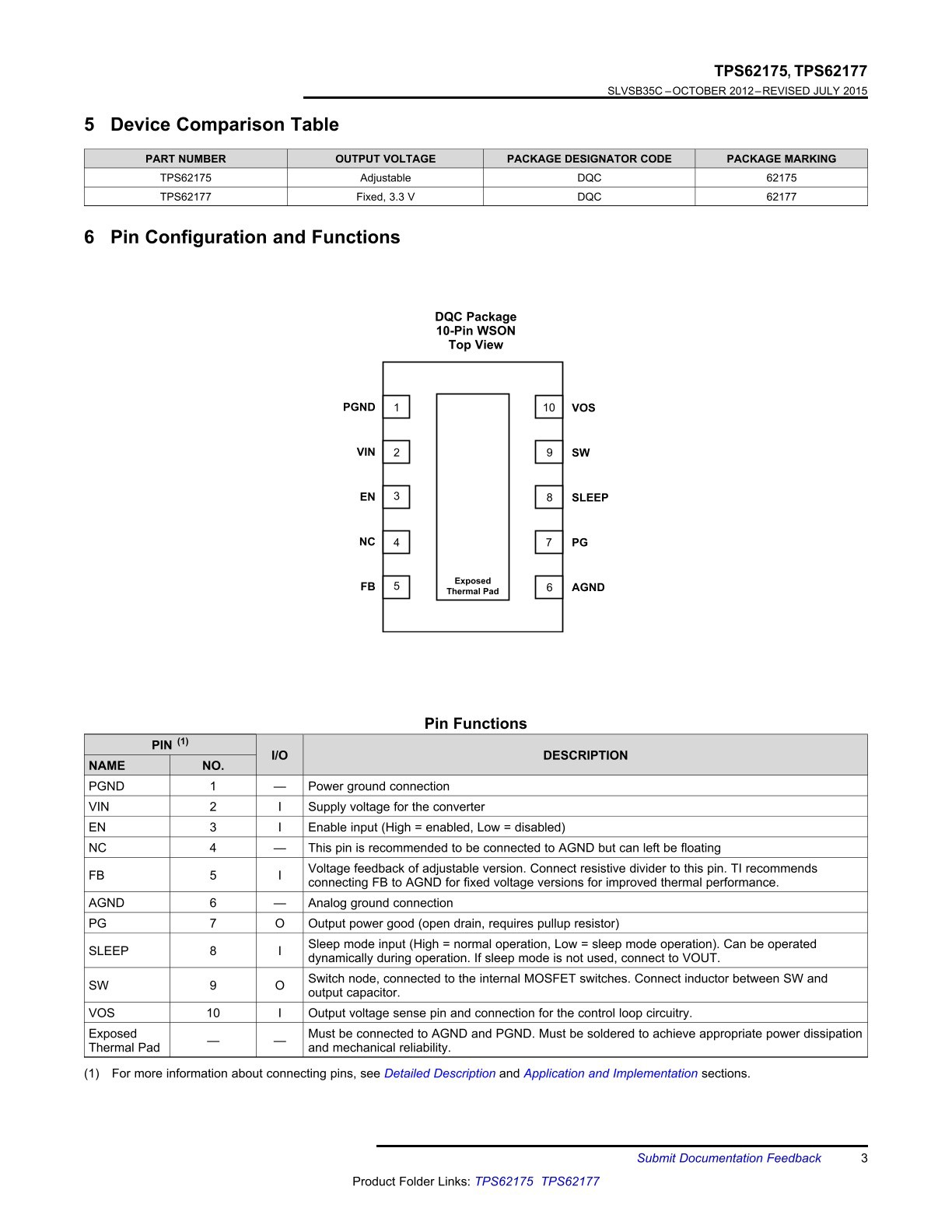

TPS62175DQCT (3)
