UC2846N Overview It comes in the 16-DIP (0.300, 7.62mm) package, which makes switching controller suitable for most applications. It is sufficient to generate 2 outputs with this dc motor controller. Packaging for the pmic consists of Tube solid enclosures. The program can handle Transistor Driver dc switching's outputs (s). dc control's supply and operating voltages are 6.95V~40V. Qualified to work in an dc switcher with -40°C~85°C TA. The switching controller can be switched at 500kHz. dc dc regulators can be carried out with Through Hole. Current Limit, Enable, Frequency Control, Soft Start provides dcdc regulator efficient switching control. The switch converters are connected to an analog IC with a SWITCHING CONTROLLER output. There are a DUAL terminal on the switching converters. Different dc switching's functions can be applied to 16 terminations. Some of the control techniques adapted by these dc dc converter ics include PULSE WIDTH MODULATION. DC switcher's voltage input of 15V. UC2846 can be searched for other relevant dc to dc converter ics. In total, switching converter has 16 pins. Statistically, DC regulator outputs 13.5V volts. In most cases, the output current of the dc dc regulator will be 500mA, so note that when you start the project. Power-up and power-down reliability is ensured voltage regulator dc to dc by setting the maximum duty cycle to 50 %. 450kHz is the frequency of the switching controller. 15V is the nominal working voltage. UC2846N Features Transistor Driver Outputs Switching Frequency: 500kHz Current Limit, Enable, Frequency Control, Soft Start PULSE WIDTH MODULATION Max Duty Cycle: 50 % Frequency: 450kHz UC2846N Applications There are a lot of Texas Instruments UC2846N DC to DC converter applications. Linear guide Ball screw pair Computer application technology Network technology Automation technology CMM Various precision measuring instruments Various precision measuring detectors Flaw detection equipment Balance equipment |
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - UC2846N |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers |
|
Manufacturer |
/ |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Output Type |
Transistor Driver |
|
Function |
Step-Up, Step-Up/Step-Down |
|
Output Configuration |
Positive |
|
Topology |
Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
|
Number of Outputs |
2 |
|
Output Phases |
1 |
|
Voltage - Supply (Vcc/Vdd) |
6.95V ~ 40V |
|
Frequency - Switching |
500kHz |
|
Duty Cycle (Max) |
50% |
|
Synchronous Rectifier |
Yes |
|
Clock Sync |
Yes |
|
Serial Interfaces |
- |
|
Control Features |
Current Limit, Enable, Frequency Control, Soft Start |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Through Hole |
|
Package / Case |
16-DIP (0.300", 7.62mm) |
|
Supplier Device Package |
16-PDIP |
|
Base Product Number |
UC2846 |

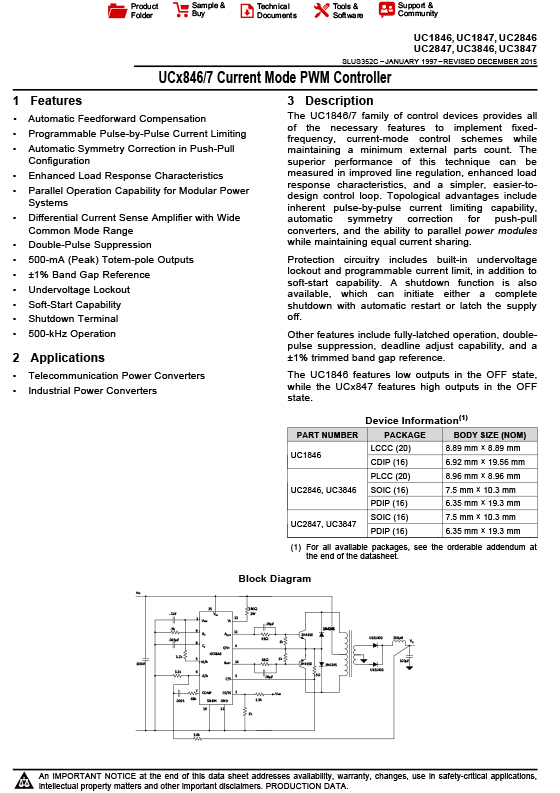

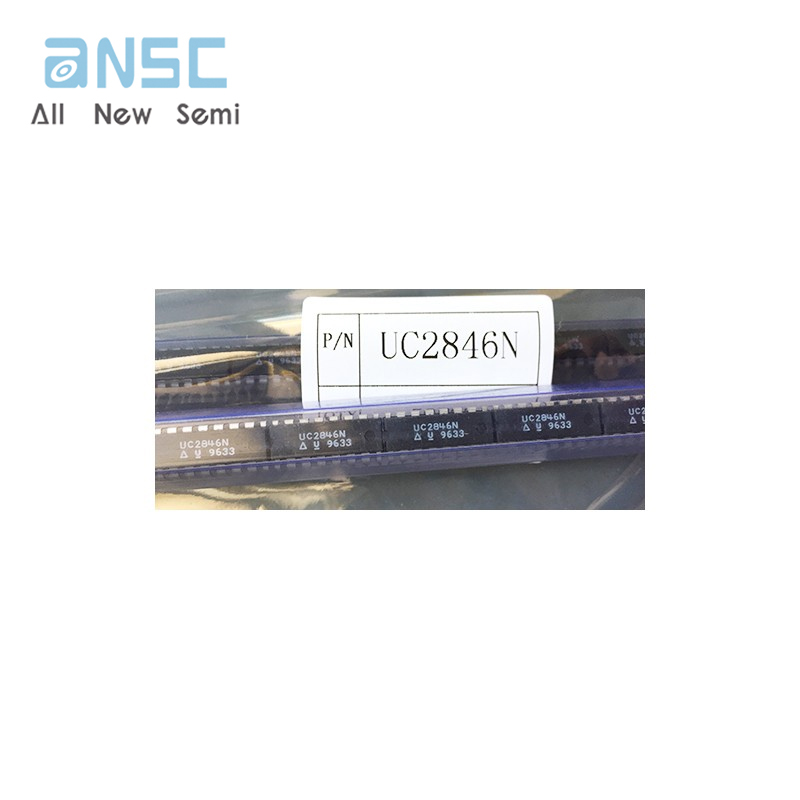

Actual image of the product

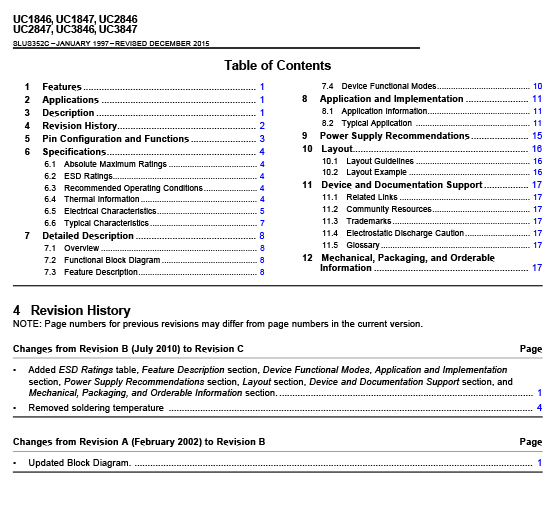

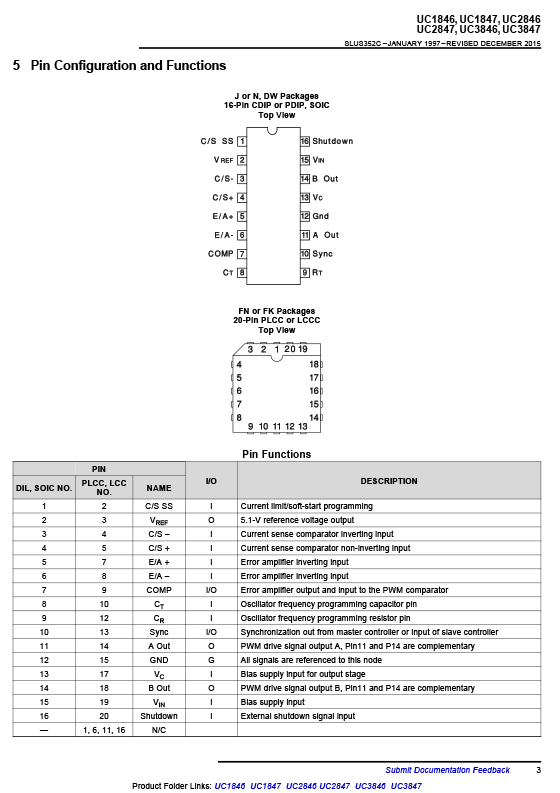

Product datasheet
