Product Description: TPS92630QPWPRQ1 LED Driver IC
The TPS92630QPWPRQ1 is a highly efficient and reliable LED driver IC, specifically tailored for automotive applications. This 16-pin PowerTSSOP package integrates multiple functions into a single device, making it an ideal solution for various lighting systems in vehicles. The IC supports both analog and PWM dimming methods, ensuring precise control over LED brightness.
Product Features
High Efficiency: Optimized for low power consumption, the TPS92630QPWPRQ1 minimizes quiescent current to 600μA.
Wide Operating Range: Operates between -40°C and 125°C, making it suitable for a wide range of automotive environments.
Multiple Outputs: Provides up to three outputs with a maximum output current of 150mA per channel and a total output current of 450mA.
Dimming Capabilities: Supports both analog and PWM dimming for flexible control over LED brightness.
Lead-Free and RoHS Compliant: Meets the latest environmental standards with lead-free plating and ROHS3 compliance.
Surface Mount Package: Available in a 16-PowerTSSOP package with a width of 4.4mm, facilitating easy integration into modern PCB designs.
Product Applications
The TPS92630QPWPRQ1 is primarily designed for automotive applications, including: - Interior Lighting: Headlights, taillights, dashboard indicators, and interior ambient lighting. - Exterior Lighting: Front and rear fog lights, turn signals, and brake lights. - Secondary Applications: Can also be used in industrial lighting systems where high reliability and efficiency are crucial.
Embedded Modules
The TPS92630QPWPRQ1 is often used in various embedded modules designed for automotive electronics: - Automotive Infotainment Systems: Integrates with infotainment systems to provide high-quality lighting for dashboard displays. - Advanced Driver Assistance Systems (ADAS): Used in ADAS modules to enhance safety features with precise lighting control. - Vehicle Information Systems: Enhances the visibility of critical information such as navigation screens and warning indicators.
In summary, the TPS92630QPWPRQ1 is a robust and versatile LED driver IC that meets the stringent requirements of automotive electronics while offering flexibility in its applications beyond the automotive sector. Its high efficiency, wide operating range, and multiple output capabilities make it an excellent choice for various lighting systems in vehicles and industrial settings.
Product Description
| Type | Description |
| ANSC PART# | ANSC- TPS92630QPWPRQ1 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Manufacturer | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 3 |
| Voltage - Supply (Min) | 5V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | 4V ~ 75V |
| Current - Output / Channel | 150mA |
| Frequency | - |
| Dimming | Analog, PWM |
| Applications | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-HTSSOP |
| Base Product Number | TPS92630 |
Actual image of the product

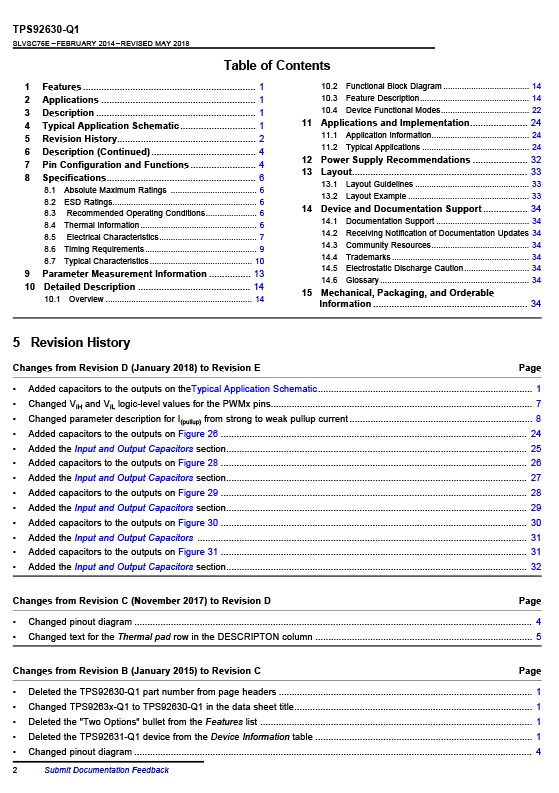

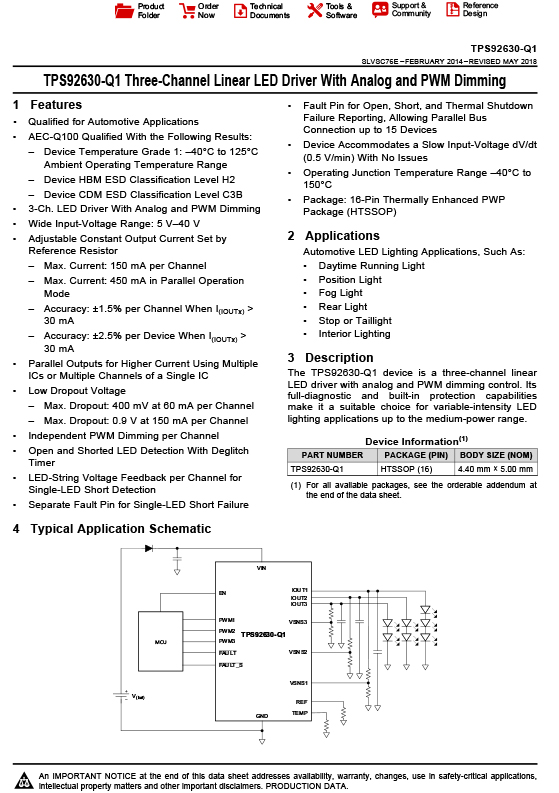

Product datasheet
For more information, please download
