Product Description
The A3982SLBTR-T is a complete stepper motor driver with a built-in translator for easy operation. It is designed to operate bipolar stepper motors in full- and half-step modes, with an output drive capacity of up to 35 V and ±2 A. The A3982SLBTR-T includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes. Simply inputting one pulse on the STEP input drives the motor one step. There are no phase sequence tables, high-frequency control lines, or complex interfaces to program. The A3982SLBTR-T interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
Product Features
Low RDS(on) outputs
Automatic current decay mode detection/selection
Mixed and Slow current decay modes
Synchronous rectification for low-power dissipation
Internal UVLO and thermal shutdown circuitry
Crossover-current protection
Product Applications
Automotive
Infotainment & cluster
Industrial
Pro audio, video & signage
Personal electronics
Gaming
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - A3982SLBTR-T |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Motor Drivers, Controllers |
|
Manufacturer |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Motor Type - Stepper |
Bipolar |
|
Motor Type - AC, DC |
- |
|
Function |
Driver - Fully Integrated, Control and Power Stage |
|
Output Configuration |
Half Bridge (4) |
|
Interface |
Logic |
|
Technology |
DMOS |
|
Step Resolution |
1, 1/2 |
|
Applications |
General Purpose |
|
Current - Output |
2A |
|
Voltage - Supply |
3V ~ 5.5V |
|
Voltage - Load |
8V ~ 35V |
|
Operating Temperature |
-20°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
24-SOIC (0.295", 7.50mm Width) |
|
Supplier Device Package |
24-SOIC |
|
Base Product Number |
A3982 |

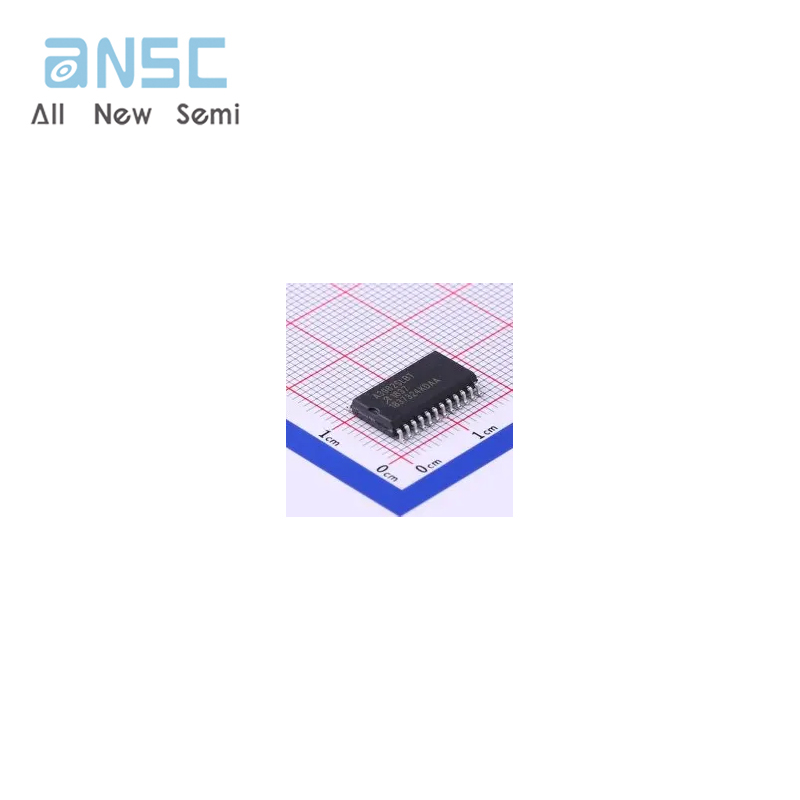

Actual image of the product
