Hot sale Original BTM7740G IC Buffer/Inverter Based Peripheral Driver 4 Driver 15A MOS PDSO28 GREEN PLASTIC 28 PIN_Integrated Circuit 2

Product Description

Product Overview
BTM7740G is part of the TrilithIC family of products that integrate three chips in a single package: a dual high-end switch and two low-end switches. The drain of the three vertical DMOS chips is mounted on separate lead frames. The source is connected to individual pins, so BTM7740G can be used with H-bridges and any other configuration. BTM7740G's dual high-end switches and two low-end switches are manufactured using SMART SIPMOS technology, which combines a vertical DMOS power stage with low on-resistance (RDSON) with CMOS circuitry for control, protection, and diagnostics.

Product characteristics
Four-way D-MOS switch driver
Freely configurable as a bridge or four-way switch
Optimized for DC motor management applications
Low On-Resistance (RDS ON)
High-end: 110 mΩ (@25°C) typical, 270 mΩ (@150°C) max
Low end: 100 mΩ (@25°C) typical, 230 mΩ (@150°C) max
Peak Current: 8A Typical (@25°C)
Very low quiescent current: 5 μA (@25°C) typical
Small, power-boosted PG-DSO package
Operating voltages up to 40 V
PWM frequencies up to 1 kHz
Status Sign Diagnosis
Short-circuit protection
Overtemperature shutdown with hysteresis function
Internal clamp diode
Undervoltage detection with hysteresis

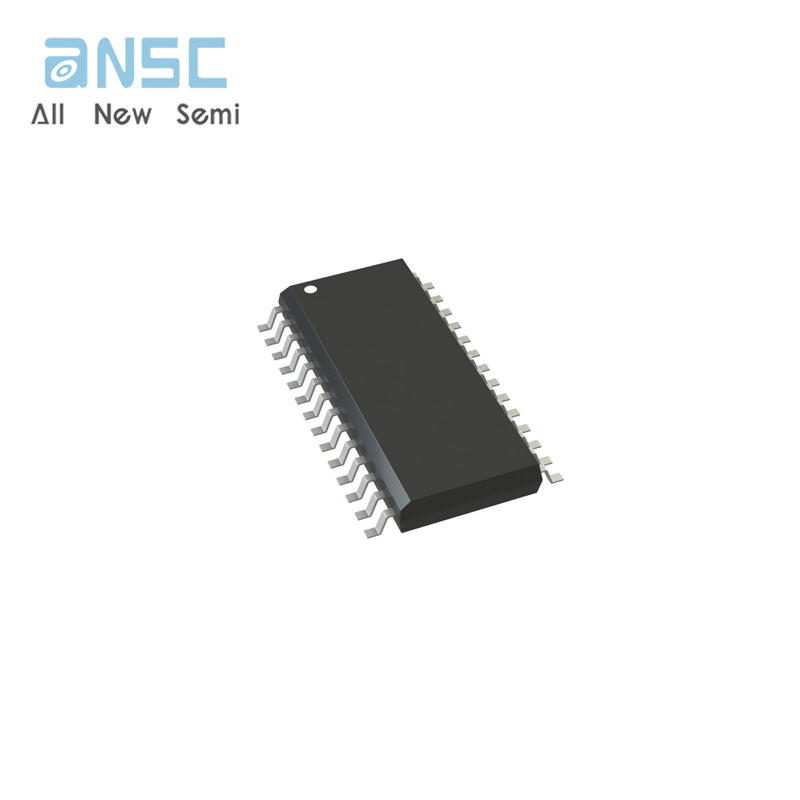

Actual image of the product

BTM7740G
