Product Description
The CC2640F128RGZR is a highly integrated, low-power, and high-performance RF transceiver IC , designed for Bluetooth v5.1 applications. This device is part of the SimpleLink? family and combines a 2.4GHz RF transceiver with a microcontroller unit (MCU) in a single package. The CC2640F128RGZR is optimized for low power consumption, making it suitable for battery-powered devices.
Product Features
Low Power Consumption: The device operates at a current consumption of 5.9mA to 6.1mA in receiving mode and 6.1mA to 9.1mA in transmitting mode.
High-Speed Data Transfer: Supports data rates up to 1Mbps.
Large Memory: Equipped with 128kB of flash memory and 28kB of SRAM.
Multiple Interfaces: Offers I2C, SPI, UART, I2S, JTAG, and other serial interfaces for easy integration.
Bluetooth v5.1 Compliance: Ensures compatibility with the latest Bluetooth standards.
Small Form Factor: Available in a 48-VQFN exposed pad package with a compact size of 7mm x 7mm.
Product Applications
Primary Applications:
Wireless audio streaming devices
Wireless sensor networks
IoT devices
Secondary Applications:
Wireless medical devices
Wireless industrial control systems
Wireless home automation systems
Product Description
| Type | Description |
| ANSC PART# | ANSC- CC2640F128RGZR |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | - |
| Series | SimpleLink™ |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.1 |
| Modulation | DSSS, O-QPSK, GFSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 5dBm |
| Sensitivity | -97dBm |
| Memory Size | 128kB Flash, 28kB SRAM |
| Serial Interfaces | I2C, I2S, JTAG, SPI, UART |
| GPIO | 31 |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 5.9mA ~ 6.1mA |
| Current - Transmitting | 6.1mA ~ 9.1mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) |
| Base Product Number | CC2640 |

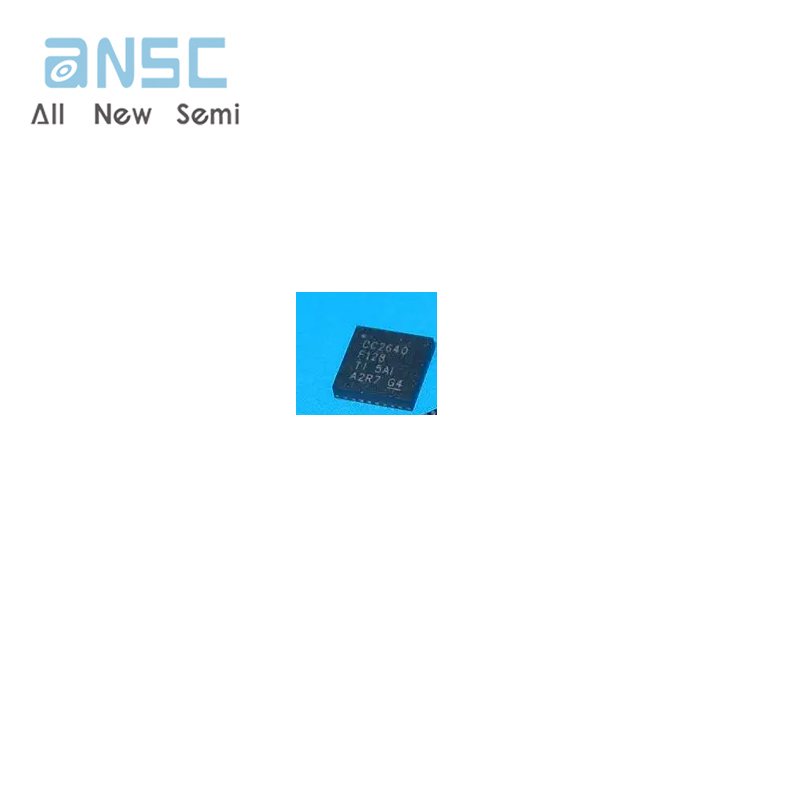

Actual image of the product
