Product Description: MIC4420YN Gate Driver IC
1. Description
The MIC4420YN is a low-side gate driver IC, specifically tailored for driving N-channel and P-channel MOSFETs. This integrated circuit is part of the PMIC - Gate Drivers category, making it an essential component in various industrial and automotive applications. The MIC4420YN operates within a wide supply voltage range of 4.5V to 18V, ensuring flexibility in system design.
Product Features
High Current Capability: The MIC4420YN can handle peak output currents of up to 6A, making it suitable for high-power applications.
Low-Side Driver Configuration: Designed as a low-side driver, this IC is ideal for applications where the gate driver needs to be connected to the source of the MOSFET.
Fast Propagation Delay: With a typical propagation delay of 75 ns and rise/fall times of 12 ns and 35 ns respectively, the MIC4420YN ensures fast switching times.
High Power Dissipation: The IC can dissipate up to 960W of power, making it robust for demanding applications.
Lead-Free and RoHS3 Compliant: Manufactured using lead-free processes and compliant with ROHS3 standards, ensuring environmental safety.
Industrial Grade: Designed for industrial-grade usage with an operating temperature range of -40°C to 150°C TJ.
Product Applications
The MIC4420YN gate driver IC is primarily used in: - Motor Control Systems: For driving high-power motors in industrial automation, robotics, and automotive systems. - Power Supplies: In DC-DC converters and other power supply circuits where fast switching times are critical. - Automotive Electronics: In vehicle control systems such as ignition systems, fuel pumps, and other high-reliability applications. - Renewable Energy Systems: For driving inverters in solar panel systems.
Secondary applications include: - Audio Equipment: In audio amplifiers where high current handling is required. - Medical Devices: In medical equipment requiring precise control over high-power devices.
Product Description
| Type | Description |
| ANSC PART# | ANSC- MIC4420YN |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Manufacturer | - |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 12ns, 13ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Base Product Number | MIC4420 |

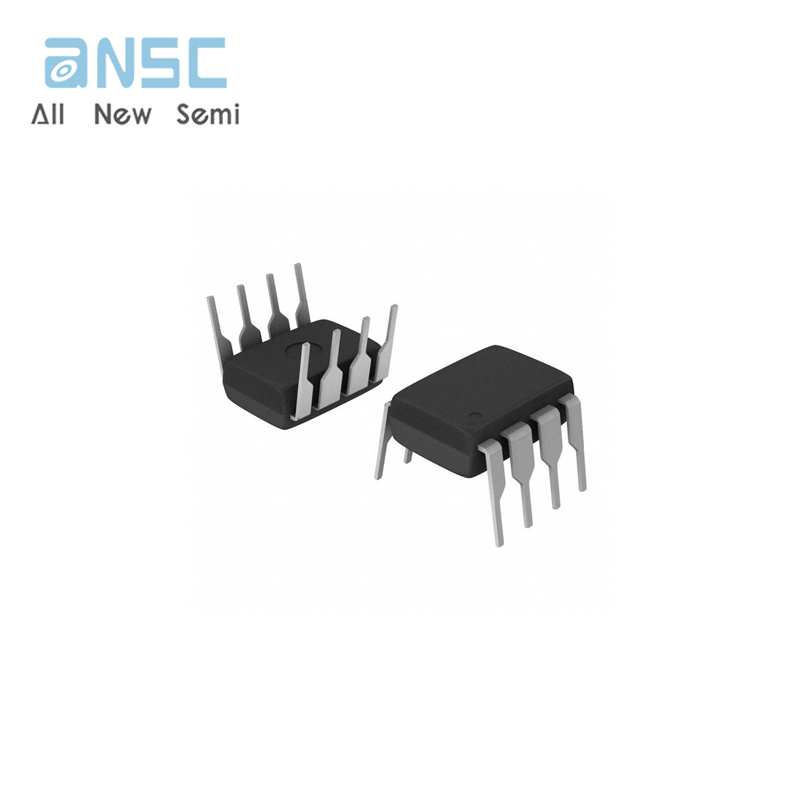

Actual image of the product
