Product Overview
The LED driver's packaged as a Tube.The 16-DIP (0.300, 7.62mm) package contains it.Through Hole is the mounting type of the LED driver.The switch type is Relay, Solenoid Driver.To ensure reliable operation, the temperature should be set to -40°C~125°C TJ.There is a default setting of 4 for output.The maximum output voltage is Bipolar volts.This object belongs to the NCV7601 family.It contains 16 terminations.For operation, 16 pins are used.The LED driver has 4 functions.The maximum output current drops to 1.8A in order to meet the operation criteria.A supply voltage of 5V leads to high efficiency.There are 16 pins in total on this board.It is set to 1.8A in this case.The maximum supply voltage is set to 5.5V.In order for the lighting driver to operate normally, the supply voltage (Vsup) should be maintained above 4V.This part has a power supply of 5V.
Product Features
Supplied from 5V
Product Applications
NCV7601P Power Switches ICs applications.
Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
Product Description
| Type | Description |
| ANSC PART# | ANSC- NCV7601P |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | - |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Type | Relay, Solenoid Driver |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:01 |
| Output Configuration | Low Side |
| Output Type | Bipolar |
| Interface | On/Off |
| Voltage - Load | 4V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 1.8A |
| Rds On (Typ) | - |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-PDIP |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Base Product Number | NCV7601 |

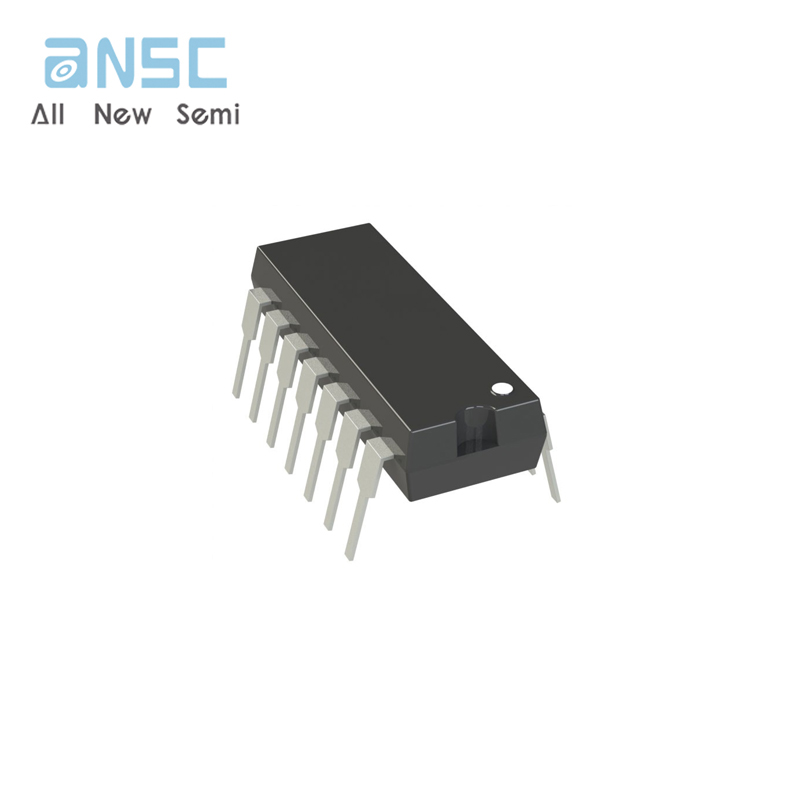

Actual image of the product
