Product Overview
In Tube, it is packaged. As a space-saving measure, it is included in the 8-DIP (0.300, 7.62mm) package. The mounting is done according to Through Hole. In order for the system to function properly, the temperature must be kept at -40°C~85°C. The device is an outstanding choice for Power Supply, Supervisor owing to its outstanding performance. As a result of the 3.5V~18V supply voltage, high efficiency is possible.
Product Features
8-DIP (0.300, 7.62mm) package
Mounting type of Through Hole
Product Applications
NJM2103D Power Supply Control ICs applications.
· Monogram lift
· Projector electric hanger lift
· Multimedia classroom
· Multi-purposed meeting room
· Command and control center
· Smart home
· User-available push-button control panel
· Computer monitor
· Touch screen
· Remote control
Product Description
| Type | Description |
| ANSC PART# | ANSC- NJM2103D |
| Ihs Manufacturer | - |
| Part Package Code | DIP |
| Package Description | DIP-8 |
| Pin Count | 8 |
| Samacsys Manufacturer | New Japan Radio |
| Adjustable Threshold | NO |
| Analog IC - Other Type | VOLTAGE DETECTOR |
| Length | 8.8 mm |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.7 mm |
| Supply Current-Max (Isup) | 0.7 mA |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN BISMUTH |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

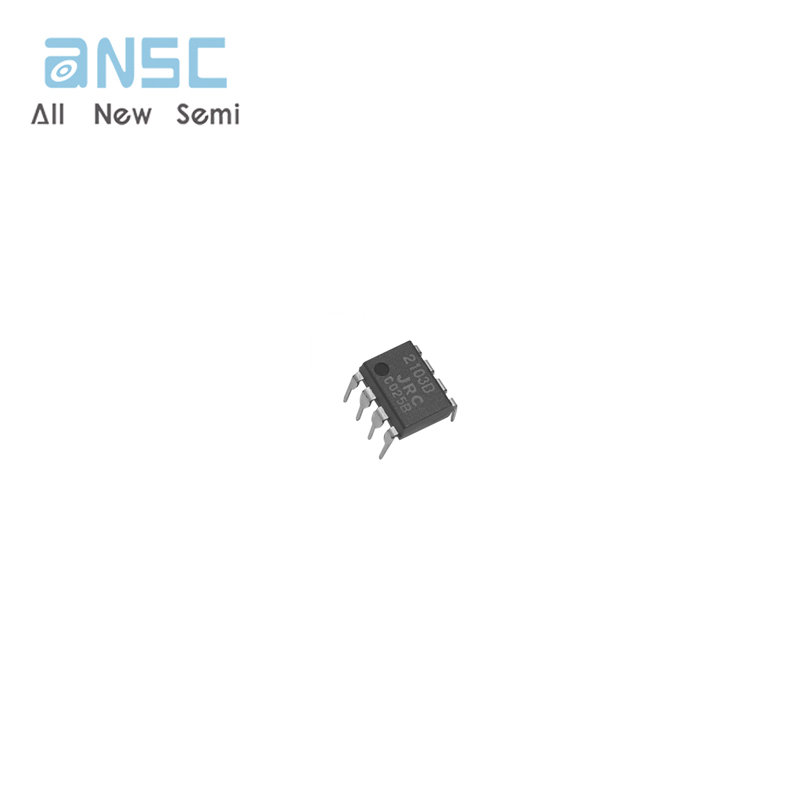

Actual image of the product
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
