Product Description

A 16-bit microcontroller with CISC architecture and a maximum frequency of 32MHz, the S912ZVCA19F0MLF is based on the S12Z CPU. The device has 28 general-purpose I/O pins, 192kB internal flash, 12kB internal RAM, and 16 channels of 12-bit A/D conversion. Incorporating a battery level (12V) voltage regulator, supply voltage monitoring, high voltage inputs, and a CAN physical interface, the MC9S12ZVC-family is a new product in the S12 MagniV family.

It focuses mostly on CAN nodes such as sensors, switchboards, and tiny actuators. To meet modern power consumption standards, it provides a variety of low-power modes and wakeup management. The MC9S12ZVC-Family presents an optimal solution with the integration of numerous critical system components into a single device, streamlining system design and realizing significant space savings. It is based on the increased performance, linear address space S12Z core.

Product Features

Up to 12 KB RAM (with ECC)

Vreg for 3.5 to 20-volt operating range, scalable in supply for on- and off-chip systems

CAN physical layer

Enhanced S12Z core at 32 MHz bus speed

Up to 192 KB Flash (with ECC)

2 KB EEPROM (with ECC)

12-bit resolution ADC

16ns resolution PWM and Timer

Product Applications

Industrial

3-Phase AC Induction Motor

Air Conditioning (AC)

Blood Glucose Management

Brushless DC Motor (BLDC) Control

Heat Metering

Motion Control and Robotics

Motor Drives

Permanent Magnet Synchronous Motor (PMSM)

Smart Power Socket and Light Switch

Vital Signs Monitors

Product Description

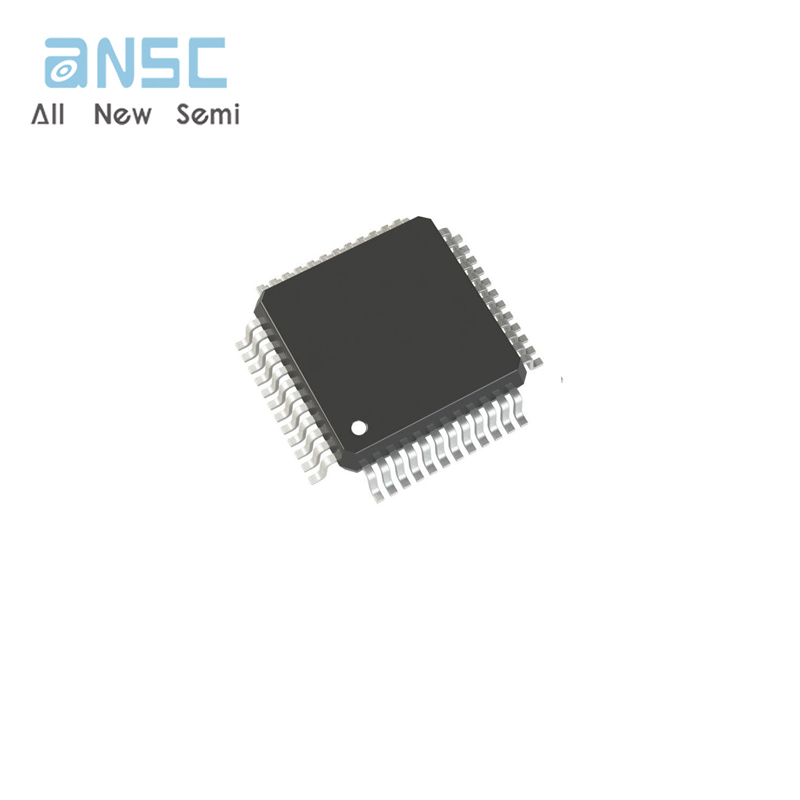

Actual image of the product
